HT3813 K1 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5100001 - HT3813-5199999) OIL PUMP (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

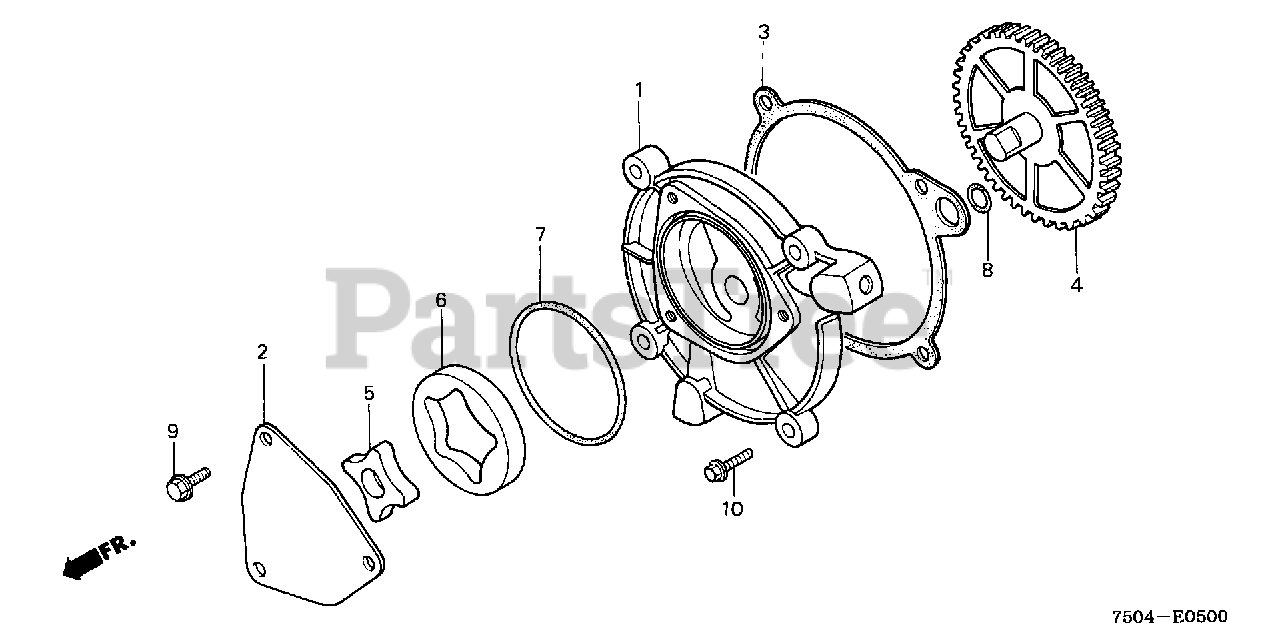

OIL PUMP (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 151A1-ZA0-000

BODY, OIL PUMP
(Superseded to 15111-ZA0-000)

$116.99

$

Usually ships in 3-6 days

0

2

Honda 15116-ZA0-000

COVER, OIL PUMP

$13.99

$

Usually ships in 3-6 days

0

3

Honda 15138-ZA0-010

SEE PART DETAILS - SUP; GASKET, OIL PUMP

Note: Use up to Engine SN 1186420.

$

$

Currently unavailable

3

Honda 15138-ZA0-020

SEE PART DETAILS - PRI; GASKET, OIL PUMP

$4.99

$

In Stock, Qty 6

0

3

Honda 15138-ZA0-020

SEE PART DETAILS - PRI; GASKET, OIL PUMP

$4.99

$

In Stock, Qty 6

0

3

Honda 15138-ZA0-305

SEE PART DETAILS - SUP; GASKET, OIL PUMP
(Superseded to 15138-ZA0-020)

$4.99

$

In Stock, Qty 6

0

3

Honda 15138-ZA0-305

SEE PART DETAILS - SUP; GASKET, OIL PUMP
(Superseded to 15138-ZA0-020)

Note: Use up to Engine SN 1186420.

$4.99

$

In Stock, Qty 6

0

4

Honda 15140-ZA0-000

GEAR ASSY., OIL PUMP

$40.99

$

In Stock, only 1 left!

0

5

Honda 15331-ZA0-000

ROTOR (INNER)

$19.99

$

Usually ships in 3-6 days

0

6

Honda 15332-ZA0-000

ROTOR (OUTER)

$23.99

$

Usually ships in 3-6 days

0

7

Honda 91301-679-003

SEE PART DETAILS - PRI; O-RING (45X2.5) (ARAI)

$6.49

$

In Stock, only 1 left!

0

7

Honda 91303-ZA0-000

SEE PART DETAILS - SUP; O-RING, PUMP COVER

$

$

Not available

8

Honda 15142-PH3-003

SEE PART DETAILS - PRI; O-RING (10.8X2.4) (ARAI)

$3.99

$

In Stock, only 1 left!

0

9

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

9

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

10

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0
