HT3813 K1 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5100001 - HT3813-5199999) IGNITION COIL + FLYWHEEL (HT3813/K1/4213) Parts Diagram

Lawn Tractor, Made in Japan

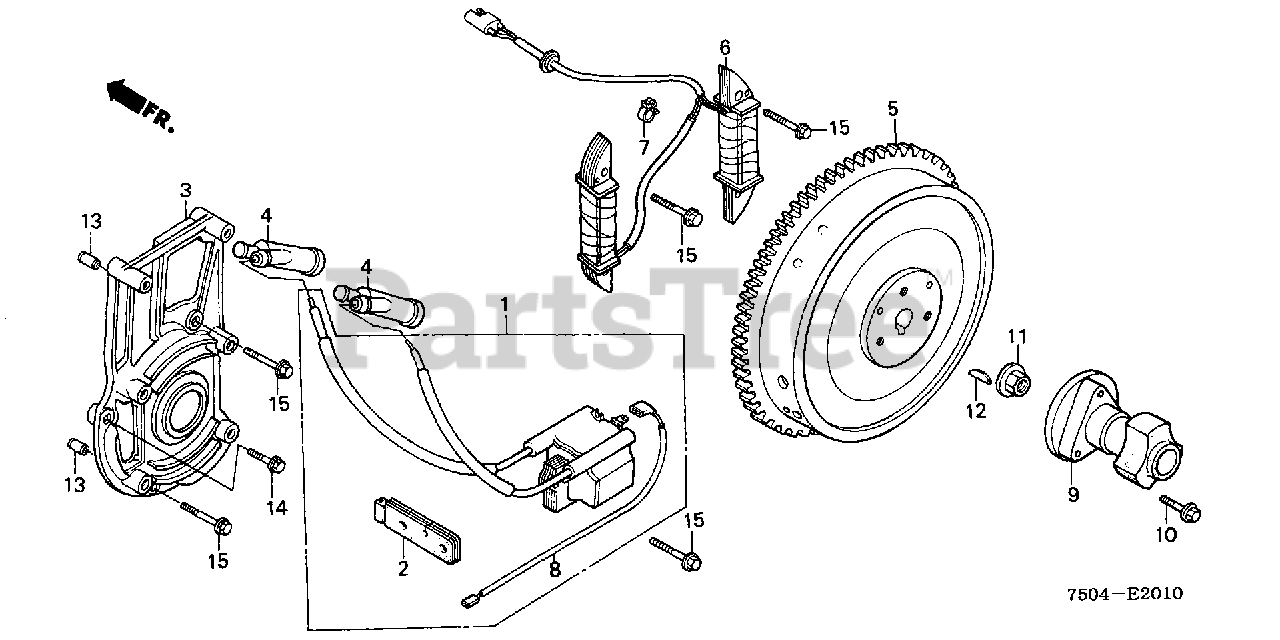

IGNITION COIL + FLYWHEEL (HT3813/K1/4213) Parts Diagram

  • Title

1

Honda 30500-ZA0-701

COIL ASSY., IGNITION

$153.99

$

In Stock, only 1 left!

0

2

Honda 30505-ZA0-700

GROMMET, IGNITION WIRE

$12.99

$

Usually ships in 3-6 days

0

3

Honda 30525-ZA0-700

STAY, IGNITION SYSTEM

$221.99

$

Usually ships in 3-6 days

0

4

Honda 30700-ZE1-013

CAP ASSY., NOISE SUPPRESSOR

$25.99

$

In Stock, Qty 6

0

5

Honda 31100-ZA0-703

FLYWHEEL

$

$

Not available

6

Honda 31630-ZA0-701

COIL ASSY., CHARGE (10A)

$248.99

$

Usually ships in 3-6 days

0

7

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

Note: Use from Engine SN 1142467.

$3.99

$

In Stock, only 1 left!

0

7

Honda 32175-647-920

SEE PART DETAILS - SUP; CLIP, HARNESS
(Superseded to 30701-883-000)

Note: Use up to Engine SN 1142466.

$3.99

$

In Stock, only 1 left!

0

8

Honda 36101-ZA0-700

SEE PART DETAILS - PRI; WIRE, ENGINE STOP

$10.99

$

Usually ships in 3-6 days

0

9

Honda 40211-890-950

DAMPER A, PROPELLER SHAFT

$136.99

$

Usually ships in 3-6 days

0

10

Honda 90112-413-000

BOLT, UBS (8X33)

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 90201-889-000

SEE PART DETAILS - SUP; NUT, SPECIAL (16MM)
(Superseded to 90201-ZE3-790)

Note: Use up to Engine SN 1135969.

$12.99

$

Usually ships in 3-6 days

0

12

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18)

$4.49

$

In Stock, Qty 16

0

13

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$3.49

$

Usually ships in 3-6 days

0

14

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.99

$

In Stock, only 2 left!

0
