HT3813 K1 SA (HT3813) - Honda Lawn Tractor, Made in Japan (SN: HT3813-5100001 - HT3813-5199999) CLUTCH + PROPELLER SHAFT Parts Diagram

Lawn Tractor, Made in Japan

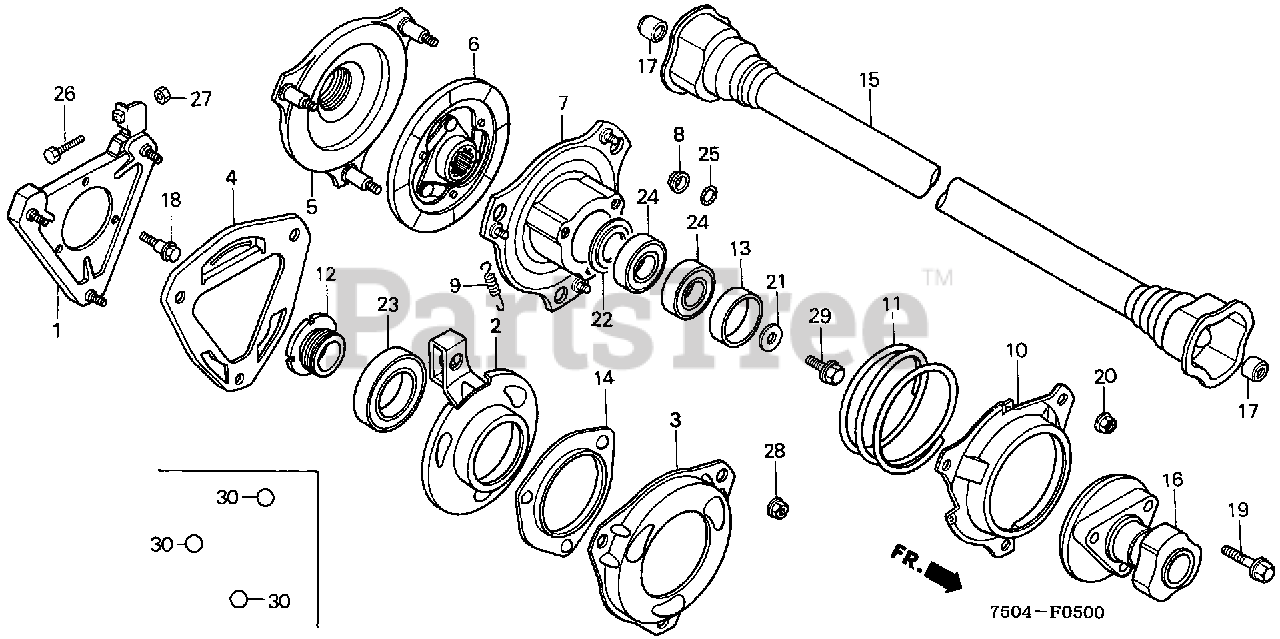

CLUTCH + PROPELLER SHAFT Parts Diagram

  • Title

1

Honda 22510-750-A00

HOUSING A, RR. CLUTCH

$

$

Not available

2

Honda 22520-750-A00

SEE PART DETAILS - PRI; PLATE, BALL CONTROL

$63.99

$

Usually ships in 0 days

0

3

Honda 22541-750-010

SEE PART DETAILS - PRI; HOUSING B, RR. CLUTCH

$66.99

$

Usually ships in 3-6 days

0

4

Honda 22545-750-A00

PLATE, DUST SEAL

$55.99

$

Usually ships in 3-6 days

0

5

Honda 04201-750-010

SEE PART DETAILS - PRI; PLATE KIT, LIFTER

Note: Use up to Frame SN 5119891.

$

$

Currently unavailable

5

Honda 22550-750-003

SEE PART DETAILS - SUP; PLATE, LIFTER

Note: Use up to Frame SN 5119891.

$

$

Not available

5

Honda 22550-750-023

SEE PART DETAILS - PRI; PLATE, LIFTER

Note: Use from Frame SN 5119892.

$

$

Not available

6

Honda 22560-750-003

PLATE, DRIVE

$130.99

$

Usually ships in 3-6 days

0

7

Honda 22570-750-013

PLATE, PRESSURE

$

$

Currently unavailable

8

Honda 22572-750-000

BUSH, RR. CLUTCH

$

$

Not available

9

Honda 22575-750-003

SPRING, CLUTCH SETTING

$

$

Not available

10

Honda 22581-750-A01

COVER, CLUTCH

$

$

Not available

11

Honda 22582-750-A00

SPRING, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 22583-750-003

SEE PART DETAILS - SUP; NUT, BEARING
(Superseded to 22583-750-023)

Note: Use up to Frame SN 5119891.

$

$

Not available

12

Honda 22583-750-023

SEE PART DETAILS - PRI; NUT, BEARING

$

$

Not available

13

Honda 22584-750-000

COLLAR

$

$

Not available

14

Honda 22590-750-010

RETAINER, BALL

$

$

Not available

15

Honda 40210-750-800

SHAFT, PROPELLER

$

$

Not available

16

Honda 40211-890-950

DAMPER A, PROPELLER SHAFT

$130.99

$

Usually ships in 3-6 days

0

17

Honda 40214-750-000

BUSH, CENTERING

$4.99

$

In Stock, Qty 5

0

18

Honda 90104-750-000

BOLT, SPECIAL (6X23)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 90112-413-000

BOLT, UBS (8X33)

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90301-473-003

NUT, U (6MM)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90473-842-000

WASHER (8MM)

$2.49

$

In Stock, only 4 left!

0

22

Honda 90508-750-A00

WASHER, SPECIAL

$

$

Currently unavailable

23

Honda 91001-750-003

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6908LLU)
(Superseded to 91001-750-023)

Note: Use up to Frame SN 5119891.

$

$

Not available

23

Honda 91001-750-013

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6908LLU)
(Superseded to 91001-750-023)

$

$

Not available

23

Honda 91001-750-023

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6908)

$

$

Not available

24

Honda 91003-750-003

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203)

$

$

Not available

25

Honda 91305-422-000

O-RING (9.8X2.4)

Note: Use from Frame SN 5110872.

$3.49

$

In Stock, only 2 left!

0

26

Honda 90106-750-000

BOLT, SPECIAL (6X25)

$4.49

$

Usually ships in 3-6 days

0

27

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

27

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

28

Honda 94050-06080

NUT, FLANGE (6MM)

Note: Use up to Frame SN 5102494.

$0.99

$

In Stock, only 3 left!

0

28

Honda 90352-122-003

NUT, DRIVEN SPROCKET (TOKAI)

Note: Use from Frame SN 5102495.

$6.49

$

Usually ships in 3-6 days

0

29

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
