HT3810 ST - Honda 42" Snow Thrower Attachment SNOW THROWER PULLEY (HT3810ST) Parts Diagram

42" Snow Thrower Attachment

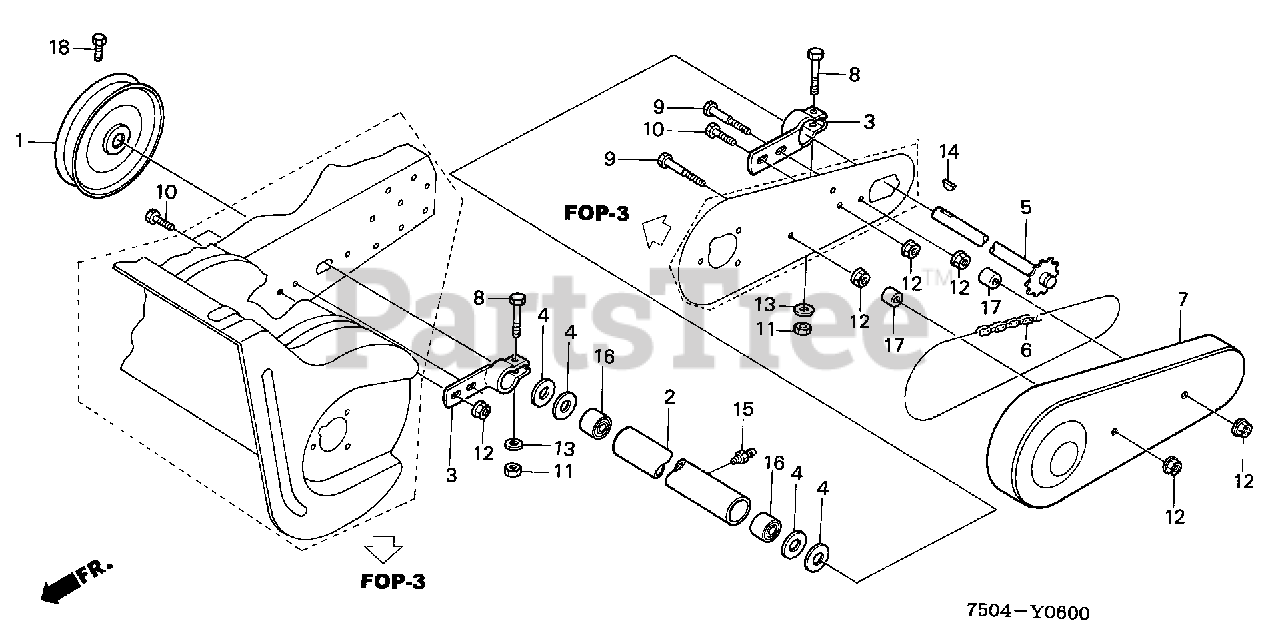

SNOW THROWER PULLEY (HT3810ST) Parts Diagram

  • Title

1

Honda 80450-750-880

PULLEY, SNOW THROWER

$

$

Not available

2

Honda 80460-750-881

HOUSING ASSY., BEARING

$224.99

$

Usually ships in 3-6 days

0

3

Honda 80471-750-881

CLAMP

$48.99

$

Usually ships in 3-6 days

0

4

Honda 80472-750-881

WASHER

$2.49

$

Usually ships in 3-6 days

0

5

Honda 80480-750-881

SHAFT ASSY.

$211.99

$

Usually ships in 3-6 days

0

6

Honda 80485-750-881

CHAIN

$168.99

$

Usually ships in 3-6 days

0

7

Honda 80486-750-881

GUARD, CHAIN

$124.99

$

Usually ships in 3-6 days

0

8

Honda 90156-750-881

BOLT, HEX. (5/16-18X1 3/4)

$2.49

$

Usually ships in 3-6 days

0

9

Honda 90161-750-881

BOLT, HEX. (3/8-16X2)

$

$

Currently unavailable

10

Honda 90162-750-881

BOLT, HEX. (3/8-16X1)

$

$

Currently unavailable

11

Honda 90323-750-881

NUT, HEX. (5/16-18)

$

$

Currently unavailable

12

Honda 90361-750-881

NUT, LOCK FLANGE (3/8X16)

$3.99

$

Usually ships in 3-6 days

0

13

Honda 90543-750-881

WASHER, LOCK (5/16)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 90782-750-881

KEY

$3.49

$

Usually ships in 3-6 days

0

15

Honda 90901-750-881

FITTING, GREASE

$

$

Not available

16

Honda 91053-750-881

BEARING, NEEDLE

$

$

Currently unavailable

17

Honda 91561-750-881

SPACER

$7.49

$

Usually ships in 3-6 days

0

18

Honda 92100-08012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X12)

$

$

Currently unavailable
