HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) PISTON (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

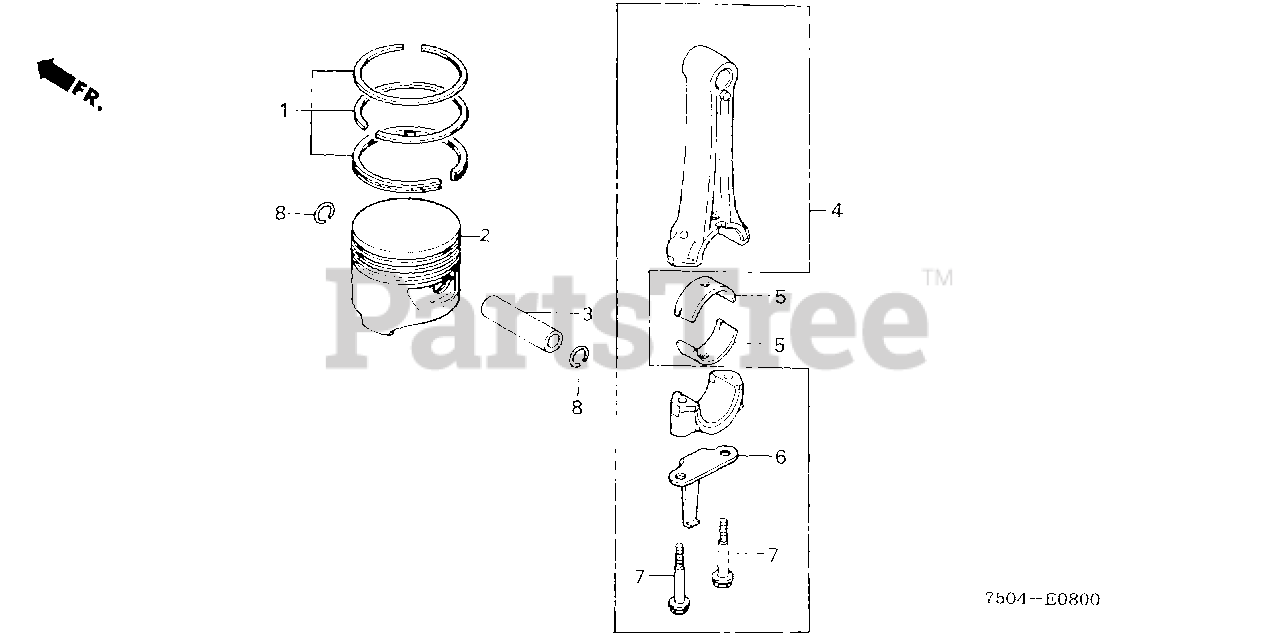

PISTON (HT3810/K1/K2) Parts Diagram

  • Title
1

Honda 13010-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$

$

Not available

1

Honda 13010-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (NOT AVAILABLE)

$

$

Not available

1

Honda 13011-YA2-003

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13011-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13012-YA2-003

SEE PART DETAILS - PRI; RING, PISTON (OS 0.50)

$90.99

$

Usually ships in 3-6 days

0

1

Honda 13012-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$90.99

$

Usually ships in 3-6 days

0

1

Honda 13013-890-010

SEE PART DETAILS - SUP; RING SET, PISTON (0.75)

$

$

Not available

2

Honda 13101-890-010

PISTON (STD)

$137.99

$

In Stock, only 1 left!

0

2

Honda 13102-890-010

PISTON (OS 0.25)

$115.99

$

Usually ships in 3-6 days

0

2

Honda 13103-890-010

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-890-010

PISTON (0.75)

$109.99

$

Usually ships in 3-6 days

0

3

Honda 13111-890-000

PIN, PISTON

$11.99

$

Usually ships in 3-6 days

0

4

Honda 13200-890-070

ROD ASSY., CONNECTING

$

$

Not available

5

Honda 13225-890-003

BEARING A, CONNECTING ROD (BLACK)

$

$

Not available

5

Honda 13226-890-003

BEARING B, CONNECTING ROD (BROWN)

$18.99

$

In Stock, only 1 left!

0

5

Honda 13227-890-003

BEARING C, CONNECTING ROD (GREEN)

$17.99

$

In Stock, only 2 left!

0

5

Honda 13228-890-003

BEARING D, CONNECTING ROD (YELLOW)

$17.99

$

Usually ships in 3-6 days

0

5

Honda 13229-890-003

BEARING E, CONNECTING ROD (PINK)

$

$

Not available

5

Honda 13235-890-305

BEARING A, CONNECTING ROD

$29.99

$

Usually ships in 3-6 days

0

5

Honda 13236-890-305

BEARING B, CONNECTING ROD

$17.99

$

Usually ships in 3-6 days

0

5

Honda 13237-890-305

BEARING C, CONNECTING ROD

$26.99

$

Usually ships in 3-6 days

0

6

Honda 13281-890-040

DIPPER, CONNECTING ROD

$

$

Not available

7

Honda 90001-890-040

BOLT, CONNECTING ROD (8MM)

$

$

Not available

8

Honda 94601-19000

CLIP, PISTON PIN (19MM)

$0.99

$

Usually ships in 3-6 days

0
