HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) HOOD + FRONT GRILLE Parts Diagram

Lawn Tractor, Made in Japan

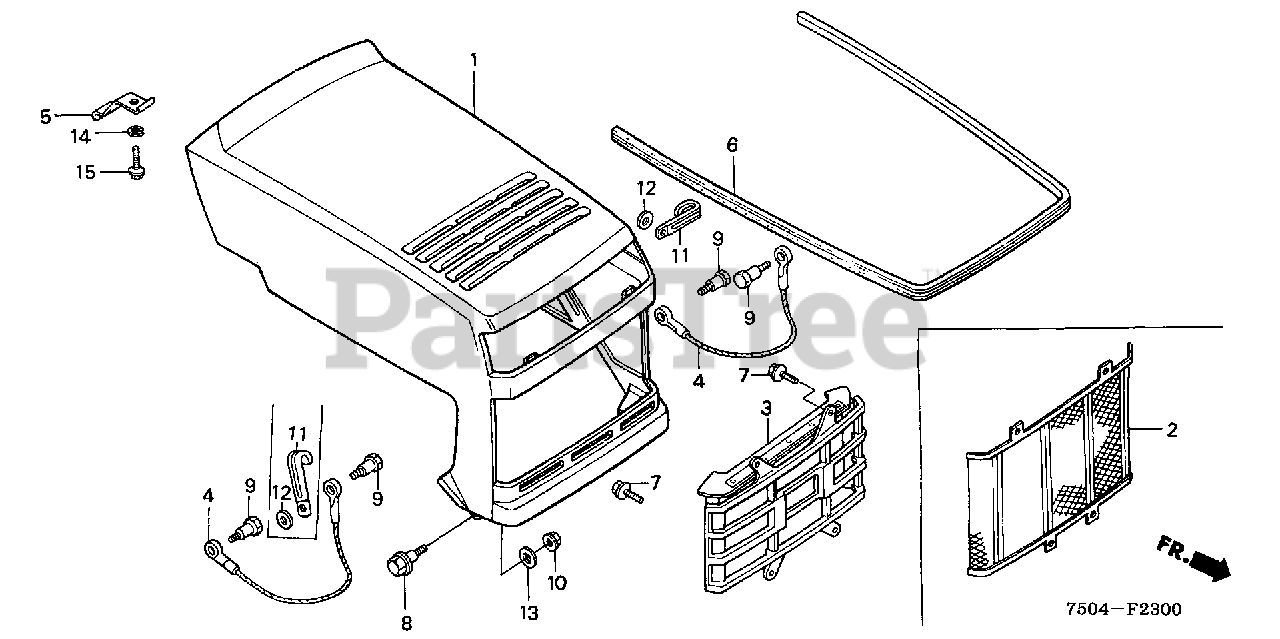

HOOD + FRONT GRILLE Parts Diagram

  • Title

1

Honda 60110-750-003ZA

HOOD ASSY. *R136* (DIANA RED)

$

$

Currently unavailable

2

Honda 60111-750-003

EXPAND, FR.

$

$

Not available

4

Honda 63110-750-003

STOPPER, HOOD

$

$

Not available

5

Honda 73451-750-000

SPRING, LOCK

$

$

Currently unavailable

6

Honda 75801-750-000

MOLDING, HOOD

$

$

Not available

7

Honda 90011-896-000

BOLT, FLANGE (6X8)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90103-750-000

BOLT, HINGE

$

$

Currently unavailable

9

Honda 90113-KA3-710

BOLT, HANDLEBAR

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90118-961-000

NUT, SELF-LOCK (8MM)

$7.49

$

Usually ships in 3-6 days

0

11

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

12

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, only 4 left!

0

13

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

14

Honda 94111-06800

WASHER, SPRING (6MM)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

15

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
