HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) GRASS CATCHER KIT (CHUTER) (HT3810) Parts Diagram

Lawn Tractor, Made in Japan

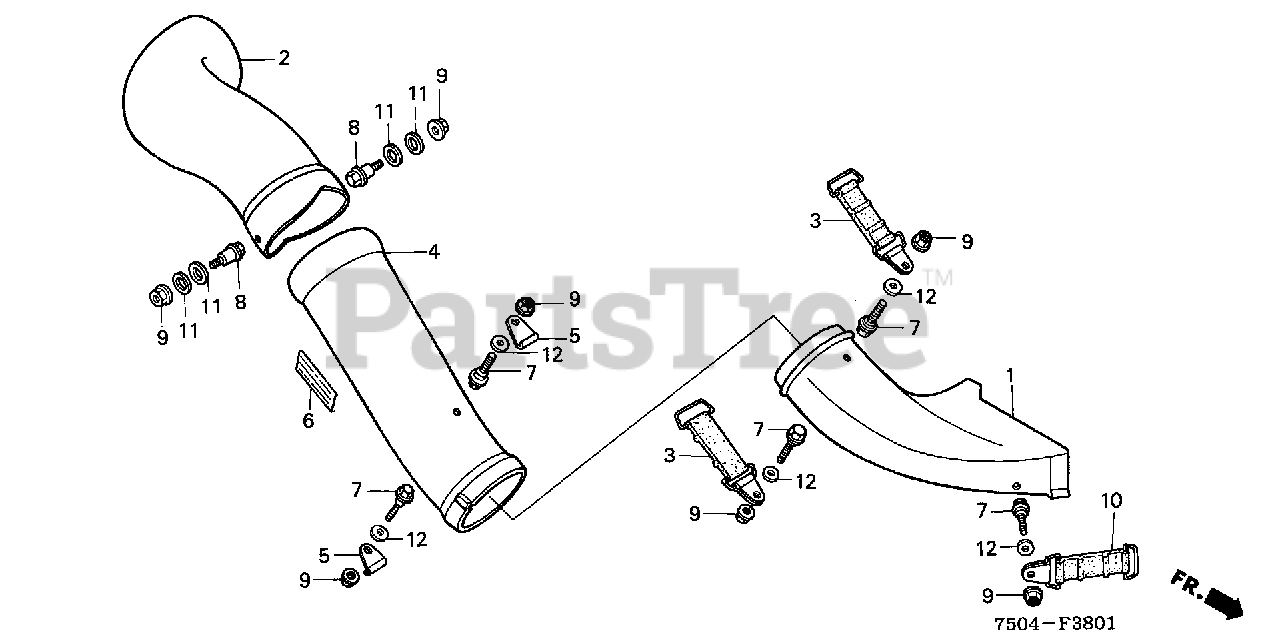

GRASS CATCHER KIT (CHUTER) (HT3810) Parts Diagram

  • Title
1

Honda 82311-750-001

CHUTE ASSY. (LOWER)

$

$

Not available

2

Honda 82312-750-000

CHUTE (UPPER)

$71.99

$

Usually ships in 3-6 days

0

3

Honda 82314-750-000

RUBBER ASSY., CHUTE TENSION

$

$

Currently unavailable

4

Honda 82315-750-001

CHUTE ASSY., MIDDLE

$64.99

$

Usually ships in 3-6 days

0

5

Honda 82316-750-000

HOOK, TENSION RUBBER

$10.99

$

Usually ships in 3-6 days

0

6

Honda 82319-750-000

LABEL, CHUTE

$10.99

$

Usually ships in 3-6 days

0

7

Honda 95701-08018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X18)

$2.49

$

Usually ships in 3-6 days

0

8

Honda 82323-750-000

SHOULDER CHUTE BOLT (UPPER)

$

$

Currently unavailable

9

Honda 82324-750-000

NUT, STOP (6MM)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 82314-751-800

BAND ASSY., HOPPER TOP

$

$

Not available

11

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 1 left!

0
