HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) CRANKCASE COVER (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

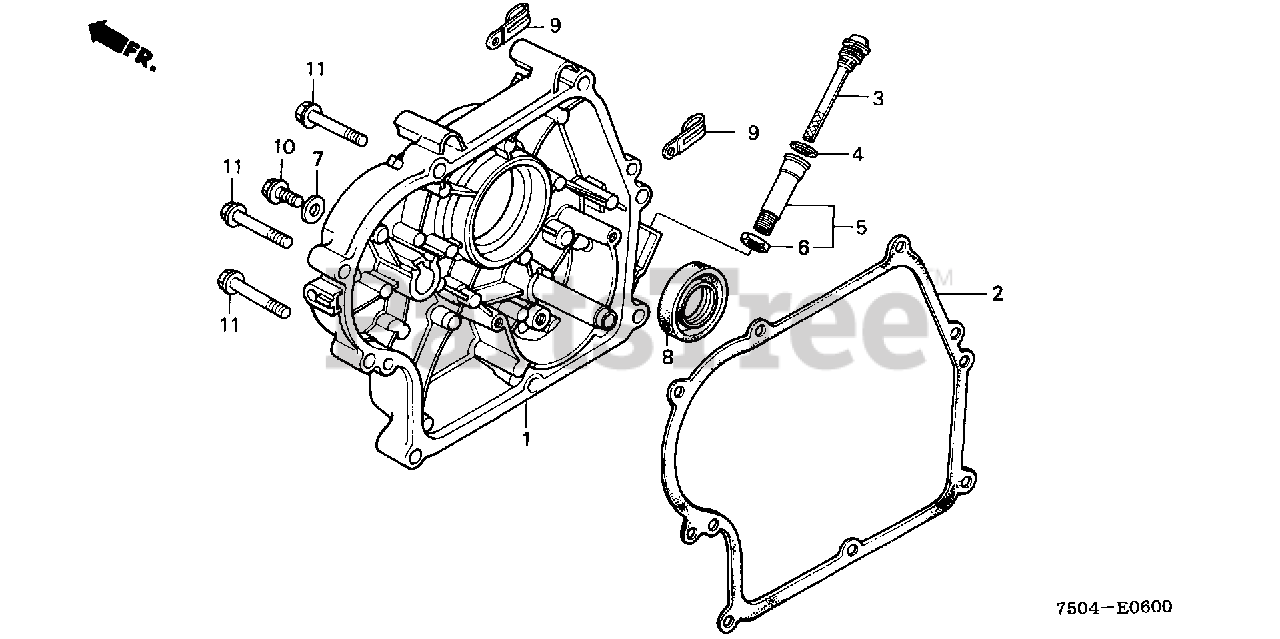

CRANKCASE COVER (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 11310-890-950

COVER, CRANKCASE

$

$

Not available

2

Honda 11381-890-850

GASKET, CASE COVER

$

$

Not available

3

Honda 15620-890-950

CAP, OIL FILLER

$8.49

$

Usually ships in 3-6 days

0

4

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 1 left!

0

4

Honda 15625-ZG0-000

SEE PART DETAILS - SUP; GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 1 left!

0

5

Honda 15632-896-650

PIPE, OIL

$

$

Not available

6

Honda 90011-883-630

NUT, OIL FILLER

$4.99

$

Usually ships in 3-6 days

0

7

Honda 90488-700-000

WASHER A (8MM)

$1.49

$

Usually ships in 3-6 days

0

8

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

9

Honda 91405-689-000

CLIP, WIRE HARNESS

$13.99

$

Usually ships in 3-6 days

0

10

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, Qty 5

0

11

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$2.99

$

In Stock, only 4 left!

0

11

Honda 95701-08045-08

BOLT, FLANGE (8X45) (DENSO)

$2.99

$

In Stock, only 4 left!

0
