HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) CARBURETOR (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

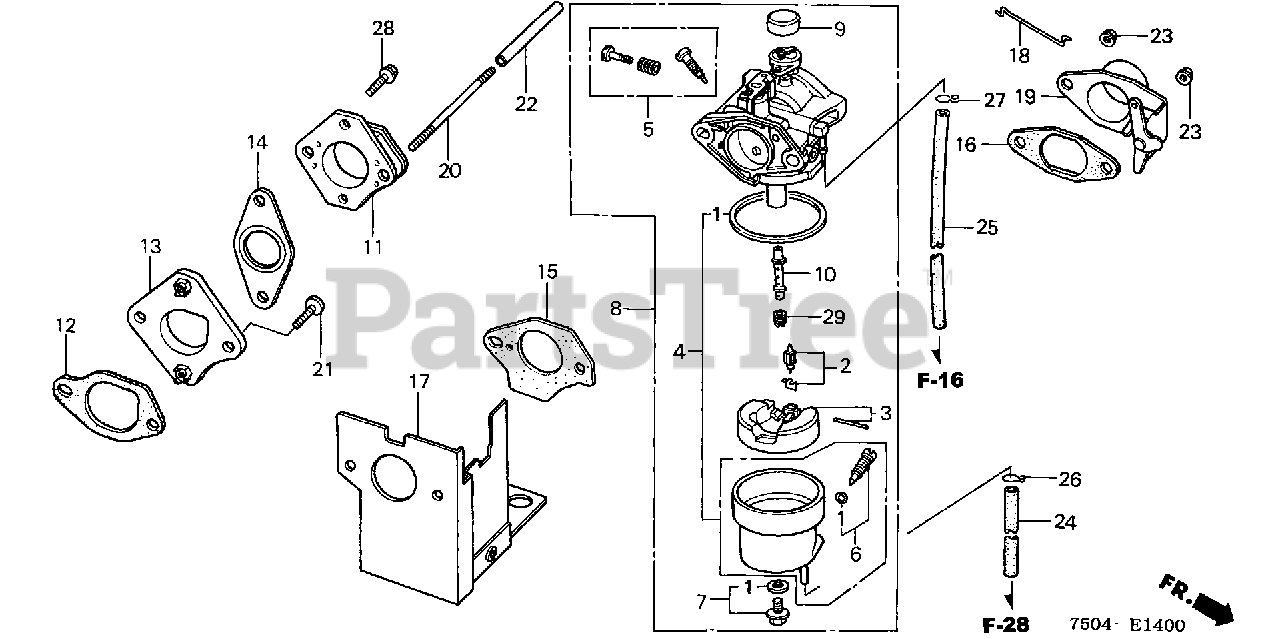

CARBURETOR (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 16010-890-951

GASKET SET (NOT AVAILABLE)

Note: Use up to Engine SN BB54AB/D.

$

$

Currently unavailable

1

Honda 16010-890-952

GASKET SET (NOT AVAILABLE)

Note: Use from Engine SN BB54AC/E.

$

$

Currently unavailable

2

Honda 16011-147-305

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-881-741)

$35.99

$

Usually ships in 3-6 days

0

2

Honda 16011-881-741

SEE PART DETAILS - PRI; VALVE SET, FLOAT

$35.99

$

Usually ships in 3-6 days

0

3

Honda 16013-890-015

FLOAT SET

$42.99

$

Usually ships in 3-6 days

0

4

Honda 16015-890-952

CHAMBER SET, FLOAT

Note: Use up to Engine SN BB54AB/D.

$

$

Currently unavailable

4

Honda 16015-890-952

CHAMBER SET, FLOAT

Note: Use from Engine SN BB54AC/E.

$

$

Currently unavailable

5

Honda 16016-YA0-801

SCREW SET A

$23.99

$

Usually ships in 3-6 days

0

6

Honda 16024-ZA7-005

SCREW SET, DRAIN

$

$

Not available

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, Qty 8

0

8

Honda 16100-890-952

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Not available

9

Honda 16148-141-881

CAP, CHOKE LEVER DUST

$7.49

$

Usually ships in 3-6 days

0

10

Honda 16166-890-951

NOZZLE, MAIN

$

$

Not available

11

Honda 16211-890-950

INSULATOR, CARBURETOR

$

$

Currently unavailable

12

Honda 16213-890-306

GASKET, INSULATOR

$

$

Currently unavailable

13

Honda 16215-890-306

SEE PART DETAILS - PRI; PLATE, INSULATOR

$

$

Not available

13

Honda 16215-890-306

SEE PART DETAILS - PRI; PLATE, INSULATOR

$

$

Not available

13

Honda 16215-890-952

SEE PART DETAILS - SUP; PLATE, INSULATOR

$

$

Currently unavailable

14

Honda 16216-890-306

GASKET, INSULATOR PLATE

$

$

Currently unavailable

15

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

$2.99

$

In Stock, only 4 left!

0

15

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, only 4 left!

0

16

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

$1.99

$

In Stock, only 3 left!

0

16

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

$1.99

$

In Stock, only 3 left!

0

17

Honda 16279-890-306

COVER, CARBURETOR

$

$

Currently unavailable

18

Honda 16573-890-950

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 16590-890-950

STAY ASSY., CHOKE CONTROL (NOT AVAILABLE)

$

$

Not available

20

Honda 90041-890-950

BOLT, STUD (6X85)

$

$

Not available

21

Honda 90091-890-950

SCREW (8X20)

$

$

Not available

22

Honda 91501-890-950

COLLAR

$7.49

$

Usually ships in 3-6 days

0

23

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

24

Honda 95001-35003-60M

BULK HOSE, FUEL (3.5X3000) (3.5X250)

$32.99

$

In Stock, only 2 left!

0

25

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X320)

$57.99

$

In Stock, Qty 10

0

26

Honda 95002-02070

CLIP, TUBE (B7)

$2.49

$

In Stock, Qty 5

0

27

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 20+

0

29

Honda 99101-124-0950

JET, MAIN (#95)

$14.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-0980

JET, MAIN (#98)

$14.99

$

Usually ships in 3-6 days

0

29

Honda 99101-124-1000

JET, MAIN (#100)

$12.99

$

Usually ships in 3-6 days

0
