HT3810 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5000034 - HT3810-5099999) AIR CLEANER (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

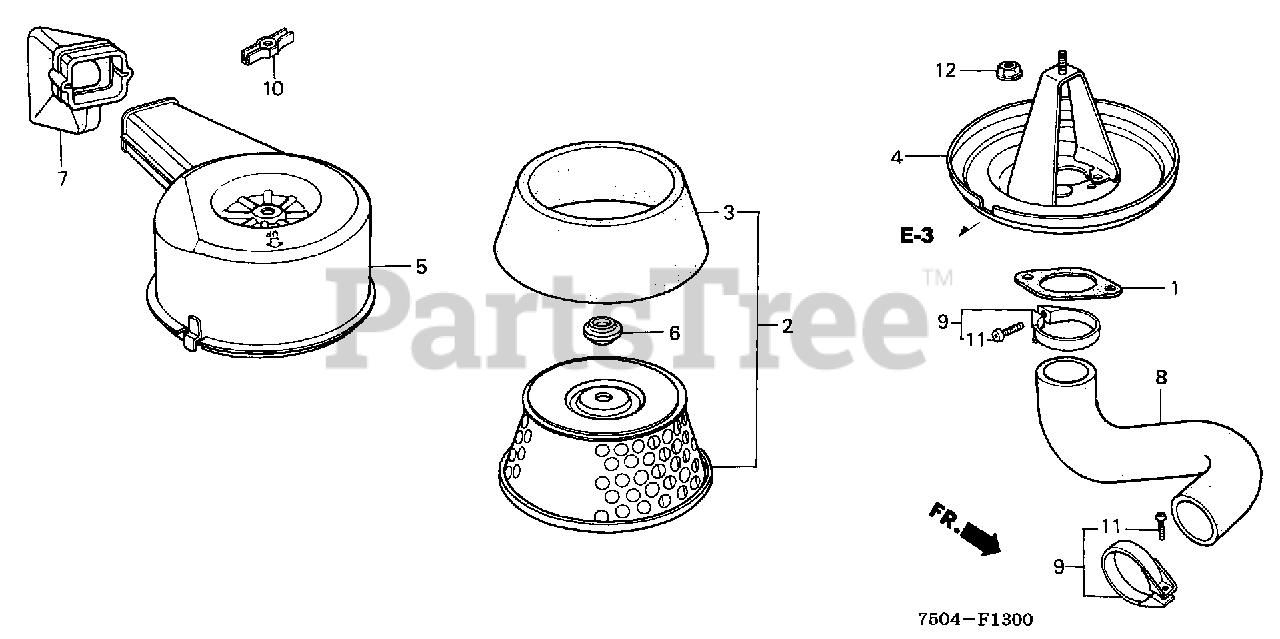

AIR CLEANER (HT3810/K1/K2) Parts Diagram

  • Title
1

Honda 16269-750-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 17211-890-023

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER
(Superseded to 17210-890-305)

$49.99

$

In Stock, only 1 left!

0

3

Honda 17218-890-003

SEE PART DETAILS - SUP; FILTER (OUTER)

$

$

Not available

4

Honda 17220-750-000

HOUSING, AIR CLEANER

$

$

Not available

5

Honda 17230-750-000

COVER, AIR CLEANER

$

$

Not available

6

Honda 17232-890-010

GROMMET, AIR CLEANER

$7.49

$

Usually ships in 3-6 days

0

7

Honda 17233-750-000

TUBE, AIR CLEANER IN.

$24.99

$

Usually ships in 3-6 days

0

8

Honda 17252-750-000

TUBE, AIR CLEANER CONNECTING

$

$

Not available

9

Honda 17255-ZA0-000

BAND, CONNECTING TUBE

$10.99

$

Usually ships in 3-6 days

0

10

Honda 90203-PB2-000

WINGNUT, AIR CLEANER COVER

$10.99

$

In Stock, only 3 left!

0

11

Honda 93500-04016-0A

SCREW, PAN (4X26)

$1.49

$

In Stock, Qty 7

0

12

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
