HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) SEAT Parts Diagram

Lawn Tractor, Made in Japan

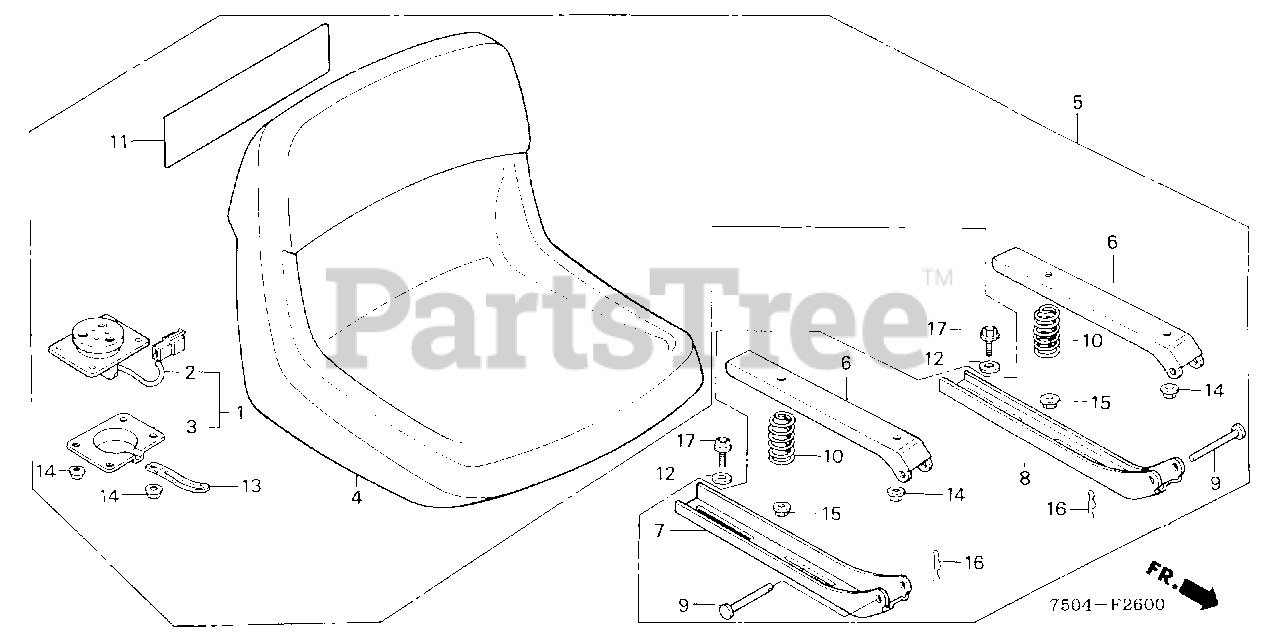

SEAT Parts Diagram

  • Title

1

Honda 35800-750-A01

SWITCH ASSY., SEAT (N/A: USE SWITCH 35801-750-A01 & SWITCH COVER 35802-751-641)

$

$

Not available

5

Honda 77200-750-A01

SEE PART DETAILS - PRI; SEAT ASSY. (N/A: SEE COMPONENTS)

$

$

Currently unavailable

6

Honda 77223-750-003

BASE, SEAT (UPPER)

$62.99

$

Usually ships in 3-6 days

0

7

Honda 77224-750-003

BASE, R. SEAT (LOWER)

$62.99

$

Usually ships in 3-6 days

0

8

Honda 77225-750-003

BASE, L. SEAT (LOWER)

$62.99

$

Usually ships in 3-6 days

0

9

Honda 77226-750-003

PIN, SEAT BASE (8MM)

$6.49

$

Usually ships in 3-6 days

0

10

Honda 77228-750-003

SPRING, SEAT

$14.99

$

Usually ships in 3-6 days

0

11

Honda 87113-750-010

MARK, SEAT

$10.99

$

Usually ships in 3-6 days

0

12

Honda 90504-SA0-000

WASHER, PLAIN (10MM)

$9.99

$

Usually ships in 3-6 days

0

13

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

15

Honda 94071-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

17

Honda 95701-08016-07

BOLT, FLANGE (8X16)

$2.49

$

Usually ships in 3-6 days

0
