HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) IGNITION COIL (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

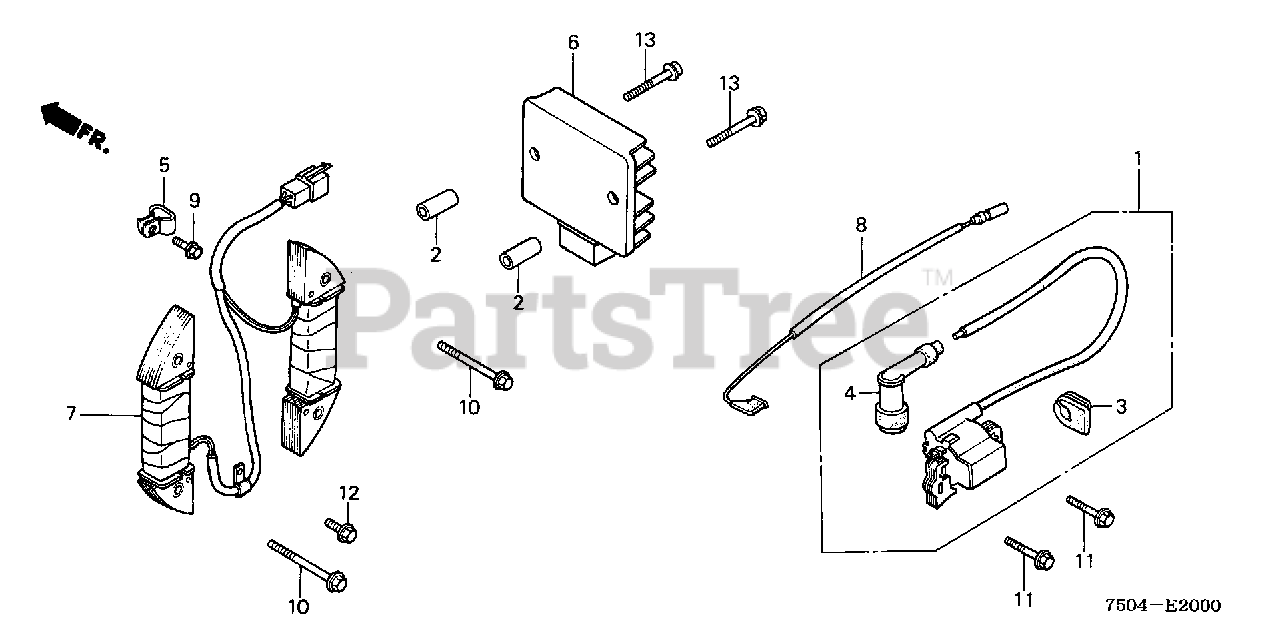

IGNITION COIL (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 30500-890-951

SEE PART DETAILS - SUP; COIL ASSY., IGNITION

Note: Use up to Engine SN 1414934.

$

$

Currently unavailable

1

Honda 30500-890-952

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$

$

Not available

2

Honda 30507-439-930

COLLAR, IGNITION COIL SETTING

$6.49

$

Usually ships in 3-6 days

0

3

Honda 30563-890-003

GROMMET, WIRE

$6.99

$

Usually ships in 3-6 days

0

4

Honda 30700-732-000

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 30702-890-000

CLAMP, IGNITION WIRE

$6.99

$

Usually ships in 3-6 days

0

6

Honda 31600-KG1-920

RECTIFIER ASSY., REGULATOR

Note: Use up to Engine SN 1425054.

$193.99

$

Usually ships in 3-6 days

0

6

Honda 31600-890-951

RECTIFIER ASSY., REGULATOR

Note: Use from Engine SN 1425055.

$

$

Not available

7

Honda 31630-890-951

COIL ASSY., CHARGE

$

$

Not available

8

Honda 36101-890-950

WIRE, STOP SWITCH

$

$

Currently unavailable

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 1 left!

0

11

Honda 90018-ZE1-000

BOLT, FLANGE (6X23)

$2.49

$

In Stock, only 2 left!

0

12

Honda 90019-883-000

BOLT, FLANGE (5X10)

$3.49

$

Usually ships in 3-6 days

0

13

Honda 95701-06032-00

BOLT, FLANGE (6X32)

Note: Use up to Engine SN 1425054.

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-06040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40)

Note: Use from Engine SN 1425055.

$2.49

$

Usually ships in 3-6 days

0
