HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) HEIGHT ADJUSTING LEVER Parts Diagram

Lawn Tractor, Made in Japan

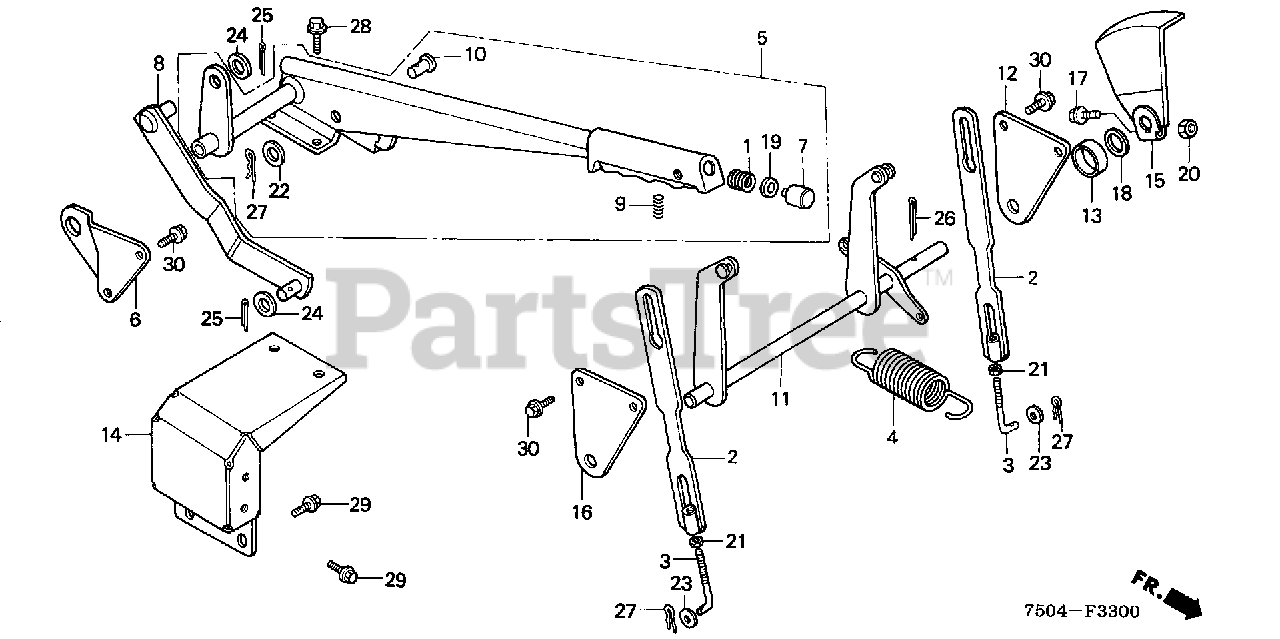

HEIGHT ADJUSTING LEVER Parts Diagram

  • Title

1

Honda 47143-671-310

SPRING, PUSH ROD

Note: Use up to Frame SN 5204148.

$

$

Not available

1

Honda 47143-750-300

SPRING, PUSH ROD

Note: Use from Frame SN 5204149.

$4.49

$

Usually ships in 3-6 days

0

2

Honda 76177-750-A01

SEE PART DETAILS - PRI; ROD, CUTTER DECK LIFT

$

$

Not available

2

Honda 76177-750-A00

SEE PART DETAILS - SUP; ROD, CUTTER DECK LIFT

Note: Use up to Frame SN 5201707.

$

$

Currently unavailable

3

Honda 76178-750-000

BOLT, LIFT ROD ADJUSTING

$

$

Not available

4

Honda 76193-750-000

SPRING, DECK LIFT (NOT AVAILABLE)

$

$

Not available

5

Honda 76310-750-000

SEE PART DETAILS - SUP; LEVER ASSY., HEIGHT ADJUSTING

Note: Use up to Frame SN 5204148.

$

$

Not available

5

Honda 76310-750-010

SEE PART DETAILS - SUP; LEVER ASSY., HEIGHT ADJUSTING

Note: Use up to Frame SN 5204148.

$

$

Not available

5

Honda 76310-750-030

SEE PART DETAILS - PRI; LEVER ASSY., HEIGHT ADJUSTING (NOT AVAILABLE)

Note: Use from Frame SN 5204149.

$

$

Currently unavailable

7

Honda 04405-750-020

SEE PART DETAILS - PRI; GRIP KIT, DECK ADJUST

Note: Use up to Frame SN 5204148.

$48.99

$

Usually ships in 3-6 days

0

7

Honda 76314-750-300

SEE PART DETAILS - SUP; KNOB, PUSH ROD
(Superseded to 04405-750-020)

Note: Use up to Frame SN 5204148.

$48.99

$

Usually ships in 3-6 days

0

7

Honda 76314-750-330

KNOB, PUSH ROD

Note: Use from Frame SN 5204149.

$

$

Not available

8

Honda 76317-750-000

LINK, HEIGHT ADJUSTING ROD

$

$

Not available

9

Honda 76319-750-010

SPRING, PUSH ROD

Note: Use from Frame SN 5204149.

$1.99

$

Usually ships in 3-6 days

0

10

Honda 76324-750-300

PIN, HEIGHT ADJUSTING LEVER STOPPER

$4.99

$

Usually ships in 3-6 days

0

11

Honda 76330-750-A00

SEE PART DETAILS - PRI; SHAFT, LIFT

$

$

Not available

12

Honda 76331-750-000

STAY, L. LIFT SHAFT

$42.99

$

Usually ships in 3-6 days

0

13

Honda 76332-750-000

SHACKLE

$

$

Not available

14

Honda 76335-750-A00

BRACKET, HEIGHT ADJUSTING LEVER

$

$

Not available

15

Honda 76338-750-000

INDICATOR, HEIGHT ADJUSTING

$

$

Not available

16

Honda 76339-750-000

STAY, R. LIFT SHAFT

$42.99

$

Usually ships in 3-6 days

0

17

Honda 90102-KE5-000

BOLT, FLANGE (6X40)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90403-952-770

WASHER, PLAIN (22MM)

$3.49

$

In Stock, only 3 left!

0

19

Honda 90408-KK0-000

WASHER (11MM)

Note: Use from Frame SN 5204145.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

21

Honda 94001-10070-0S

NUT, HEX. (10MM)

$

$

Not available

22

Honda 94102-10000

WASHER, PLAIN (10MM)

$0.99

$

In Stock, only 1 left!

0

23

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.99

$

In Stock, Qty 6

0

24

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, FLAT (12MM)

$

$

Not available

25

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

26

Honda 94201-40350

PIN, COTTER (4.0MM)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0

28

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

29

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
