HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) FLYWHEEL (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

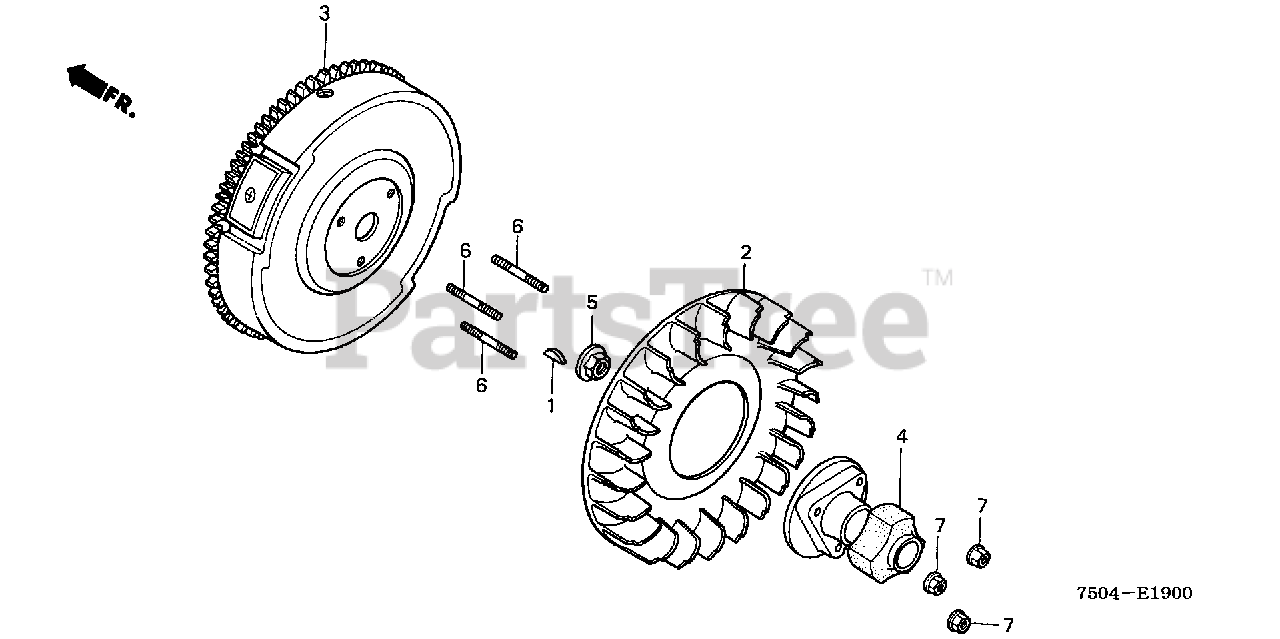

FLYWHEEL (HT3810/K1/K2) Parts Diagram

  • Title
1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$5.49

$

In Stock, only 4 left!

0

2

Honda 19511-890-950

FAN, COOLING

$

$

Not available

3

$

$

Not available

4

Honda 40211-890-950

DAMPER A, PROPELLER SHAFT

$130.99

$

Usually ships in 3-6 days

0

5

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

$11.99

$

Usually ships in 3-6 days

0

6

Honda 92900-08032-0B

BOLT, STUD (8X32)

$2.99

$

Usually ships in 3-6 days

0

7

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0
