HT3810 K2 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5200001 - HT3810-5299999) BRAKE PEDAL Parts Diagram

Lawn Tractor, Made in Japan

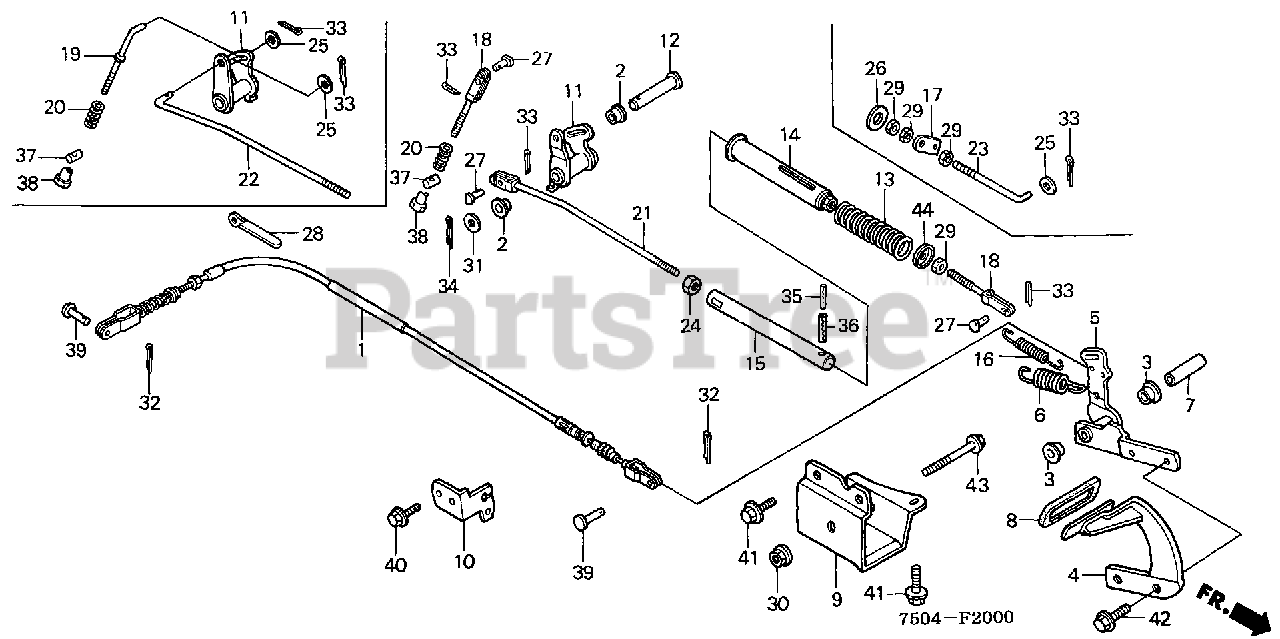

BRAKE PEDAL Parts Diagram

  • Title

1

Honda 24145-750-A00

CABLE, FOOT CLUTCH

$

$

Not available

2

Honda 44328-952-000

BUSH, PINION GEAR

$9.49

$

Usually ships in 3-6 days

0

3

Honda 46504-679-300

BUSH, PEDAL

$14.99

$

Usually ships in 3-6 days

0

4

Honda 46510-750-A00

PEDAL, BRAKE

$

$

Not available

5

Honda 46511-750-A00

ARM, BRAKE PEDAL

$

$

Not available

6

Honda 46514-750-000

SPRING, BRAKE PEDAL (NOT AVAILABLE)

$

$

Not available

7

Honda 46535-750-000

COLLAR, PEDAL

$

$

Not available

8

Honda 46545-692-980

COVER, BRAKE PEDAL

$14.99

$

Usually ships in 3-6 days

0

9

Honda 46591-750-A00

BRACKET, BRAKE PEDAL

$60.99

$

Usually ships in 3-6 days

0

10

Honda 47145-750-000

HOLDER, BRAKE CABLE

$

$

Not available

11

Honda 47230-750-A00

ARM, BRAKE ROD

$

$

Not available

12

Honda 47233-750-000

PIN (12MM)

$

$

Not available

13

Honda 47251-750-800

SPRING, BRAKE LOAD SETTING

$22.99

$

Usually ships in 3-6 days

0

14

Honda 47252-750-A00

PIPE, BRAKE SPRING SETTING

$

$

Not available

15

Honda 47253-750-000

SHAFT, SPRING SET

$26.99

$

Usually ships in 3-6 days

0

16

Honda 47255-750-000

SPRING, BRAKE DAMPER (NOT AVAILABLE)

$

$

Not available

18

Honda 47261-750-A01

ROD A, RR. BRAKE

$

$

Not available

20

Honda 47262-750-000

SPRING A, BRAKE ROD

$2.99

$

Usually ships in 3-6 days

0

21

Honda 47265-750-A01

ROD B, FOOT BRAKE

$

$

Not available

24

Honda 90201-KC1-000

NUT, TIE ROD

$

$

Not available

27

Honda 90771-750-A00

PIN (5.3X17)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 91413-PE9-000

CLIP (2X74)

$7.99

$

Usually ships in 3-6 days

0

29

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

30

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

31

Honda 94101-12800

WASHER, PLAIN (12MM)

$1.99

$

In Stock, Qty 6

0

32

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

33

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

34

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0

35

Honda 94305-30281

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

36

Honda 94305-50281

PIN, SPRING (5X28)

$2.49

$

Usually ships in 3-6 days

0

37

Honda 95015-32001

SEE PART DETAILS - PRI; JOINT, BRAKE ARM

$1.49

$

In Stock, Qty 5

0

38

Honda 95015-42000

NUT B, BRAKE ROD ADJUSTING

$2.49

$

Usually ships in 3-6 days

0

39

Honda 95015-52000

PIN B, BRAKE ROD JOINT

$2.99

$

Usually ships in 3-6 days

0

40

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0

41

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

42

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

43

Honda 95701-10080-08

BOLT, FLANGE (10X80)

$4.49

$

Usually ships in 3-6 days

0

44

Honda 90505-SB0-930

WASHER, PLAIN (20MM)

Note: Use up to Frame SN 5202605.

$

$

Currently unavailable

44

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

Note: Use from Frame SN 5202606.

$7.99

$

Usually ships in 3-6 days

0
