HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) WHEEL + TIRE Parts Diagram

Lawn Tractor, Made in Japan

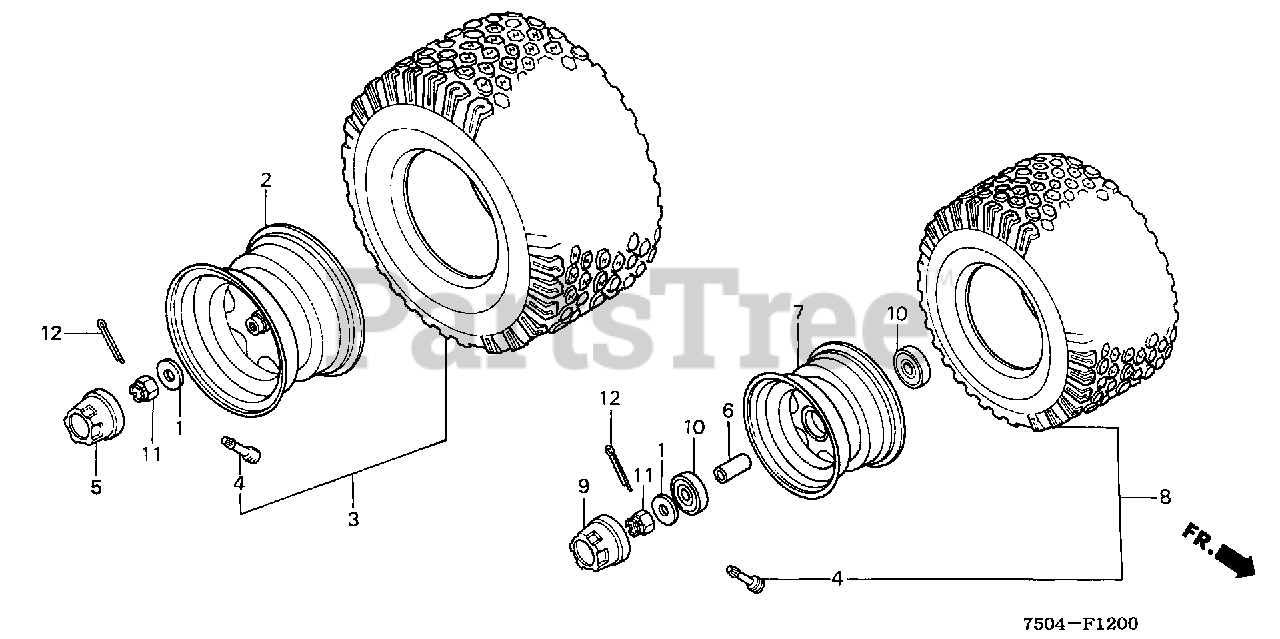

WHEEL + TIRE Parts Diagram

  • Title

1

Honda 42322-950-000

WASHER (14MM)

$5.49

$

Usually ships in 3-6 days

0

2

Honda 42710-750-003ZB

WHEEL *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 42750-750-003

TIRE ASSY., RR.

$

$

Not available

4

Honda 42753-634-003

SEE PART DETAILS - SUP; VALVE, RIM (BS)

$

$

Not available

4

Honda 42753-671-003

SEE PART DETAILS - SUP; VALVE, RIM (TAIHEIYO)
(Superseded to 42753-SB8-661)

$2.49

$

In Stock, only 3 left!

0

5

Honda 42761-750-000

CAP, RR. HUB

$

$

Not available

6

Honda 44620-750-000

COLLAR, FR. AXLE DISTANCE

$11.99

$

In Stock, only 1 left!

0

7

Honda 44710-750-003ZB

WHEEL *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

$

$

Not available

8

Honda 44750-750-003

TIRE ASSY., FR.

$

$

Not available

9

Honda 44761-750-000

CAP, FR. HUB

$

$

Not available

10

Honda 91052-750-000

BEARING, RADIAL BALL

$

$

Not available

11

Honda 94011-14000-0S

NUT, CASTLE (14MM)

$2.49

$

Usually ships in 3-6 days

0

12

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

In Stock, Qty 20+

0
