HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) TRANSMISSION CASE Parts Diagram

Lawn Tractor, Made in Japan

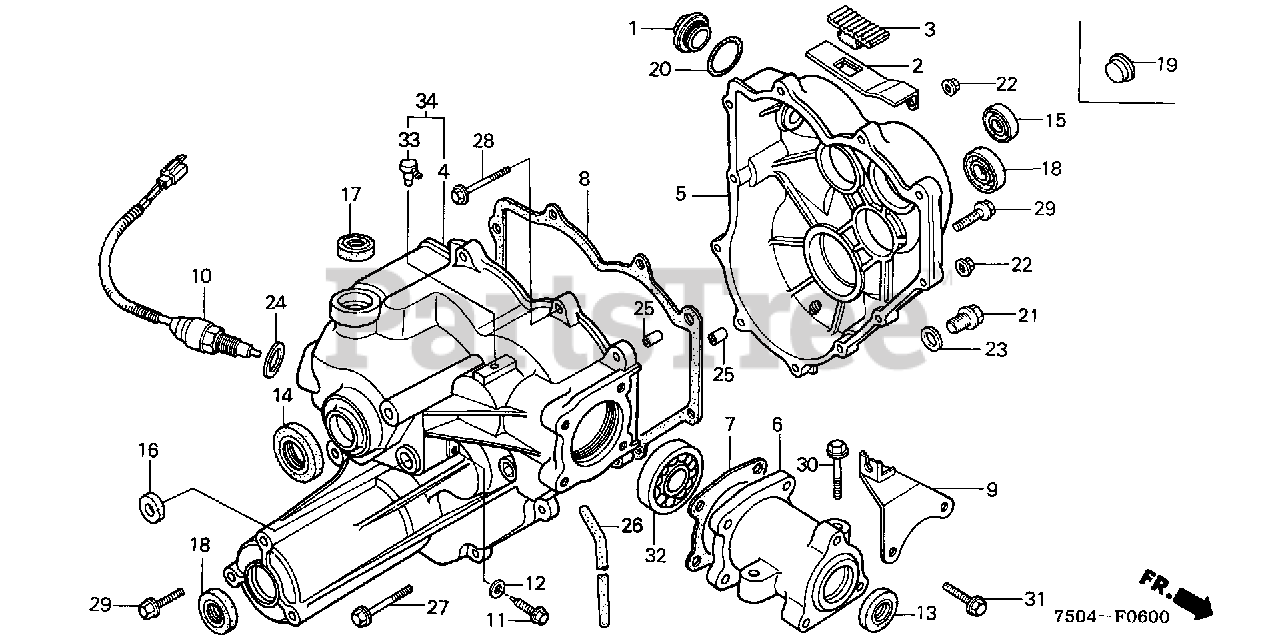

TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 12361-300-000

SEE PART DETAILS - PRI; CAP, VALVE ADJ.

$14.99

$

Usually ships in 3-6 days

0

2

Honda 17505-750-000

STAY, TANK CUSHION RUBBER

$

$

Not available

3

Honda 17507-750-000

RUBBER, TANK CUSHION

$

$

Not available

4

Honda 21100-750-000

CASE, R. TRANSMISSION

$

$

Currently unavailable

5

Honda 21200-750-000

CASE, L. TRANSMISSION

$

$

Currently unavailable

6

Honda 21210-750-000

HOLDER, INPUT SHAFT

$132.99

$

Usually ships in 3-6 days

0

7

Honda 21211-750-000

GASKET, INPUT SHAFT HOLDER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 21215-750-306

GASKET, TRANSMISSION CASE

$

$

Not available

9

Honda 24138-750-000

HOLDER, CLUTCH CABLE

$

$

Not available

10

Honda 35600-750-003

SEE PART DETAILS - PRI; SWITCH ASSY., NEUTRAL

$

$

Not available

11

Honda 90010-750-000

BOLT, SPECIAL (6MM)

$

$

Not available

12

Honda 90478-700-000

WASHER A (6MM)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 91201-896-701

SEE PART DETAILS - PRI; OIL SEAL (20X34X6)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 91202-750-004

OIL SEAL (27X38X7)

$

$

Not available

15

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

16

Honda 91203-750-003

SEE PART DETAILS - PRI; OIL SEAL (12X18X4)

$5.49

$

Usually ships in 3-6 days

0

16

Honda 91203-750-004

SEE PART DETAILS - SUP; OIL SEAL (12X18X5)
(Superseded to 91203-750-003)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 91204-MC7-003

SEE PART DETAILS - SUP; OIL SEAL (16X28X7)
(Superseded to 91204-259-003)

$7.99

$

Usually ships in 3-6 days

0

18

Honda 91251-750-003

OIL SEAL (25X34X7)

$

$

Not available

20

Honda 91302-001-020

O-RING (30.8MM)

$4.99

$

In Stock, only 3 left!

0

21

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

22

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

23

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

24

Honda 94109-14000

WASHER, DRAIN PLUG (14MM)

$0.99

$

In Stock, Qty 20+

0

25

Honda 94301-08140

PIN A, DOWEL (8X14) (YAMADA)

$2.99

$

In Stock, Qty 8

0

26

Honda 95005-50003-30M

BULK HOSE, VACUUM (5X3000) (5X265)

$31.99

$

Usually ships in 3-6 days

0

27

Honda 95701-06040-08

BOLT, FLANGE (6X40)

$2.49

$

Usually ships in 3-6 days

0

28

Honda 95701-06045-08

BOLT, FLANGE (6X45)

$2.99

$

In Stock, only 2 left!

0

29

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0

31

Honda 95801-08028-00

BOLT, FLANGE (8X28)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 96100-62040-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204)

$16.99

$

In Stock, only 2 left!

0
