HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) MUFFLER (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

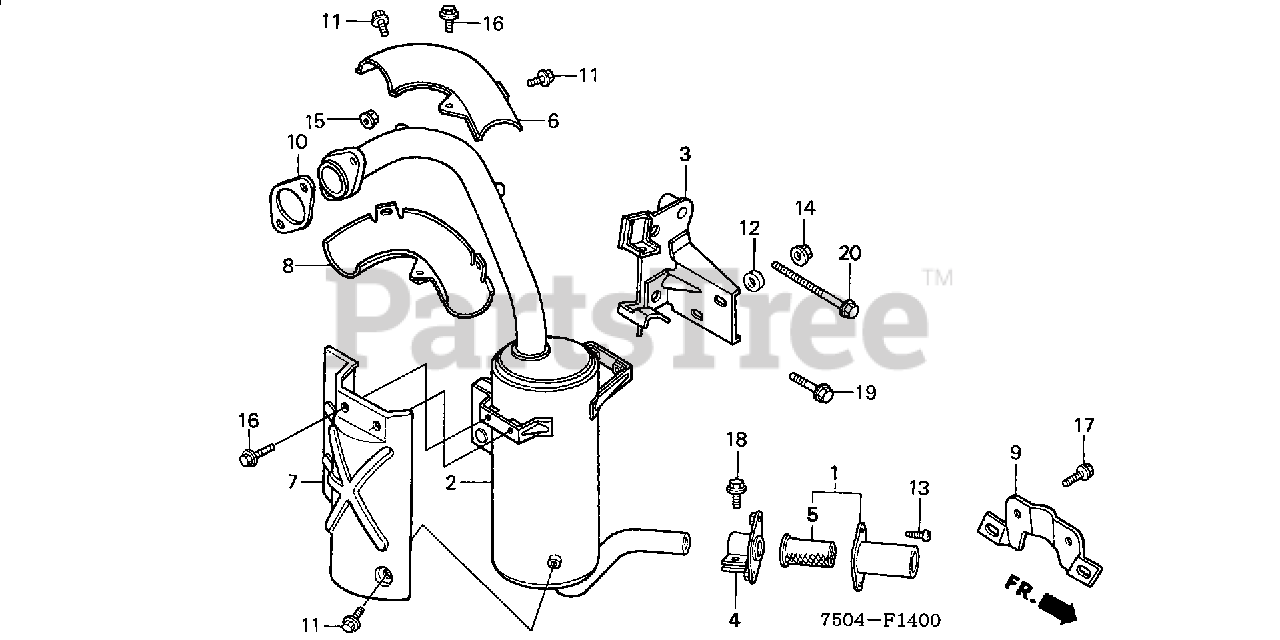

MUFFLER (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 183A5-ZA0-630

CAP SET, ARRESTER

$

$

Not available

2

Honda 18310-750-004

MUFFLER

$280.99

$

Usually ships in 3-6 days

0

3

Honda 18317-750-000

STAY, MUFFLER

$92.99

$

Usually ships in 3-6 days

0

4

Honda 18320-750-000

CLAMP, ARRESTER BASE

$

$

Currently unavailable

5

Honda 18355-890-630

ARRESTER, SPARK

$

$

Not available

6

Honda 18362-750-010

PROTECTOR A, EX. PIPE

$44.99

$

Usually ships in 3-6 days

0

7

Honda 18365-750-000

PROTECTOR, MUFFLER

$68.99

$

Usually ships in 3-6 days

0

8

Honda 18367-750-010

PROTECTOR B, EX. PIPE

$

$

Not available

9

Honda 18373-750-000

STAY, EX. PIPE

$

$

Not available

10

Honda 18381-889-306

SEE PART DETAILS - SUP; GASKET, MUFFLER
(Superseded to 18381-889-800)

$6.99

$

Usually ships in 3-6 days

0

10

Honda 18381-889-800

SEE PART DETAILS - PRI; GASKET, MUFFLER

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90011-896-000

BOLT, FLANGE (6X8)

$3.49

$

Usually ships in 3-6 days

0

12

Honda 90107-GK1-000

COLLAR

$

$

Currently unavailable

13

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

14

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

16

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

16

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

17

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

19

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95700-08068-08

BOLT, FLANGE (8X68)

$

$

Currently unavailable
