HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) INSTRUMENT PANEL + THROTTLE LEVER Parts Diagram

Lawn Tractor, Made in Japan

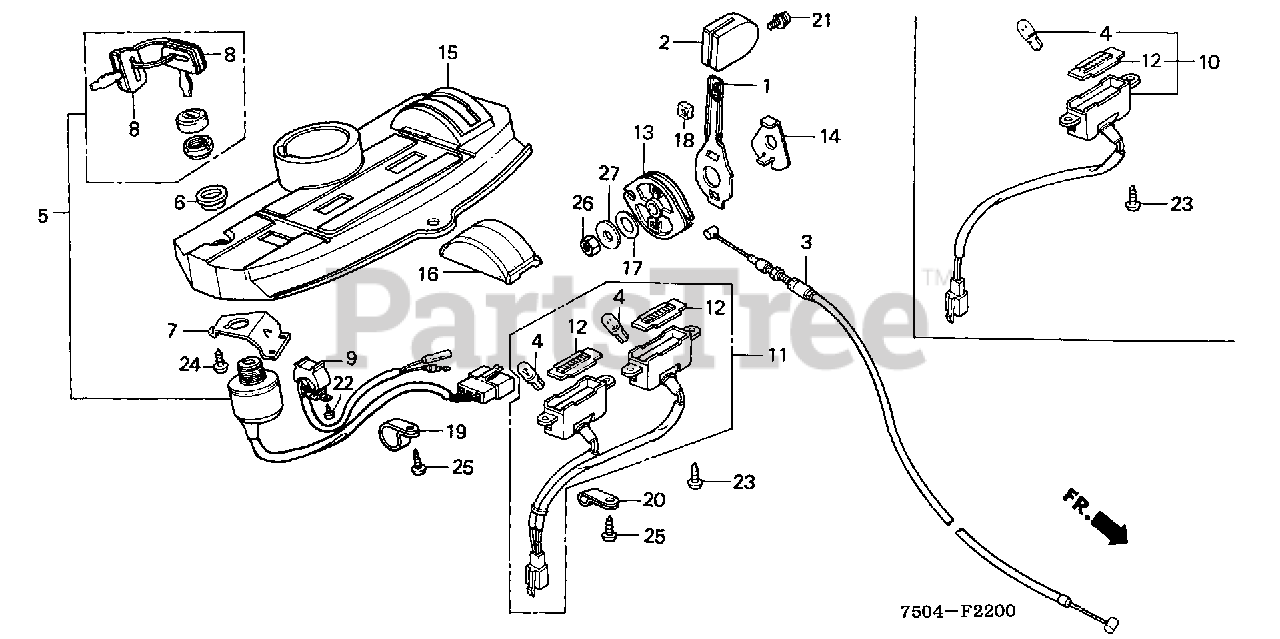

INSTRUMENT PANEL + THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17851-750-000

SEE PART DETAILS - PRI; LEVER, THROTTLE (NOT AVAILABLE)

$

$

Not available

2

Honda 17856-750-000ZA

KNOB, THROTTLE LEVER *NH105* (MAT BLACK)

$

$

Currently unavailable

3

Honda 17910-750-000

CABLE, THROTTLE

$

$

Not available

4

Honda 34908-MB0-003

BULB, WEDGE BASE (12V/3W) (STANLEY)
(Superseded to 34275-S2X-003)

$4.99

$

Usually ships in 3-6 days

0

5

Honda 35100-750-043

SWITCH ASSY., COMBINATION

$

$

Not available

8

Honda 35110-VA3-902

SEE PART DETAILS - SUP; KEY ASSY., COMBINATION SWITCH
(Superseded to 35110-VA3-903)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 35150-750-003

SWITCH ASSY., LIGHTING

$

$

Not available

10

Honda 37560-750-013

SEE PART DETAILS - PRI; SOCKET ASSY., LAMP

$

$

Not available

12

Honda 37563-750-003

LENS

$

$

Not available

13

Honda 54226-952-000

REEL, CABLE

$11.99

$

Usually ships in 3-6 days

0

14

Honda 54227-952-010

STOPPER, REEL

$8.49

$

Usually ships in 3-6 days

0

15

Honda 77101-750-010ZA

PANEL, INSTRUMENT *NH105* (MAT BLACK)

$

$

Not available

17

Honda 90408-KK0-000

WASHER (11MM)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90411-750-000

NUT, SQUARE (4MM)

$2.49

$

Usually ships in 3-6 days

0

19

Honda 90602-SB0-003

CLIP

$5.99

$

Usually ships in 3-6 days

0

20

Honda 91475-SB6-000

CLIP, WIRE HARNESS

$10.99

$

Usually ships in 3-6 days

0

21

Honda 93892-04008-07

SCREW-WASHER (4X8)

$1.49

$

In Stock, only 4 left!

0

22

Honda 93901-22120

SCREW, TAPPING (3X8)

$7.99

$

Usually ships in 3-6 days

0

23

Honda 93901-34320

SCREW, TAPPING (4X12)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 93903-24220

SCREW, TAPPING (4X10)

$1.49

$

Usually ships in 3-6 days

0

26

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

26

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

27

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0
