HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) FUEL TANK + FUEL PUMP Parts Diagram

Lawn Tractor, Made in Japan

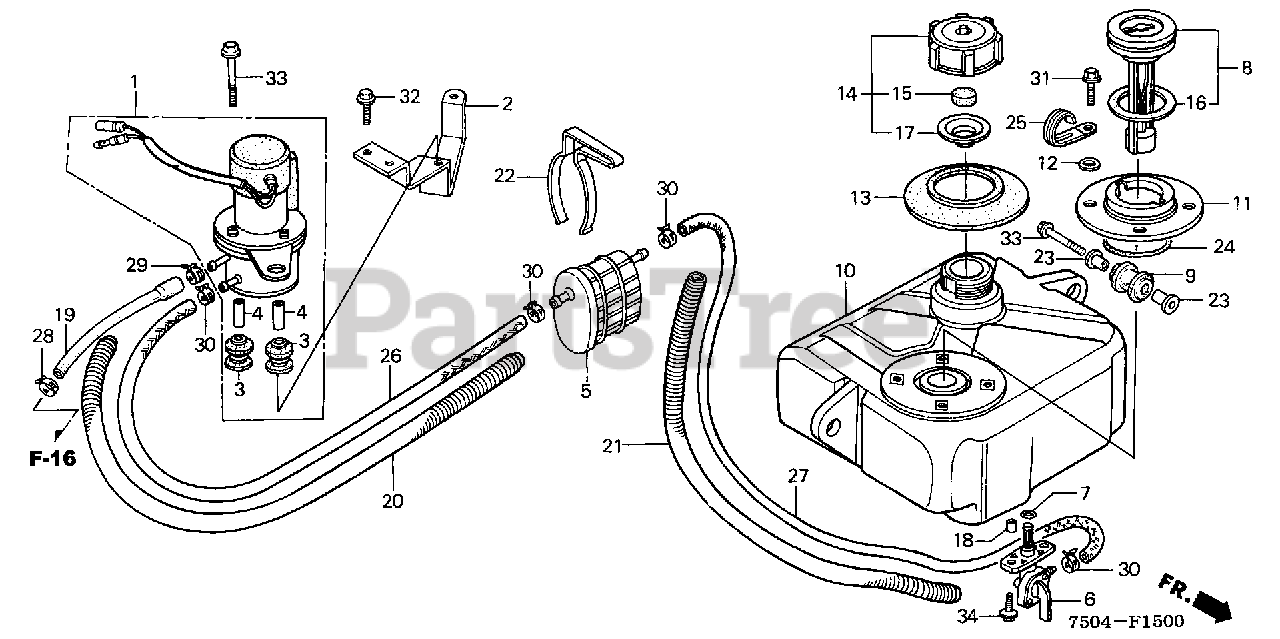

FUEL TANK + FUEL PUMP Parts Diagram

  • Title

1

Honda 16700-679-053

SEE PART DETAILS - SUP; PUMP ASSY., FUEL

$

$

Currently unavailable

2

Honda 16705-750-010

STAY, FUEL PUMP

$

$

Not available

3

Honda 16711-679-000

RUBBER, FUEL PUMP SETTING

$10.99

$

In Stock, only 1 left!

0

4

Honda 16712-657-300

COLLAR, FUEL PUMP DISTANCE

$20.99

$

Usually ships in 3-6 days

0

5

Honda 16900-611-024

SEE PART DETAILS - PRI; FILTER, FUEL

$21.99

$

Usually ships in 3-6 days

0

8

Honda 17505-898-623

METER, FUEL

$

$

Not available

9

Honda 17506-750-000

RUBBER, TANK SETTING

$7.49

$

Usually ships in 3-6 days

0

10

Honda 17510-750-010

SEE PART DETAILS - SUP; TANK, FUEL

$

$

Not available

11

Honda 17511-750-010

FLANGE, FUEL METER UNIT

$

$

Currently unavailable

12

Honda 17512-750-000

COLLAR, METER UNIT

$4.49

$

Usually ships in 3-6 days

0

13

Honda 17520-ZA0-800

SEAL, FUEL FILLER NECK

$22.99

$

Usually ships in 3-6 days

0

14

Honda 17620-730-000

SEE PART DETAILS - SUP; CAP, FUEL TANK
(Superseded to 17620-747-030)

$13.99

$

Usually ships in 3-6 days

0

14

Honda 17620-730-010

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-747-030)

$13.99

$

Usually ships in 3-6 days

0

15

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

16

Honda 17624-187-020

GASKET C, FUEL METER

$

$

Not available

17

Honda 17624-730-000

GASKET, FUEL CAP

$

$

Not available

19

Honda 17732-750-000

TUBE, FUEL SPECIAL

$

$

Currently unavailable

20

Honda 17735-750-000

TUBE A, CORRUGATED

$

$

Not available

21

Honda 17736-750-000

TUBE B, CORRUGATED

$

$

Not available

22

Honda 70615-750-000

SEE PART DETAILS - SUP; CLAMP, FUEL STRAINER

$

$

Not available

23

Honda 90509-750-000

COLLAR, FUEL TANK

$4.99

$

Usually ships in 3-6 days

0

24

Honda 91305-MC7-000

O-RING (39.5X5)

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

26

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X250)

$

$

Currently unavailable

27

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X300)

Note: Use up to Frame SN 5105535.

$

$

Currently unavailable

27

Honda 95001-55008-20M

BULK HOSE, FUEL (5.5X8000) (5.5X230)

Note: Use from Frame SN 5105536.

$

$

Currently unavailable

28

Honda 95002-40800-04

CLIP, TUBE (D8)

$3.49

$

In Stock, only 1 left!

0

29

Honda 95002-40850-08

CLIP, TUBE (D8.5)

$3.49

$

In Stock, Qty 8

0

30

Honda 95002-41050-08

CLIP, TUBE (D10.5)

$3.49

$

In Stock, Qty 7

0

31

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 19

0

31

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 19

0

32

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

32

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

33

Honda 95701-06032-08

BOLT, FLANGE (6X32)

$2.49

$

In Stock, only 4 left!

0
