HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) FAN COVER (HT3810/K1/K2) Parts Diagram

Lawn Tractor, Made in Japan

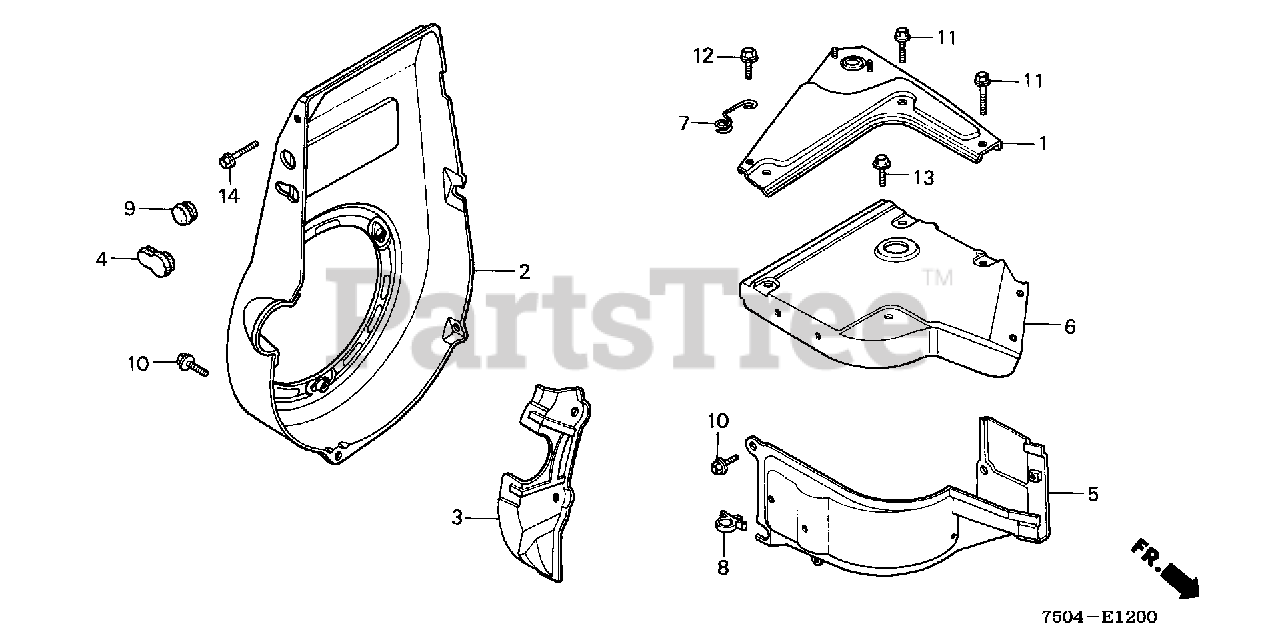

FAN COVER (HT3810/K1/K2) Parts Diagram

  • Title

1

Honda 17250-890-950

STAY, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 19610-890-950H

COVER, FAN *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 19611-890-800

PLATE, SIDE

$

$

Not available

4

Honda 19614-889-730

GROMMET, FAN COVER

$

$

Not available

5

Honda 19631-890-950

SHROUD

$

$

Not available

6

Honda 19641-890-950

COVER, TOP

Note: Use up to Engine SN 1398120.

$

$

Not available

6

Honda 19641-890-951

COVER, TOP

Note: Use from Engine SN 1398121.

$66.99

$

Usually ships in 3-6 days

0

7

Honda 30588-898-000

CLAMP, IGNITION TUBE

$5.99

$

Usually ships in 3-6 days

0

8

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

9

Honda 81329-567-020

GROMMET, DRAIN HOLE

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 1425054.

$1.99

$

In Stock, Qty 20+

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 1425055.

$1.99

$

In Stock, Qty 20+

0

11

Honda 90015-883-000

BOLT, FLANGE (6X28)

$3.99

$

In Stock, Qty 8

0

12

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

12

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

13

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 1 left!

0

13

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

14

Honda 90061-161-000

BOLT, FLANGE (6X16)

Note: Use from Engine SN 1425055.

$3.99

$

Usually ships in 3-6 days

0
