HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) DECK WHEEL (HT3810/K1/3813) Parts Diagram

Lawn Tractor, Made in Japan

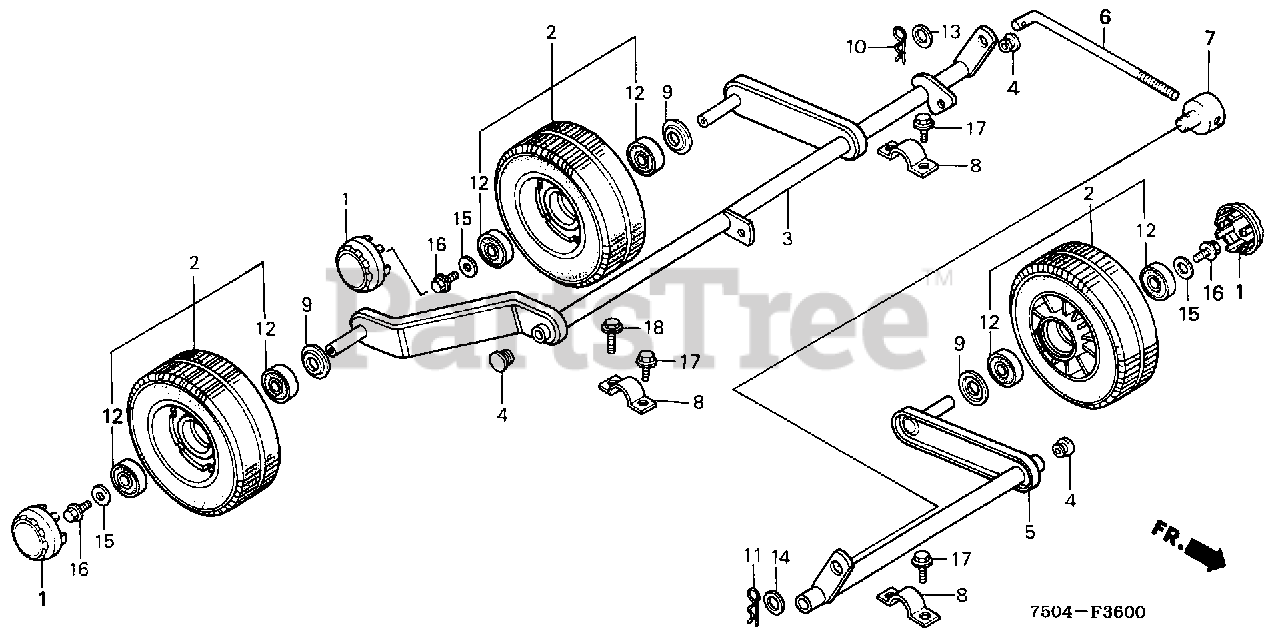

DECK WHEEL (HT3810/K1/3813) Parts Diagram

  • Title
1

Honda 42755-VA4-611

CAP, WHEEL

$10.99

$

Usually ships in 3-6 days

0

2

Honda 42810-750-000

WHEEL (6-2.0)

$

$

Not available

3

Honda 76340-750-000

SHAFT, R. (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 76341-750-300

CAP, WHEEL SHAFT

$

$

Not available

5

Honda 76350-750-000

SHAFT, L. WHEEL

$

$

Currently unavailable

6

Honda 76351-750-000

BAR, ADJUSTING

$

$

Not available

7

Honda 76352-750-000

PIN, ADJUSTING (NOT AVAILABLE)

$

$

Not available

8

Honda 76353-750-000

BRACKET, R. SHAFT

$

$

Not available

9

Honda 90407-750-000

WASHER, SPECIAL (12MM)

$

$

Not available

10

Honda 90701-750-000

PIN, LOCK (2.3MM)

$4.49

$

In Stock, only 3 left!

0

11

Honda 90702-750-000

PIN, LOCK (2.3MM)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 91055-VA2-700

BEARING, RADIAL BALL

$13.99

$

In Stock, only 1 left!

0

13

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, FLAT (12MM)

$

$

Not available

14

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.49

$

In Stock, only 2 left!

0

15

Honda 94103-06800

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

16

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

16

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

17

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
