HT3810 K1 SA (HT3810) - Honda Lawn Tractor, Made in Japan (SN: HT3810-5100001 - HT3810-5199999) CUTTER HOUSING + BELT COVER (HT3810/K1/3813) Parts Diagram

Lawn Tractor, Made in Japan

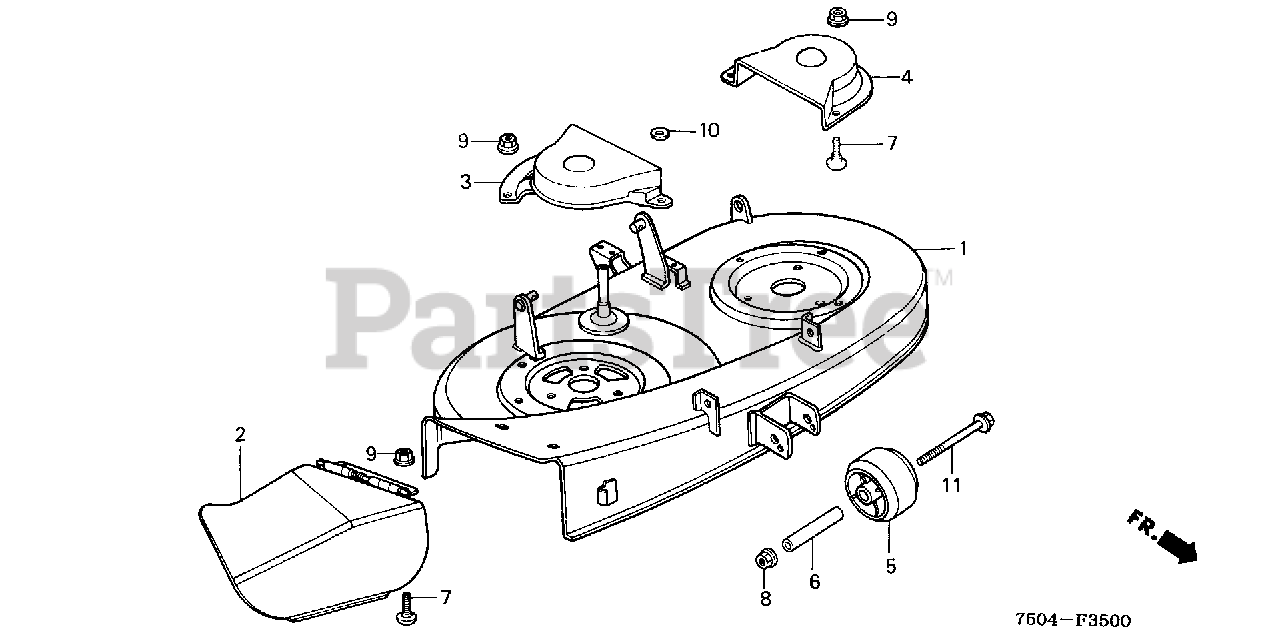

CUTTER HOUSING + BELT COVER (HT3810/K1/3813) Parts Diagram

  • Title
1

Honda 76110-750-010

HOUSING, CUTTER

$

$

Currently unavailable

2

Honda 76150-750-000ZA

ADAPTER, DISCHARGE

$

$

Currently unavailable

3

Honda 76155-750-010ZA

SEE PART DETAILS - PRI; COVER, R. BELT

$

$

Not available

4

Honda 76156-750-000ZA

SEE PART DETAILS - PRI; COVER, L. BELT *NH35M* (CLOUD SILVER METALLIC)

$

$

Not available

5

Honda 76231-750-000

ROLLER, ANTI-SCALP

$

$

Not available

6

Honda 76232-750-000

COLLAR, ANTI-SCALP ROLLER

$6.99

$

Usually ships in 3-6 days

0

7

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

8

Honda 90304-GE8-003

NUT, U (10MM)

$4.99

$

In Stock, only 3 left!

0

9

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

10

Honda 94101-08800

SEE PART DETAILS - SUP; WASHER, PLAIN (8MM)

$2.49

$

In Stock, only 3 left!

0

11

Honda 95801-10110-00

BOLT, FLANGE (10X110)

$

$

Not available
