HT06024GNAX - Honeywell 60kW Home Standby Generator (SN: 6931587 - 6931587) (2012) Muffler Exh 2.4l G2 Turbo (0H3357) Parts Diagram

60kW Home Standby Generator

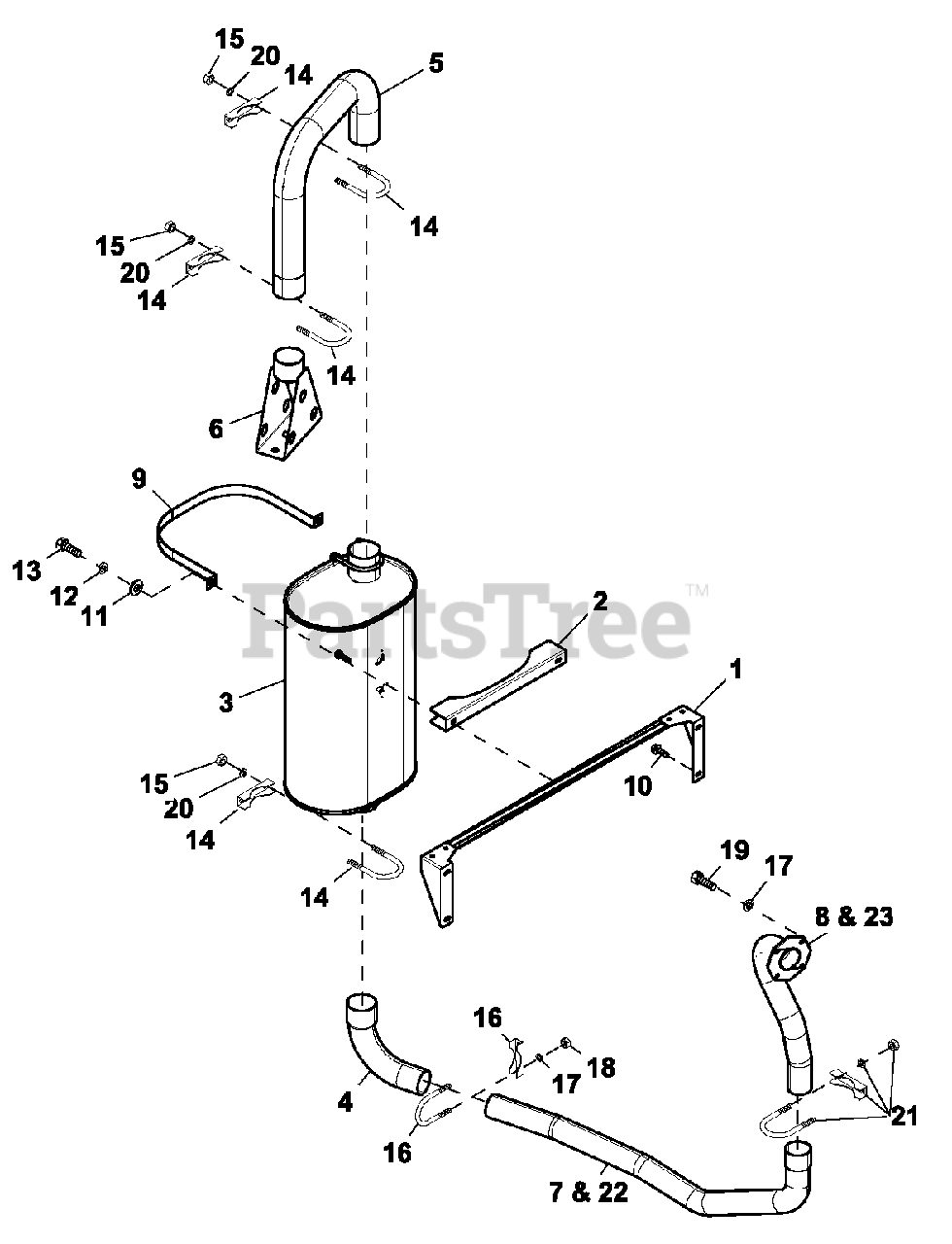

Muffler Exh 2.4l G2 Turbo (0H3357) Parts Diagram

  • Title
1

Generac 0G86870ST03

BRACKET MUFFLER

$124.99

$

Usually ships in 2-12 days

0

2

Generac 0G8686

BRACKET STIFFENER

$64.99

$

Usually ships in 2-12 days

0

3

Generac 0G6150

MUFFLER 60kW

$

$

Not available

4

Generac 0G0113

EXHAUST ELBOW

$298.99

$

Usually ships in 2-12 days

0

5

Generac 0F2808D

EXHAUST PI PE

$133.99

$

Usually ships in 2-12 days

0

6

Generac 0G0007

DIFFUSER EXHAUST WELDMENT

$103.99

$

Usually ships in 2-12 days

0

7

Generac 0H3371

PI P E EXHAUST 2.4L 60kW

$191.99

$

Usually ships in 2-12 days

0

8

Generac 0H3372

U P P ER EXHAUST PI P E ASM

$209.99

$

Usually ships in 2-12 days

0

9

Generac 0G8685

STRAP MUFFLER

$40.99

$

Usually ships in 2-12 days

0

10

Generac 0C2454

SCREW THFM6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

11

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

12

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

13

Generac 049721

SCREW HHC M6-1.0 X 35 G8.8 BLK
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

14

Generac 080762

BOLT U 3 /8 -1 6 X 2 .6 2

$

$

Not available

15

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

16

Generac 036797

BOLT U 5 /1 6 -1 8 X 2 .2 5

$

$

Not available

17

Generac 070006

WASHER LOCK M8 SS
(Superseded to G070006)

$1.49

$

Usually ships in 2-12 days

0

18

Generac 022259

NUT HEX 5/16-18 STEEL
(Superseded to G022259)

$1.49

$

Usually ships in 2-12 days

0

19

Generac 0A6928

SCREW HHC M8-1.25 X 20 SS

$3.49

$

Usually ships in 2-12 days

0

20

Generac 022237

WASHER LOCK 3/8

$

$

Not available

21

Generac 0H1310

BOLT U 3/8-16 X 2.30 W/SADDLE

$24.99

$

Usually ships in 2-12 days

0

22

Generac 0F3794

EXHAUST BLANKET 600MM LONG

$178.99

$

In Stock, only 1 left!

0

23

Generac 0G3770

EXHAUST BLANKET 737MM

$211.99

$

Usually ships in 2-12 days

0
