HT04554KNAX - Honeywell 45kW Home Standby Generator (SN: 9400726 - 9400726) (2014) Ev Cooling System 5.4l C2 (0J5601A) Parts Diagram

45kW Home Standby Generator

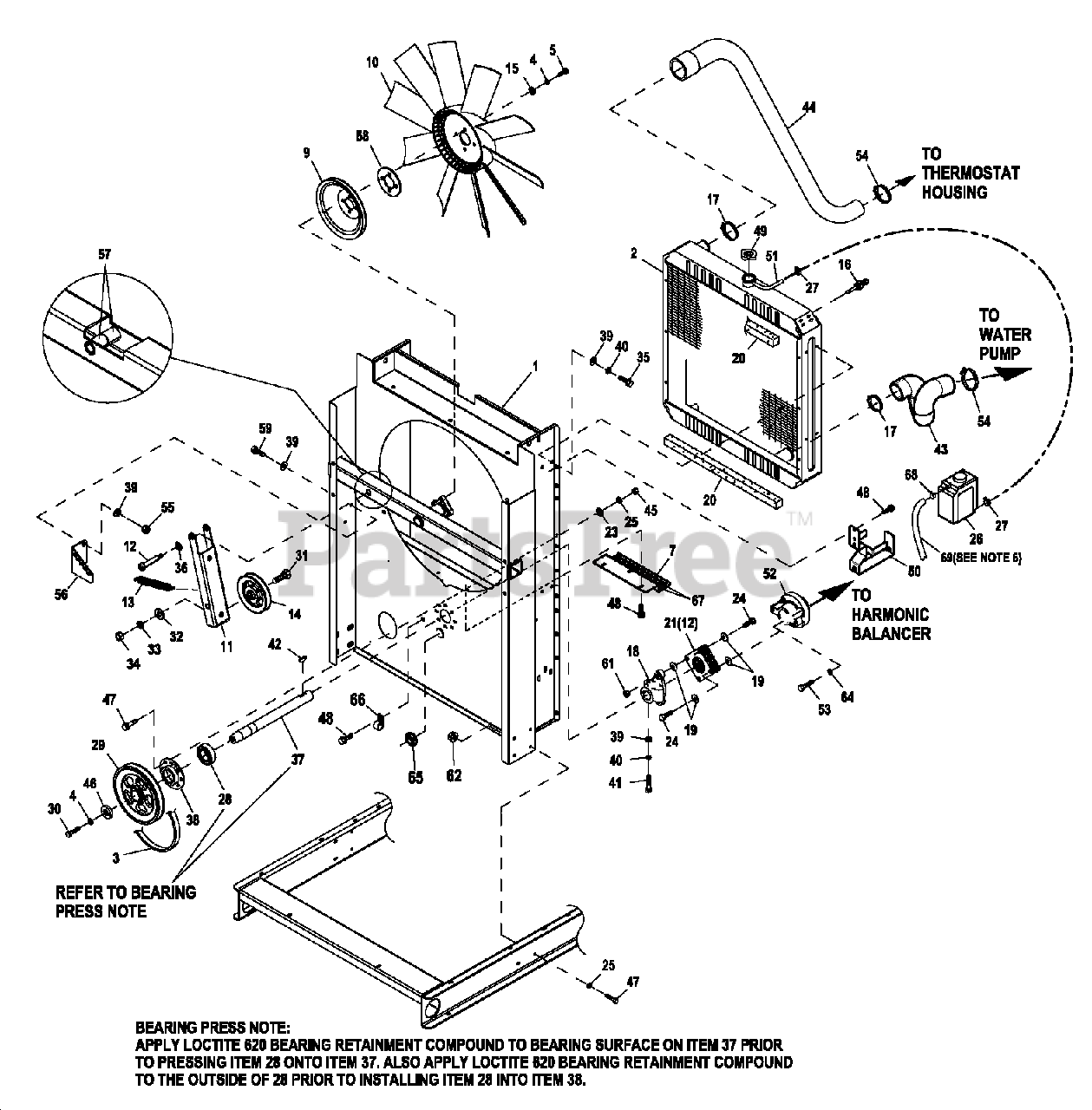

Ev Cooling System 5.4l C2 (0J5601A) Parts Diagram

  • Title

1

0J57770ST0R

WELDMENT RADIATOR SUPPORT C2

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

2

Generac 0F2608D

RADIATOR 598 X 568 X 19.CPL LH

$1304.04

$

Usually ships in 2-12 days

0

3

Generac 0J6435

V-BELT A51 (53INO.C)

$48.99

$

Usually ships in 2-12 days

0

4

Generac 046526

WASHER LOCK M10

$

$

Not available

5

Generac 059981

SCREW HHC M10-1.5X 30 G10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

7

0J89380ST0R

SHIELD RADIATOR C2

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

9

Generac 0J6178

PULLEY FAN, V-GROOVE

$66.99

$

Usually ships in 2-12 days

0

10

Generac 0F4011

FAN COOL 22" DIA 10 BLADE LH

$132.99

$

Usually ships in 2-12 days

0

11

Generac 0H20620ST03

ARM BELT TENSIONER

$74.99

$

Usually ships in 2-12 days

0

12

Generac 0H2051

SHOULDER BOLT 1/2 X 2-1/4"

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$9.99

$

Usually ships in 2-12 days

0

13

Generac 0F2862

SPRING TENSION CPL

$9.99

$

Usually ships in 2-12 days

0

14

Generac 0F2560

PULLEY V-BELT 4" FLANGED

$27.99

$

In Stock, only 1 left!

0

15

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0H1827

PROBE COOLANT LEVEL 3/8-18NPTF

$48.99

$

Usually ships in 2-12 days

0

17

Generac 035685

CLAMP HOSE #28 1.32-2.25

$

$

Not available

18

Generac 0F2561

HUB FLEX PLATE

$48.99

$

Usually ships in 2-12 days

0

19

Generac 0C8145

WASHER FLEX (THIN)

$2.99

$

Usually ships in 2-12 days

0

20

Generac 052250

TAPE FOAM 1 X 1 (26.75" LG)

$

$

Not available

21

Generac 0C7043

DISK FLEX

Note: IF YOU NEED KIT ORDER P/N 0E33940SRV.KIT CONTAINS QTY-12 OF 0C7043.

$

$

Not available

23

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

24

Generac 0C8146

SCREW HHC 5/16-24X1.124

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$2.49

$

Usually ships in 2-12 days

0

25

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

26

Generac 076749

TANK COOLANT RECOVERY
(Superseded to G076749)

$39.99

$

Usually ships in 2-12 days

0

27

04803 1C

CLAMP HOSE BAND 1/4

Note: INCLUDED WITH I/N 26.

$

$

Not available

28

Generac 031971

BEARING #6205 2NSE C3 E SRI2 S
(Superseded to G031971)

$35.99

$

Usually ships in 2-12 days

0

29

Generac 0F4030

PULLEY 6" DIA MACHINED

$49.99

$

Usually ships in 2-12 days

0

30

Generac 042911

SCREW HHC M10-1.5X30 G8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

31

Generac 0F2872

SCREW HHC 1/2-13X2" G8

$19.99

$

Usually ships in 2-12 days

0

32

Generac 022304

WASHER FLAT 1/2 ZINC
(Superseded to G022304)

$7.49

$

In Stock, Qty 10

0

33

Generac 022195

WASHER LOCK 1/2

$

$

Not available

34

Generac 022196

NUT HEX 1/2-13 STEEL

$

$

Not available

35

Generac 0F8651

SCREW HHFC M8-1.25 X 20 W/M6

$1.99

$

Usually ships in 2-12 days

0

36

Generac 052677

WASHER NYLON .50 X .87 X .06

$

$

Not available

37

Generac 0F9867B

SHAFT FAN DRIVE

$53.99

$

Usually ships in 2-12 days

0

38

Generac 0F2461

RETAINER BEARING

$13.99

$

Usually ships in 2-12 days

0

39

Generac 022145

WASHER FLAT 5/16-M8ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

40

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

41

Generac 039287

SCREW HHC M8-1.25X 45 C8.8

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$

$

Not available

42

Generac 082774

KEY WOODRUFF 4 X19D
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

43

Generac 0J5742

HOSE LOWER RAD CPL C2 5.4L

$71.99

$

Usually ships in 2-12 days

0

44

Generac 0J5751

HOSE RADIATOR UPPER C2 CPL

$105.99

$

Usually ships in 2-12 days

0

45

Generac 049813

NUT HEX M 6X1.0 G8 YELCHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

46

Generac 052644

SPACER .5X1.5X.25STL/ZINC

$

$

Not available

47

Generac 0C8566

SCREW HHFC M6-1.0X 2 0 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0

48

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

49

Generac 090283

CAP RADIATOR 13 PSI

$

$

Not available

50

0L01050ST0R

BRACKET COOLANT TANK

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

51

Generac 029032

HOSE 9/32 ID (60"LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

52

Generac 0H5380

COUPLING FLEX HUB MACHINED

$141.99

$

Usually ships in 2-12 days

0

53

Generac 0F2012

SCREW HHC M12-1.5X 70 C10.9

Note: APPLY MEDIUM STRENGTH BLUE THREAD LOCKING FLUID TO THREADS.

$7.49

$

Usually ships in 2-12 days

0

54

Generac 099502

CLAMP HOSE #24 B1.06-2.00

$

$

Not available

55

Generac 049820

NUT HEX LOCK M8-1.25 NY INS
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

56

Generac 0H30880ST03

BRACKET TENSIONER SPRING

$55.99

$

Usually ships in 2-12 days

0

57

Generac 0H2844

BEARING SLEEVE 1/2/X 3/4X1

Note: ITEM 57 IS INCLUDED WITH ITEM 1.

$13.99

$

Usually ships in 2-12 days

0

58

Generac 0G53150AL0R

SPACER CPL COOLING FAN 1/8"

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR) MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$11.99

$

Usually ships in 2-12 days

0

59

Generac 039253

SCREW HHC M8-1.25X20 C8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

61

Generac 0C8165

NUT HEX LOCK 5/16-24 NY INS

$0.99

$

Usually ships in 2-12 days

0

62

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

63

Generac 029333A

TIE WRAP UL 7.4" X .19" BLK (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

64

Generac 051769

WASHER LOCK M12

$

$

Not available

65

Generac 072252

GROMMET 1.37 X .06 X 1.00

Note: ONLY REQUIRED ON CATALYZED UNITS.

$

$

Not available

66

Generac 055934M

CLAMPSTL/VNL .7 5X .3 4 3Z

Note: ONLY REQUIRED ON CATALYZED UNITS.

$3.49

$

Usually ships in 2-12 days

0

67

Generac 089961

FOAM STRIP 3/4"WIDE X 3/16"THK (12"LG)

$

$

Not available

68

Generac 048031C

CLAMP HOSE BAND .50

$0.99

$

In Stock, Qty 5

0

69

Generac 029032

HOSE 9/32 ID (27"LG)
(Superseded to G029032)

$6.49

$

Usually ships in 2-12 days

0

70

085662

TIE WRAP UL 14.6 X .14 BLK (NOT SHOWN)

$

$

Not available
