HT04554GNAX - Honeywell 45kW Home Standby Generator (SN: 7064094 - 7064094) (2012) Ev Fuelsys 48kw 5.4l C2 (0J5603A) Parts Diagram

45kW Home Standby Generator

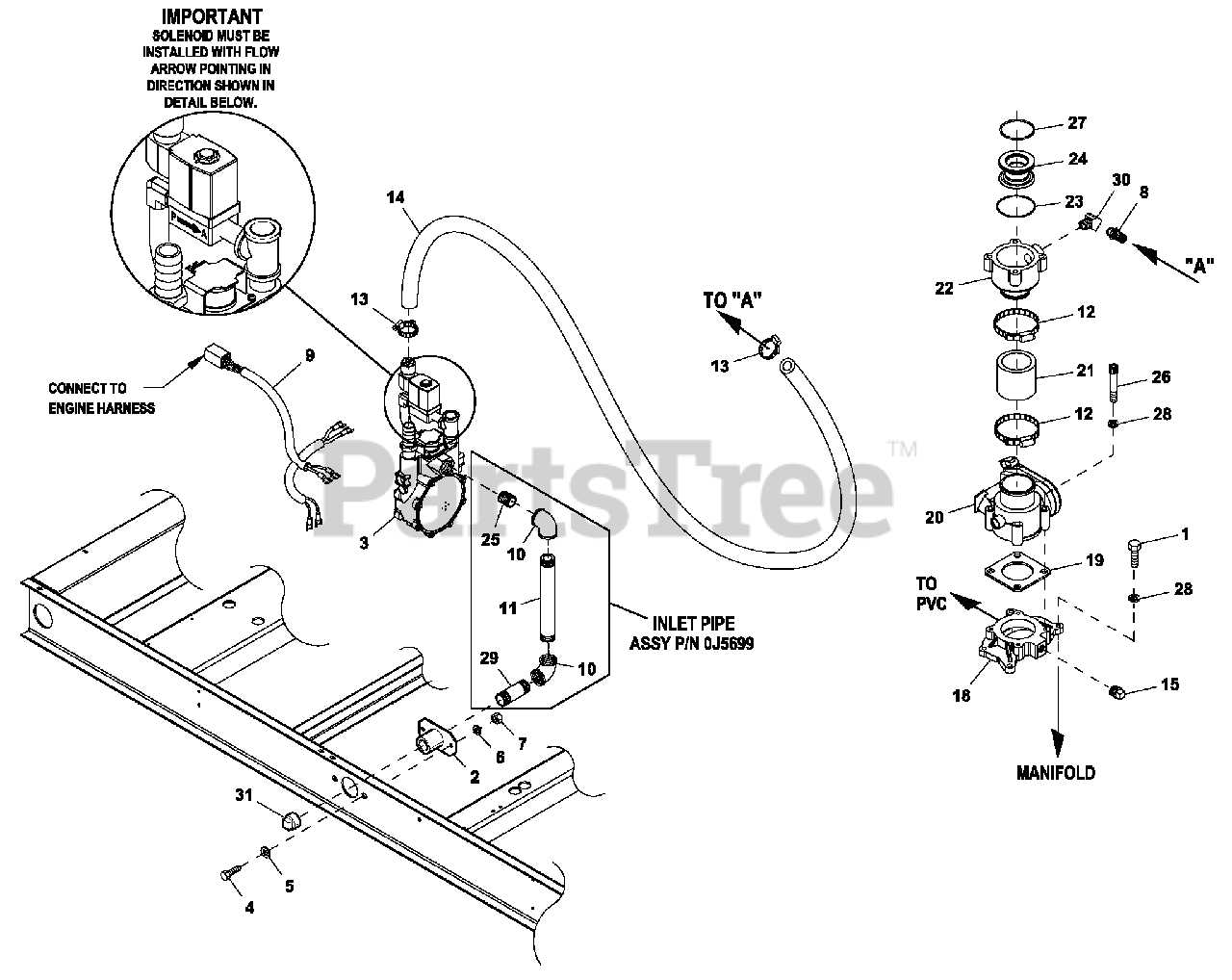

Ev Fuelsys 48kw 5.4l C2 (0J5603A) Parts Diagram

  • Title
1

Generac 045757

SCREW HHC M6-1.0 X 25 G8.8
(Superseded to G045757)

$0.99

$

Usually ships in 2-12 days

0

2

Generac 075580

FLANGE FUEL INLET

$

$

Not available

3

0J6348

REGULATOR ASSY 5.4L 48 KW 49ST

$

$

Not available

0J6348A

REGULATOR ASSY 5.4L 48 KW EM

$

$

Not available

4

Generac 039253

SCREW HHC M8-1.25 X 20 G8.8
(Superseded to G039253)

$2.99

$

In Stock, only 2 left!

0

5

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

6

Generac 022129

WASHER LOC KM8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

8

Generac 047527

BARBED STR 1/2NPTX3/4

$

$

Not available

9

Generac 0H7436

HARN FUEL JUMPER SINGLE REG

$96.99

$

Usually ships in 2-12 days

0

10

Generac 026812

ELBOW 90D 3/4 NPT

$

$

Not available

11

Generac 0E0697

NIPPLE PIPE 3/4NPTX 5-1/2 LG

$24.99

$

Usually ships in 2-12 days

0

12

Generac 042561

CLAMP HOSE #36 1.88-2.75
(Superseded to G042561)

$4.99

$

Usually ships in 2-12 days

0

13

Generac 057823

CLAMP HOSE #10 .56-1.06
(Superseded to G057823)

$3.49

$

Usually ships in 2-12 days

0

14

Generac 059057

HOSE 3/4 ID SAE-30R2 (40" LG)

$

$

Not available

15

Generac 026073A

PLUG STD PIPE 1/4 STEEL SQ HD

$1.99

$

Usually ships in 2-12 days

0

18

Generac 0F2756

MACHINING INTA KE ADAPTOR 40MM

$170.99

$

Usually ships in 2-12 days

0

19

Generac 0E6586

GAS KET BOSCH 32 & 40

$2.49

$

Usually ships in 2-12 days

0

20

Generac 0E4394

ACTUATOR BOSCH 40 GOVERNOR

$701.99

$

In Stock, only 1 left!

0

21

Generac 0K9704

HOSE COOLING 2IN ID 20R4 (2IN)

$27.99

$

Usually ships in 2-12 days

0

22

Generac 0G4573B

MIXER ACTUATOR 40MM MACHINED

$42.99

$

Usually ships in 2-12 days

0

23

Generac 0E7121

O-RING 47.625 ID X 2.38 WIDTH

$29.99

$

Usually ships in 2-12 days

0

24

Generac 0F7790E

VENTURI THROTTLE 26MM

$4.49

$

Usually ships in 2-12 days

0

25

Generac 026915

NIPPLE CLOSE 3 /4X 1 .3 75

$

$

Not available

26

Generac 0D2157

SCREW SHC M6-1.0 X 50 C8.8

$1.49

$

Usually ships in 2-12 days

0

27

Generac 0F2119

O-RING 45.63 ID X 2.62 WIDTH

$1.99

$

Usually ships in 2-12 days

0

28

Generac 022097

WASHER LOC KM6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

29

Generac 026490

NIPPLE PIPE 3/4NPT X 2

$

$

Not available

30

Generac 0E8286

ELBOW 45D STREET 1/2NPT BRASS

$100.99

$

Usually ships in 2-12 days

0

31

Generac 025655

PLUG STD PIPE 3/4 STEEL SQ HD

$

$

Not available
