HT04542GNAX - Honeywell 45kW Home Standby Generator (SN: 6708400 - 6708400) (2011) Conbox C2 Cpl (0H7326) Parts Diagram

45kW Home Standby Generator

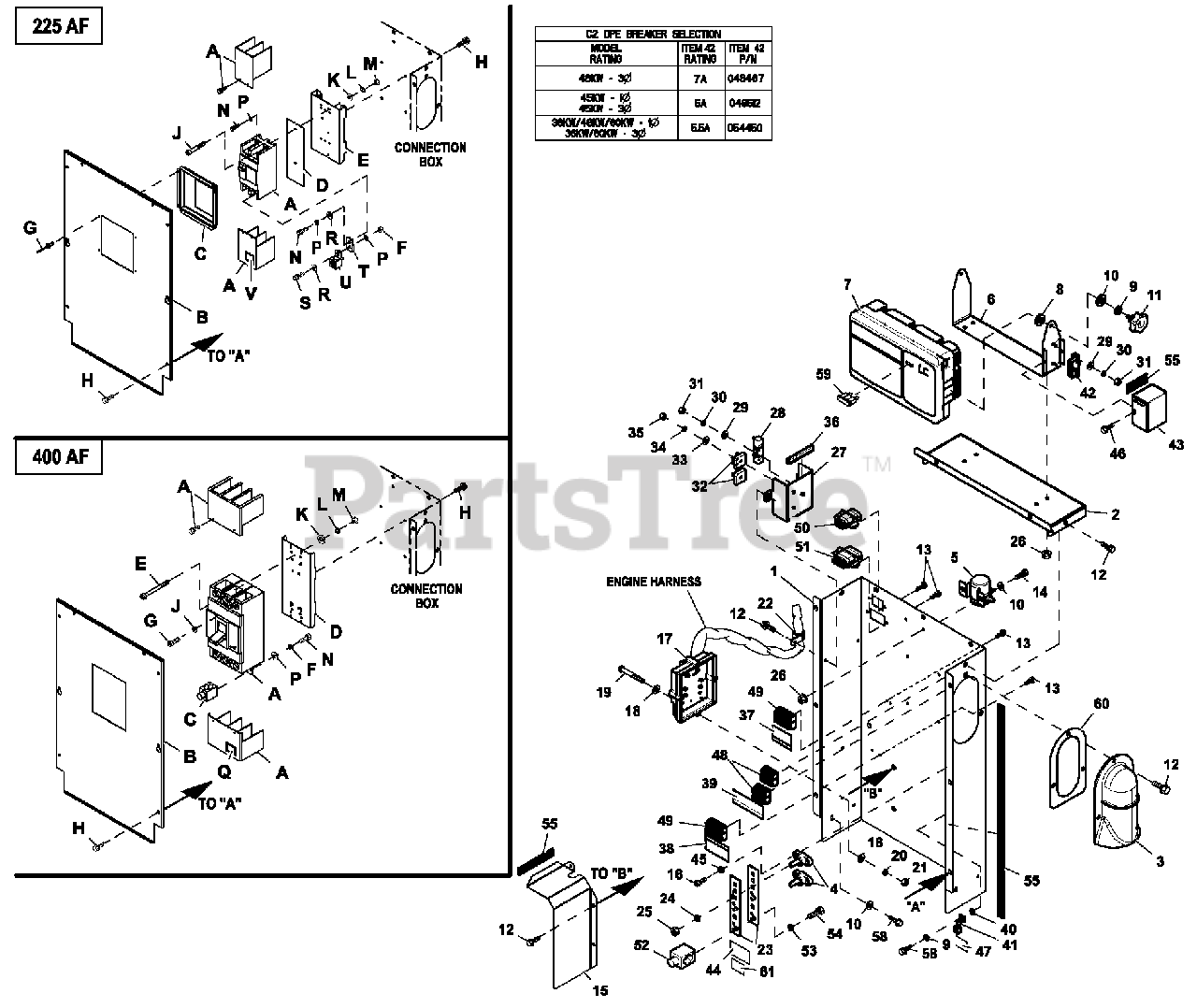

Conbox C2 Cpl (0H7326) Parts Diagram

  • Title

1

0H6266

BACK PANEL CONBOX SUPPORT C2

$

$

Not available

2

Generac 0H6265

TOP PANEL CONBOX SUPPORT C2

$56.99

$

Usually ships in 2-12 days

0

3

Generac 0H6160

COVER WIRE ENTRY CONBOX

$17.99

$

Usually ships in 2-12 days

0

4

Generac 057073

JUNCTION BLOCK 3/8-16

$

$

Not available

5

Generac 056739

RELAY SOLENOID 12VDC PNL MNT
(Superseded to G056739)

$163.99

$

Usually ships in 2-12 days

0

6

0H67330ST0R

BRACKET GIMBAL CONTROL PNL RAW

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

7

Generac 0H7668B

ASSY CTRL PROGRAMMED

Note: ORDER 0H7668DSRV

$

$

Currently unavailable

8

Generac 0A2115

WASHER FLAT NYLON 0.257 X 0.625

$0.99

$

Usually ships in 2-12 days

0

9

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

10

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

11

Generac 0H7115

KNOB M6-1.0 CONTROL PANEL

$8.49

$

Usually ships in 2-12 days

0

12

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

13

Generac 0F5458

SCREW HHSP #10 X 3/8 HI-LOW

$0.99

$

Usually ships in 2-12 days

0

14

Generac 042568

SCREW HHC M6- 1.0 X 20 C8.8

$

$

Not available

15

0H88390ST0R

SHIELD HIGH/LOW C2 RAW

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

16

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

$0.99

$

Usually ships in 2-12 days

0

17

Generac 0H6169B

ASSY PROG 2010 IGN MOD 6 CYL

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$766.99

$

Usually ships in 2-12 days

0

18

Generac 023897

WASHER FLAT #10 ZINC

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$

$

Not available

19

036943

SCREW PPHM #10-32X2

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$

$

Not available

20

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$3.49

$

In Stock, only 1 left!

0

21

Generac 022158

NUT HEX #10-32 STEEL

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$

$

Not available

22

Generac 055934D

CLAMP STL/VNL 1.06 X .406 Z

Note: ITEMS INCLUDED WITH 4.2L MODELS ONLY.

$3.99

$

Usually ships in 2-12 days

0

23

Generac 0D5464B

NEUTRAL BLOCK 390/200-400A

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$

$

Not available

24

Generac 022237

WASHER LOCK 3/8

$

$

Not available

25

Generac 022241

NUT HEX 3/8-16 STEEL

$

$

Not available

26

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

27

Generac 0H6267

COVER VOLTAGE SHIELD

$50.99

$

Usually ships in 2-12 days

0

28

Generac 0F5752F

RES WW 15R 5% 25W QK CONN

$25.99

$

Usually ships in 2-12 days

0

29

Generac 052777

WASHER FLAT M3

$

$

Not available

30

Generac 043182

WASHER LOCK M3
(Superseded to G043182)

$0.99

$

Usually ships in 2-12 days

0

31

Generac 051714

NUT HEX M3-0.5 G8 CLEAR ZINC
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

32

Generac 0D7177V

DIODE BRIDGE 1P 35A 1000V

$21.99

$

Usually ships in 2-12 days

0

33

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

34

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

35

Generac 051716

NUT HEX M5-0.8 G8 CLEAR ZINC
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

36

Generac 056326

TRIM VINYL BLACK 1/8GP (3"LG)

$

$

Not available

37

Generac 0J0489

DECAL CUSTOMER POWER CONNECT

$1.99

$

Usually ships in 2-12 days

0

38

Generac 0H7292

DECAL CUSTOMER CONTROL CONNECT

$0.99

$

Usually ships in 2-12 days

0

39

Generac 0H7293

DECAL CONBOX TB1 CONNECTIONS

$1.49

$

Usually ships in 2-12 days

0

40

Generac 026850

WASHER LOCK EXT 1/4 STL

$

$

Not available

41

Generac 055414

LUG SLDLSS #2-#8 X 17/64 CU
(Superseded to G055414)

$5.49

$

In Stock, only 2 left!

0

42

SEE CHART

CIRCUIT BREAKER

Note: SEE "C2 DPE BREAKER SELECTION" TABLE.

$

$

Not available

43

0H81040AS0R

COVER DPE BREAKER NEXUS RAW

Note: SHEET METAL PARTS LISTED IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AND COLOR REFER TO AS400 BOM., CUSTOMER: WHEN ORDERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AND COLOR (FOR REFERENCE SEE GUIDELINE 0H7169).

$

$

Not available

44

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

45

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

46

Generac 045764

SCREW HHTT M4-0.7 X 8 ZP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

47

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

48

Generac 0D7393T

TERM BLOCK 3P UL 12-20AWG

Note: ITEMS INCLUDED WITH HARNESS P/N 0H6692.

$6.99

$

Usually ships in 2-12 days

0

49

Generac 0D7393U

TERM BLOCK 4P UL 12-20AWG

Note: ITEMS INCLUDED WITH HARNESS P/N 0H6692.

$14.99

$

Usually ships in 2-12 days

0

50

Generac 0F5376S0AR

MX150L SLRRMNT 22-18 8P W/O GA

Note: ITEMS INCLUDED WITH HARNESS P/N 0H6692.

$21.99

$

Usually ships in 2-12 days

0

51

Generac 0F5396S0AR

MX150L SLRRMNT 22- 18 12P W/OGA

Note: ITEMS INCLUDED WITH HARNESS P/N 0H6692.

$23.99

$

Usually ships in 2-12 days

0

52

Generac 0A7822

LUG SLDLSS 600/250-1/0X1/4-28

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$46.99

$

Usually ships in 2-12 days

0

53

Generac 083896

WASHER LOCK 1/4- M6 SS
(Superseded to G083896)

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$7.99

$

Usually ships in 2-12 days

0

54

Generac 045335

SCREW HHC 1/4-28 X 3/4 G5

Note: ITEMS INCLUDED WITH NEUTRAL BLOCK P/N 0D5464B.

$

$

Not available

55

Generac 029289

TAPE ELEC 1/2 FOAM (69"LG)

$

$

Not available

56

Generac 0F6146

HANG TAG 2 WIRE START

Note: (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

57

Generac 0H6692

HARN CONBOX NEXUS

Note: (NOT SHOWN)

$272.99

$

Usually ships in 2-12 days

0

58

Generac 0D6029

SCREW HHTT M6-1.0 X 16 ZYC

$18.99

$

Usually ships in 2-12 days

0

59

Generac 0D7178T

FUSE ATO TYPE 7.5AMP (BROWN)

$2.49

$

In Stock, Qty 6

0

60

Generac 0J3060

GASKET WIRE ENTRY COVER

$7.49

$

Usually ships in 2-12 days

0

61

Generac 0H8006

DECAL CAUTION ELEC SHOCK SM

$2.49

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (225AF)

$

$

Not available

A

Generac 0G5250

CB 175A 2 POLE 240V 225AF

$402.99

$

Usually ships in 2-12 days

0

B

Generac 0H7356

COVER CB C2 CPL

$161.99

$

Usually ships in 2-12 days

0

C

Generac 0F4186AGS0R

COVER CB DISH 2P G 225AF

$49.99

$

Usually ships in 2-12 days

0

D

Generac 0F8432A

INSULATOR CB 2P 225AF

$14.99

$

Usually ships in 2-12 days

0

E

Generac 0H7311

STANDOFF CB BOX CONBOX

$50.99

$

Usually ships in 2-12 days

0

F

Generac 045771

NUT HEX M8-1.25 G8 CLEAR ZINC
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

G

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 053640

SCREW RHM #8-32X3-1/4

$

$

Not available

K

Generac 038150

WASHER FLAT #8 ZINC
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

L

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

M

Generac 022471

NUT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

N

Generac 049897

SCREW SHC M8-1.25 X 20 G8

$

$

Not available

P

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

R

Generac 022145

WASHER FLAT 5/16-M8 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

S

Generac 058306

SCREW SHC M8-1.25 X 25 C12.9
(Superseded to G058306)

$9.99

$

Usually ships in 2-12 days

0

T

Generac 0F8843

BUS BAR 200A LUG ADAPTOR

$29.99

$

Usually ships in 2-12 days

0

U

Generac 0F8451

LUG SLDLSS 300 MCM-6 AL/CU

$16.99

$

Usually ships in 2-12 days

0

V

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

UL CIRCUIT BREAKER (400AF)

$

$

Not available

A

Generac 0F4153

CB 0250A 3P 480V G 400AF

$1740.99

$

Usually ships in 2-12 days

0

B

Generac 0H6735

COVER CB 400AF C2 CONBOX

$170.99

$

Usually ships in 2-12 days

0

C

Generac 0A7822

LUG SLDLSS 600/250-1/0X1/4-28

$46.99

$

Usually ships in 2-12 days

0

D

Generac 0H6734

STANDOFF CB MOUNT CONBOX

$57.99

$

Usually ships in 2-12 days

0

E

Generac 042419

SCREW RHM 10-32X4

$

$

Not available

F

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

G

Generac 052647

SCREW SHC M10-1.5 X 25 C12.9

$

$

Not available

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 046526

WASHER LOCKM10

$

$

Not available

K

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

L

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

M

Generac 022158

NUT HEX #10-32 STEEL

$

$

Not available

N

Generac 023334

SCREW HHC 1/4-28 X 1/2 G5

$

$

Not available

P

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

Q

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0
