HT03524GNAX - Honeywell 35kW Home Standby Generator (SN: 6798528 - 6798528) (2011) EV Enclosure C2 (0J2818) Parts Diagram

35kW Home Standby Generator

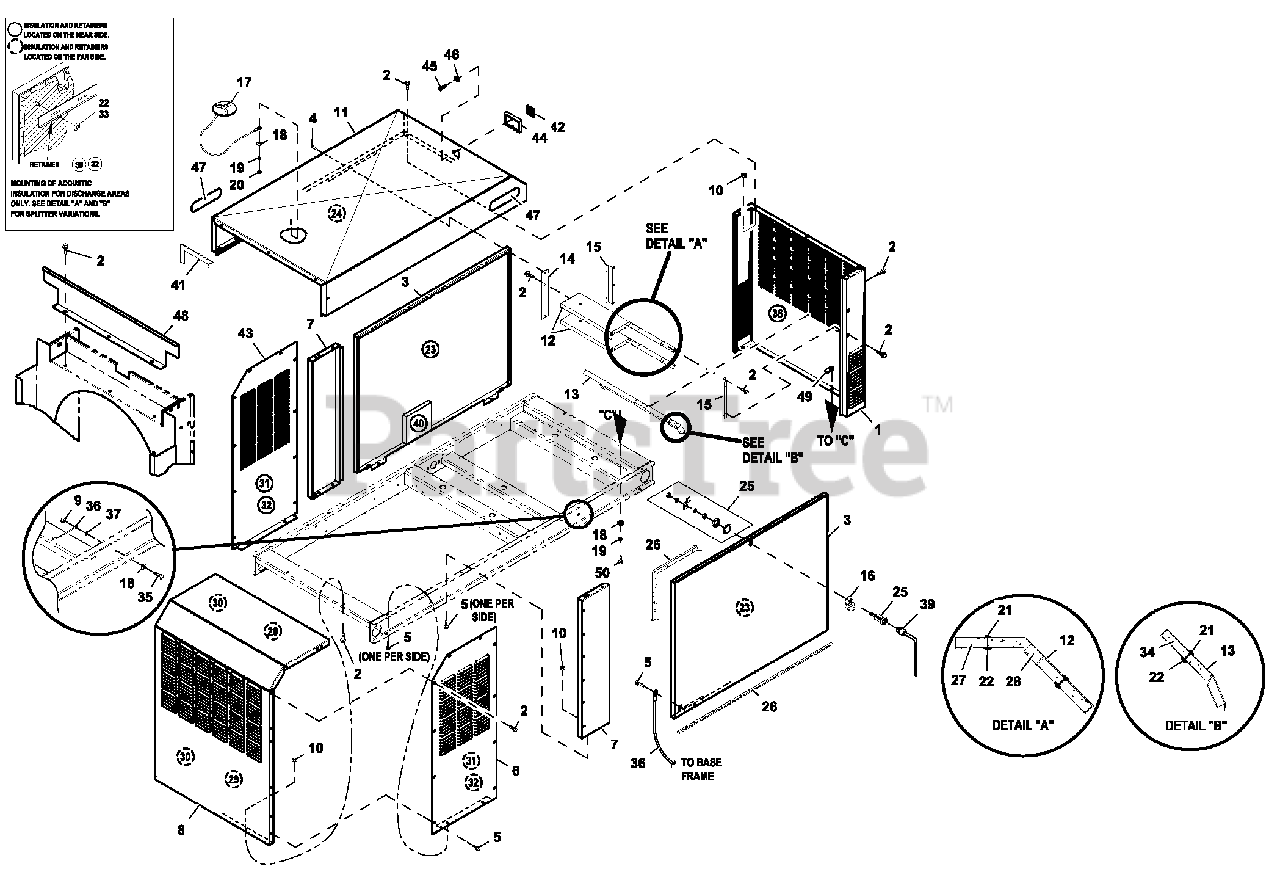

EV Enclosure C2 (0J2818) Parts Diagram

  • Title

1

0G00450AL0R

REAR WRAP C2 CPL

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

2

Generac 0C2454

SCREW THF M6-1 X 16 N WA Z/JS

Note: PANELS THAT FASTEN TO THE BASEFRAME (EXCEPT ITEM 1) MUST BE SECURED USING I/N 2 & 5 (THREA D FORMING FASTENERS) AN D I/N 10, (LOCK NUT). LOCK NUT IS TO BE INSTALLE D AFTER THREA D FORMING FASTENER HAS PENETRATE D THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL PANEL TO PANEL CONNECTIONS TO INCLUD E AT LEAST ONE CONNECTION POINT USING I/N 5 (THREAD FORMING FASTENER).

$3.49

$

Usually ships in 2-12 days

0

3

0F58490AL0R

D OOR C2

$

$

Not available

4

Generac 087233

RIVET POP.1875 X .450 SS

$

$

Not available

5

Generac 0E3257

SCREW TH-FRM M6 W/CAP SHKPRF W

Note: PANELS THAT FASTEN TO THE BASEFRAME (EXCEPT ITEM 1) MUST BE SECURED USING I/N 2 & 5 (THREA D FORMING FASTENERS) AN D I/N 10, (LOCK NUT). LOCK NUT IS TO BE INSTALLE D AFTER THREA D FORMING FASTENER HAS PENETRATE D THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL PANEL TO PANEL CONNECTIONS TO INCLUD E AT LEAST ONE CONNECTION POINT USING I/N 5 (THREAD FORMING FASTENER).

$5.49

$

Usually ships in 2-12 days

0

6

0J28190AL0R

D UCT DISCHARGE LH C2 AL

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

7

0F98330AL0R

FRONT CORNERS C2

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

8

0J28200AL0R

D UCT DISCHARGE MI D C2

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

9

Generac 049813

NUT HEX M 6X1.0 G8 YELCHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

10

Generac 077992

NUT HEX LOCK M6-1.0 SS NY INS
(Superseded to G077992)

Note: PANELS THAT FASTEN TO THE BASEFRAME (EXCEPT ITEM 1) MUST BE SECURED USING I/N 2 & 5 (THREA D FORMING FASTENERS) AN D I/N 10, (LOCK NUT). LOCK NUT IS TO BE INSTALLE D AFTER THREA D FORMING FASTENER HAS PENETRATE D THROUGH EXTRUSIONS IN ENCLOSURE PANELS. ALL PANEL TO PANEL CONNECTIONS TO INCLUD E AT LEAST ONE CONNECTION POINT USING I/N 5 (THREAD FORMING FASTENER).

$1.49

$

Usually ships in 2-12 days

0

11

0J28210AL0R

ROOF C2 CPL PVT LBL

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

12

Generac 0F2786

SLITTER C4

$220.99

$

Usually ships in 2-12 days

0

13

Generac 0F2785

SPLITTER LOWER C4

$183.99

$

Usually ships in 2-12 days

0

14

Generac 0F3364

SPLITTER STRINGER C2

$41.99

$

Usually ships in 2-12 days

0

15

Generac 0F4880

SUPPORT SPLITTER LHC2

$29.99

$

Usually ships in 2-12 days

0

16

Generac 0F5049

TAB PULL
(Superseded to 0F5049B)

Note: ORDER PART NUMBER 0F5049B

$11.99

$

Usually ships in 2-12 days

0

17

Generac 0F4487A

ASSEMBLY COVER ACCESS

Note: CUSTOMER ORDER P/N 0F4487ASRV.

$

$

Not available

18

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

19

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

20

Generac 022127

NUT HEX 1/4-20 STEEL
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

21

Generac 0F3072

INSULATION RETAINMENT HANGER

$0.99

$

Usually ships in 2-12 days

0

22

Generac 078115

WASHER SELF LOCKING DOME #4-40

$

$

Not available

23

Generac 0G5892

INSULATION D OOR C2

$211.99

$

Usually ships in 2-12 days

0

24

Generac 0G5892A

INSULATION ROOF TOP

$223.99

$

Usually ships in 2-12 days

0

25

Generac 0F5048D

VISE-ACTION LATCH SLOTTE D CIR

Note: FOR KEY ORDER 0F8869D

$31.99

$

Usually ships in 2-12 days

0

26

Generac 0E5968

GASKET EXTRUDED TRIM (328" LG)

Note: THIS IS SOLD BY THE FOOT. IF ORDERING FOR ROOF ORDER 11FT

$3.99

$

Usually ships in 2-12 days

0

27

Generac 0G5892D

INSULATION SPLITTER

$24.99

$

Usually ships in 2-12 days

0

28

Generac 0G5892C

INSULATION SPLITTER

$41.99

$

Usually ships in 2-12 days

0

29

Generac 0F4051C

INSULATION D UCT

$94.99

$

Usually ships in 2-12 days

0

30

Generac 0F3890B

RETAINER INSULATION (820)

$18.99

$

Usually ships in 2-12 days

0

31

Generac 0F4051B

INSULATION D UCT SI D ES

$55.99

$

Usually ships in 2-12 days

0

32

Generac 0F3890

RETAINER INSULATION (450)

$10.99

$

Usually ships in 2-12 days

0

33

Generac 078115A

WASHER SELF LOCKING DOME #8-32

$2.49

$

Usually ships in 2-12 days

0

34

Generac 0G5892E

INSULATION LOWER SPLITTER

$46.99

$

Usually ships in 2-12 days

0

35

Generac 042568

SCREW HHC M6-1.0X20 G8.8

$

$

Not available

36

Generac 0912970094

ASSY WIRE 14 AWG 34.8" GRN/YEL

$

$

Not available

37

Generac 022447

WASHER SHAKEPROOF INT 1/4

$

$

Not available

38

Generac 0G5892B

INSULATION REAR WRAP

$38.99

$

Usually ships in 2-12 days

0

39

Generac 0F8869D

KEY VISE-ACTION LATCH SLOT CIR

$11.99

$

In Stock, only 1 left!

0

40

Generac 0E5298L

FOAM 300 X 300 THERMAL ACO (APPLIES TO 4.2L UNITS ONLY)

$18.99

$

Usually ships in 2-12 days

0

41

Generac 066760

STRIP SEALANT 1/8X 1 (44.52+LG)
(Superseded to G066760)

$1.99

$

Usually ships in 2-12 days

0

42

0H1208C

RF COVER PLATE-PLASTIC- D RK GRY (OPTIONAL)

$

$

Not available

43

0J29470AL0R

D UCT DISCHARGE RH C2 AL

Note: SHEET METAL PARTS LISTE D IN THE BOM TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR), MANUFACTURING: FOR CORRECT MATERIAL AN D COLOR REFER TO AS400 BOM. CUSTOMER: WHEN OR D ERING REPLACEMENT PARTS ENTER BASE NUMBER (FIRST 6 DIGITS ONLY) IN THE SYSTEM FOR CORRECT MATERIAL AN D COLOR (FOR REFERENCE SEE GUI D ELINE 0H7169).

$

$

Not available

44

Generac 0G6019

ASSY ENCLOSURE GEN SI D E RF

Note: OBSOLETE OFFER MOBILE LINK OR LOCAL WIRELESS MONITOR IN ITS PLACE

$

$

Not available

45

Generac 084543A

SCREW PPPH M3X12

$1.49

$

Usually ships in 2-12 days

0

46

Generac 052777

WASHER FLAT M3

$

$

Not available

47

Generac 0J2791

BA DGE, HONEYWELL

$

$

Not available

48

Generac 0J4013

BAFFLE TOP EXHAUST C2 HW

$92.99

$

Usually ships in 2-12 days

0

49

Generac 0H0412

NUT UM6-1.0 GEOMET

$1.99

$

Usually ships in 2-12 days

0

50

Generac 0C8566

SCREW HHFC M6-1.0X 2 0 G8.8

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

$9.49

$

Usually ships in 2-12 days

0
