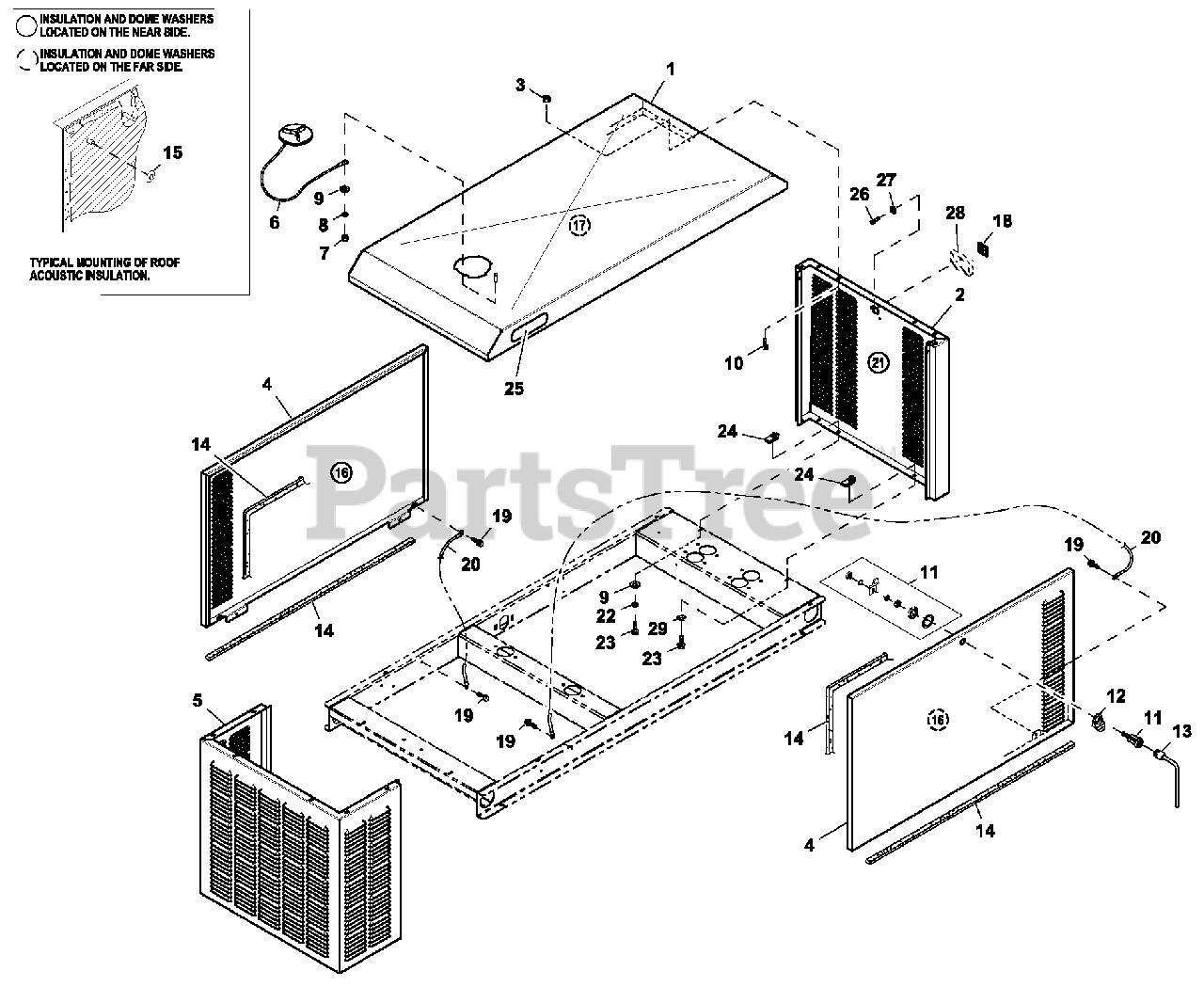

HT02524GNAX - Honeywell 25kW Home Standby Generator (SN: 7317416 - 8388664) (2013) EV Enclosure Cl Pvt Lbl (0J2794) Parts Diagram

0J22150AL0R

Note: SHEET METAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

Generac 0J14640AL0R

Note: SHEET METAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

Generac 077992

Note: ALL PANELS THAT FASTEN TO THE ROOF M UST BE SECURED USING l/N 10 (THREAD FORMING FASTENER) AND l/N 3 (LOCK NUT) AND TO INCLUDE AT LEAST ONE CONNECTION POINT USING l/N 19 (THREAD FOR MING FASTENER) WITH l/N 3 (LOCK NUT) TO EACH PANEL. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSION IN ENCLOSURE PANELS. ALL PANEL TO BASEFRA M E CONNECTIONS TO INCLUDE AT LEAST ONE CONNECTION POINT USING I/N 29 (WASHER SPECIAL).

Generac 0J14630AL0R

Note: SHEET METAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

Generac 0G33350AL0R

Note: SHEET METAL PARTS LISTED IN THE BO M TABLE ARE REPRESENTING GENERIC PARTS (NO COLOR)

Generac 0F4487A

Note: CUSTOMER ORDER P/N 0F4487ASRV.

Generac 022127

Generac 022097

Generac 022473

Generac 0C2454

Note: ALL PANELS THAT FASTEN TO THE ROOF M UST BE SECURED USING l/N 10 (THREAD FORMING FASTENER) AND l/N 3 (LOCK NUT) AND TO INCLUDE AT LEAST ONE CONNECTION POINT USING l/N 19 (THREAD FOR MING FASTENER) WITH l/N 3 (LOCK NUT) TO EACH PANEL. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSION IN ENCLOSURE PANELS. ALL PANEL TO BASEFRA M E CONNECTIONS TO INCLUDE AT LEAST ONE CONNECTION POINT USING I/N 29 (WASHER SPECIAL).

Generac 0F5048D

Note: FOR KEY ORDER 0F8869D

Generac 0F5049B

Generac 0F8869D

Generac 089961

Generac 078115

Generac 0H7518

Generac 0H7518A

0H1208C

Generac 0E3257

Note: ALL PANELS THAT FASTEN TO THE ROOF M UST BE SECURED USING l/N 10 (THREAD FORMING FASTENER) AND l/N 3 (LOCK NUT) AND TO INCLUDE AT LEAST ONE CONNECTION POINT USING l/N 19 (THREAD FOR MING FASTENER) WITH l/N 3 (LOCK NUT) TO EACH PANEL. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSION IN ENCLOSURE PANELS. ALL PANEL TO BASEFRA M E CONNECTIONS TO INCLUDE AT LEAST ONE CONNECTION POINT USING I/N 29 (WASHER SPECIAL).

Generac 0912970090

Generac 0H7518B

Generac 022097

Generac 0C8566

Note: ON MODELS 4858-0, 4857-0 AND 4806-0 USE 0C8563

Generac 0H0412

Generac 0J2791

Generac 084543A

Note: PART OF REMOTE WIRELESS.

Generac 052777

Note: PART OF REMOTE WIRELESS.

Generac 0G6019

Note: PART OF REMOTE WIRELESS.. OBSOLETE OFFER MOBILE LINK OR LOCAL WIRELESS MONITOR IN ITS PLACE

Generac 0A1658

Note: ALL PANELS THAT FASTEN TO THE ROOF M UST BE SECURED USING l/N 10 (THREAD FORMING FASTENER) AND l/N 3 (LOCK NUT) AND TO INCLUDE AT LEAST ONE CONNECTION POINT USING l/N 19 (THREAD FOR MING FASTENER) WITH l/N 3 (LOCK NUT) TO EACH PANEL. LOCK NUT IS TO BE INSTALLED AFTER THREAD FOR MING FASTENER HAS PENETRATED THROUGH EXTRUSION IN ENCLOSURE PANELS. ALL PANEL TO BASEFRA M E CONNECTIONS TO INCLUDE AT LEAST ONE CONNECTION POINT USING I/N 29 (WASHER SPECIAL).
