HT02524GNAX - Honeywell 25kW Home Standby Generator (SN: 7317416 - 8388664) (2013) Connection Box Cl Cpl (0H7234) Parts Diagram

25kW Home Standby Generator

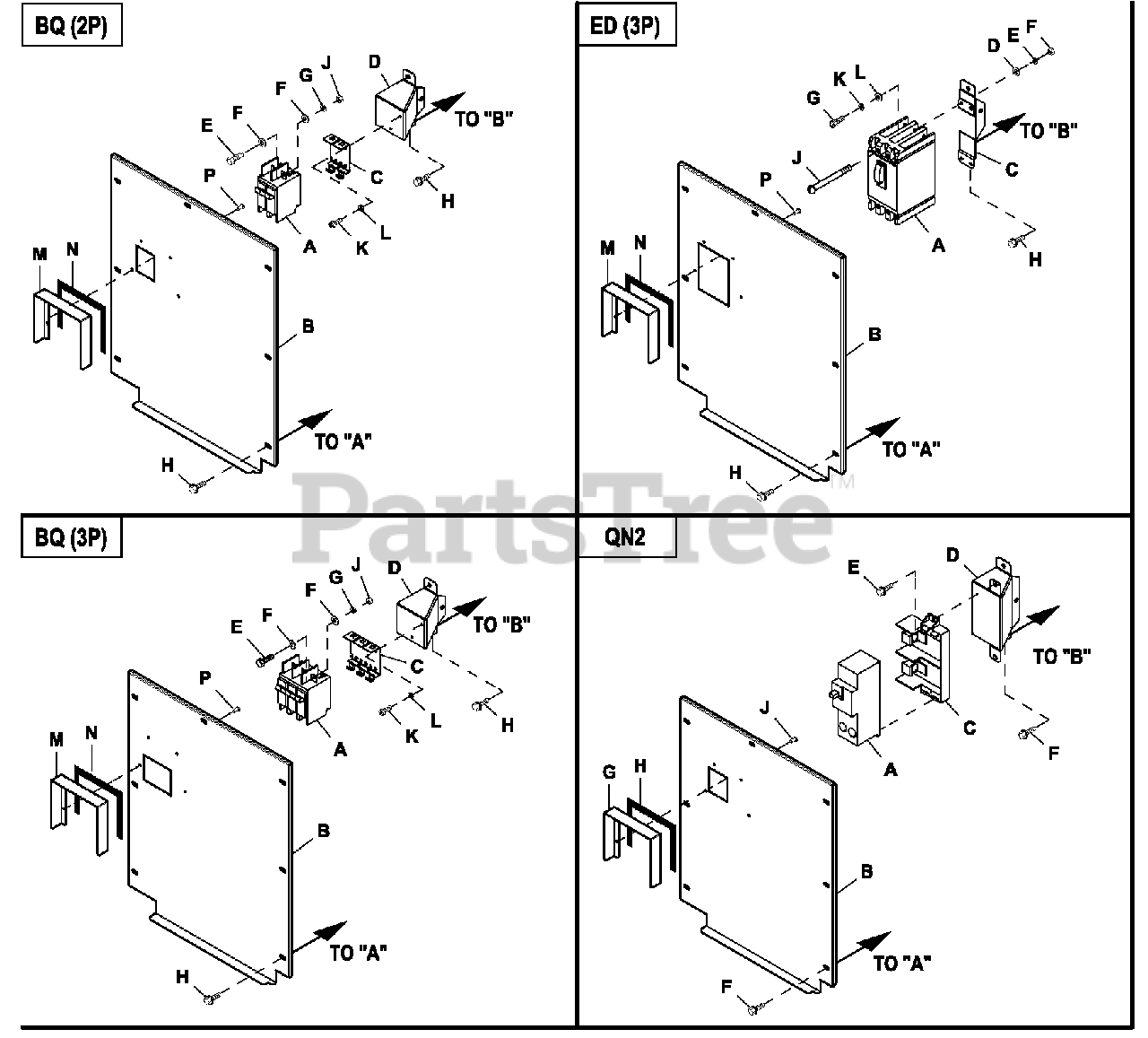

Connection Box Cl Cpl (0H7234) Parts Diagram

  • Title

UL CIRCUIT BREAKER (BQ 2P)

$

$

Not available

A

Generac 0D5543

CB 0090A 2P 240V S BQ2 LL

$213.99

$

Usually ships in 2-12 days

0

Generac 0D5544

CB 0100A2P 240V S BQ2 LL

$240.99

$

Usually ships in 2-12 days

0

Generac 0A2077

CB 0125A2P 240V S BQ2 LL

$545.99

$

Usually ships in 2-12 days

0

B

Generac 0H6842

COVER CB S BQ2C1 CONBOX

$388.99

$

Usually ships in 2-12 days

0

C

Generac 0E7890

BRKT CB MTG BACK

$11.99

$

Usually ships in 2-12 days

0

D

Generac 0G4497

CIRCUIT BREAKER SUPPORT (BQ)

$23.99

$

Usually ships in 2-12 days

0

E

Generac 052619

SCREW HHC M5-0.8 X 20 G8.8

$

$

Not available

F

Generac 023897

WASHER FLAT #10 ZINC

$

$

Not available

G

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 051716

N UT HEX M5-0.8 G8 CLEAR ZIN C
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

K

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

$0.99

$

Usually ships in 2-12 days

0

L

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

M

0J78230AS0R

SHIELD CB HA N DLE CO N BOX

$

$

Not available

N

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

P

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

UL CIRCUIT BREAKER (BQ 3P)

$

$

Not available

A

Generac 062812

CB 0080A 3P 240V S BQ3 LL

$

$

Not available

Generac 053691

CIRCT BRK 90 X 3 ITE BQ3-B090

$

$

Not available

Generac 040532

CB 0100A3P 240V S BQ3 LL

$

$

Not available

B

Generac 0H6843

COVER CB S BQ3C1 CONBOX

$141.99

$

Usually ships in 2-12 days

0

C

Generac 0E6002

MTG TRACK BQ SIEME N S CB 3P

$15.99

$

Usually ships in 2-12 days

0

D

Generac 0G4497

CIRCUIT BREAKER SUPPORT (BQ)

$23.99

$

Usually ships in 2-12 days

0

E

Generac 052619

SCREW HHC M5-0.8 X 20 G8.8

$

$

Not available

F

Generac 023897

WASHER FLAT#10ZIN C

$

$

Not available

G

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 051716

N UT HEX M5-0.8 G8 CLEAR ZIN C
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

K

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZP

$0.99

$

Usually ships in 2-12 days

0

L

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

M

0J78230AS0R

SHIELD CB HA N DLE CO N BOX

$

$

Not available

N

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

P

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

UL CIRCUIT BREAKER (ED 3P)

$

$

Not available

A

Generac 0D5552

CB 0050A 3P 480V S ED4 LL

$648.99

$

Usually ships in 2-12 days

0

Generac 0D5556

CB 0090A 3P 480V S ED4 LL

$766.99

$

Usually ships in 2-12 days

0

Generac 0D5557

CB 0100A3P 480V S ED4 LL

$766.99

$

Usually ships in 2-12 days

0

Generac 0D9693

CB 0125A3P 480V S ED4 LL

$1506.99

$

Usually ships in 2-12 days

0

B

Generac 0H6844

COVER CB S ED3C1 CONBOX

$143.99

$

Usually ships in 2-12 days

0

C

Generac 0G4498

CIRCUIT BREAKER SUPPORT (ED)

$4.49

$

Usually ships in 2-12 days

0

D

Generac 038150

WASHER FLAT #8 ZIN C
(Superseded to G038150)

$0.99

$

Usually ships in 2-12 days

0

E

Generac 022264

WASHER LOCK#8-M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

F

Generac 022471

N UT HEX #8-32 STEEL
(Superseded to G022471)

$0.99

$

Usually ships in 2-12 days

0

G

Generac 0A8278

SCREW SHC 1/4-28 X 3/4 G8.8 NZ

$2.49

$

Usually ships in 2-12 days

0

H

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

J

Generac 066715

SCREW RHM #8-32X4-1/2

$

$

Not available

K

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

L

Generac 0D5621

WASHER-STEP 1/2ODX9/32ID BRASS

$4.49

$

Usually ships in 2-12 days

0

M

0J78230AS0R

SHIELD CB HA N DLE CO N BOX

$

$

Not available

N

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

P

Generac 036261

RIVET POP .125 X .275 SS

$

$

Not available

UL CIRCUIT BREAKER (QN2 2P)

$

$

Not available

A

Generac 0E7283

CB 0150A2P 240V S QN2 LL

$646.99

$

Usually ships in 2-12 days

0

B

0H6845

COVER CB S QN2C1 CONBOX

$

$

Not available

C

Generac 0E3664

BASE , QN CIRCUIT BREAKER

$519.99

$

In Stock, only 1 left!

0

D

Generac 0G4112

BREAKER SUPPORT BRACKET 30KW

$11.99

$

Usually ships in 2-12 days

0

E

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

F

Generac 0C2454

SCREW HWHT M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

G

0J78230AS0R

SHIELD CB HANDLE CONBOX

$

$

Not available

H

Generac 029289

TAPE ELEC 1/2 FOAM

$

$

Not available

J

Generac 036261

RIVET POP .125 X .2

$

$

Not available
