HT-R3811 SA (MABT) - Honda Riding Mower, Made in Japan (SN: MABT-5000001 - MABT-9999999) REAR WHEEL Parts Diagram

Riding Mower, Made in Japan

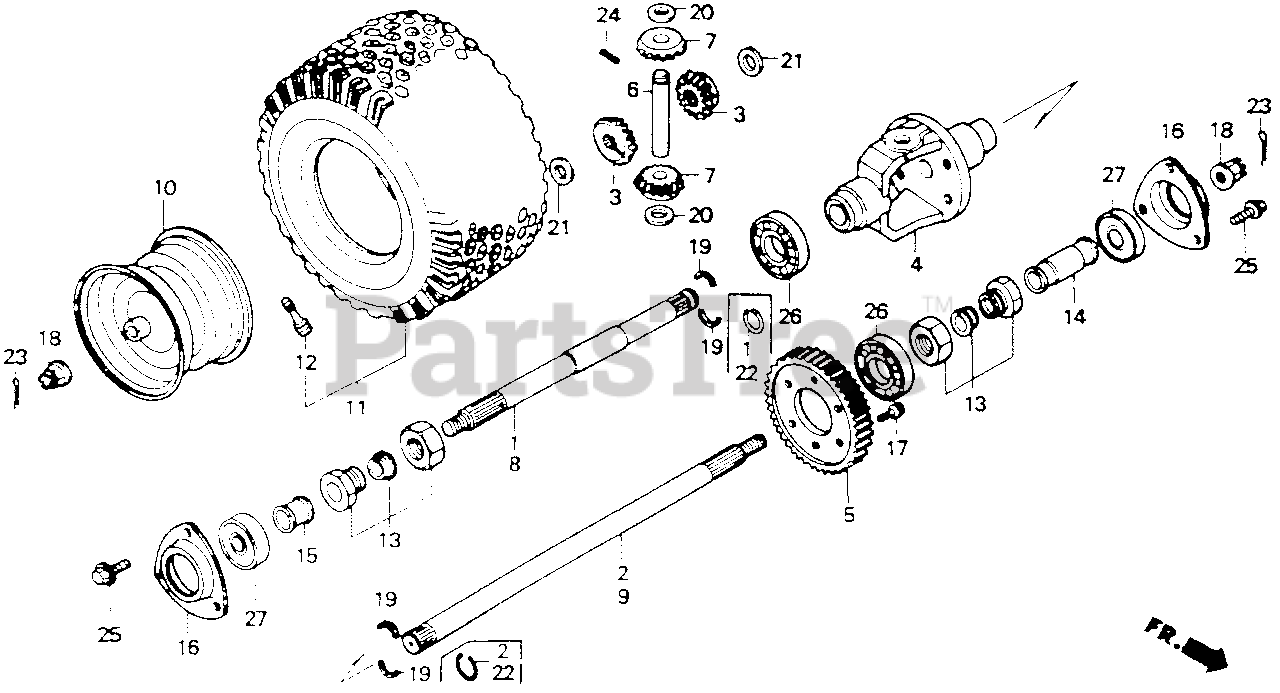

REAR WHEEL Parts Diagram

  • Title

3

Honda 41241-751-700

SEE PART DETAILS - PRI; GEAR, DIFFERENTIAL

$77.99

$

Usually ships in 3-6 days

0

4

Honda 41311-751-000

CASE, DIFFERENTIAL GEAR

$

$

Not available

5

Honda 41312-751-000

GEAR, FINAL DRIVEN (48T)

$

$

Not available

6

Honda 41321-751-000

SHAFT, DIFFERENTIAL

$21.99

$

Usually ships in 3-6 days

0

7

Honda 41341-751-000

PINION, DIFFERENTIAL

$71.99

$

Usually ships in 3-6 days

0

8

Honda 41410-751-700

SHAFT, R. AXLE

$

$

Not available

9

Honda 41420-751-700

SHAFT, L. AXLE

$144.99

$

Usually ships in 3-6 days

0

10

Honda 42710-751-000Y

SEE PART DETAILS - SUP; WHEEL, RR.

Note: Use up to Frame SN 5006867.

$

$

Not available

10

Honda 42710-751-000ZA

SEE PART DETAILS - SUP; WHEEL, RR.

Note: Use up to Frame SN 5006867.

$

$

Not available

10

Honda 42710-751-010ZA

SEE PART DETAILS - PRI; WHEEL, RR. *NH35M* (CLOUD SILVER METALLIC) (NOT AVAILABLE)

Note: Use from Frame SN 5006868.

$

$

Currently unavailable

11

Honda 42750-751-003

SEE PART DETAILS - SUP; TIRE ASSY., RR. (OHTSU)

$

$

Not available

12

Honda 42753-VM0-003

VALVE, RIM

$13.99

$

Usually ships in 3-6 days

0

16

Honda 50123-751-700

HOLDER, BEARING

$

$

Not available

17

Honda 90113-750-000

BOLT, SPECIAL (10X20)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 90305-401-680

NUT, AXLE (14MM)

$15.99

$

Usually ships in 3-6 days

0

19

Honda 90502-751-700

COTTER (15MM)

$12.99

$

Usually ships in 3-6 days

0

20

Honda 90521-751-000

WASHER A, DIFFERENTIAL PINION

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90522-751-000

WASHER B, DIFFERENTIAL PINION

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90523-751-000

WASHER C, DIFFERENTIAL PINION

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90524-751-000

WASHER D, DIFFERENTIAL PINION

$5.49

$

Usually ships in 3-6 days

0

21

Honda 90525-750-000

WASHER, DIFFERENTIAL GEAR

$5.49

$

In Stock, only 2 left!

0

23

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

In Stock, Qty 10

0

24

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

25

Honda 95701-08014-07

BOLT, FLANGE (8X14)

$1.49

$

In Stock, only 4 left!

0

26

Honda 96100-60060-00

BEARING, RADIAL BALL (6006)

$17.99

$

Usually ships in 3-6 days

0

27

Honda 96150-62040-10

BEARING, RADIAL BALL (6204UU)

$27.99

$

In Stock, only 2 left!

0
