HT-R3811 SA (MABT) - Honda Riding Mower, Made in Japan (SN: MABT-5000001 - MABT-9999999) HT-R3811CUTTER HOUSING Parts Diagram

Riding Mower, Made in Japan

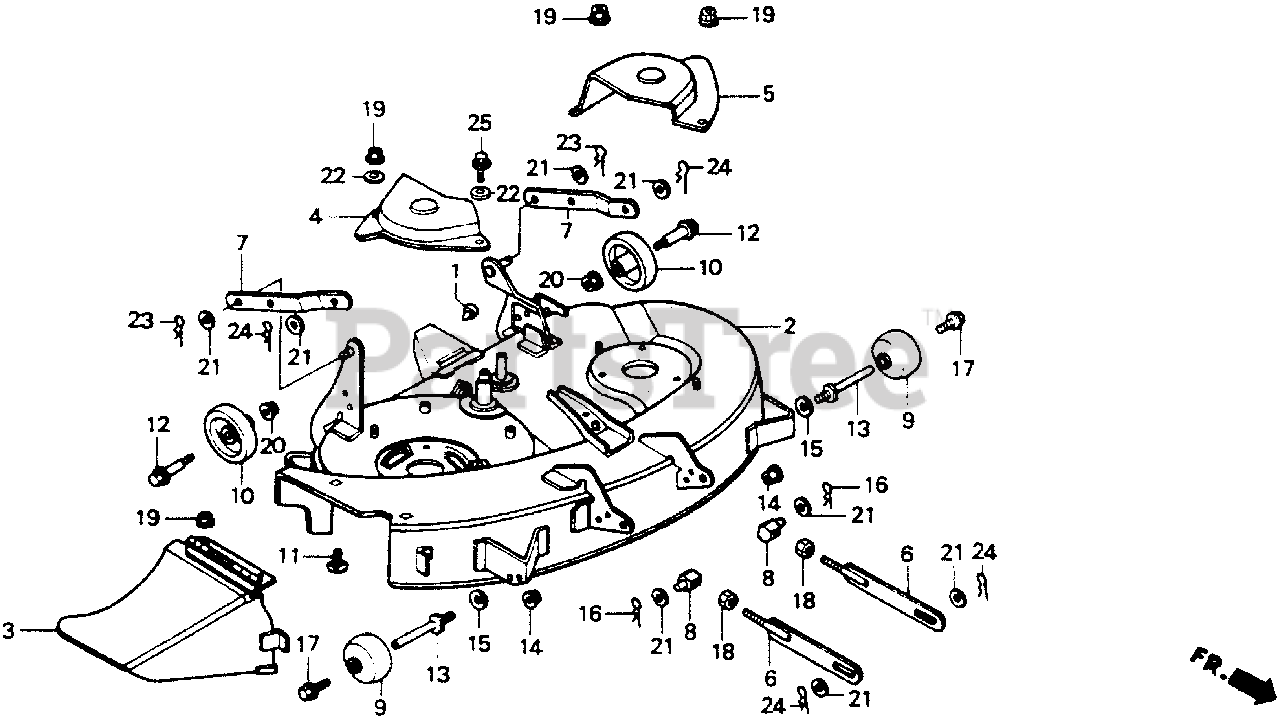

HT-R3811CUTTER HOUSING Parts Diagram

  • Title

1

Honda 72701-751-701

RUBBER, STOPPER

$7.49

$

In Stock, only 1 left!

0

2

Honda 76110-751-701

HOUSING, CUTTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76150-751-700ZA

ADAPTER, DISCHARGE *NH190M* (VINTAGE GRAY METALLIC)

$387.99

$

Usually ships in 3-6 days

0

4

Honda 76155-751-700ZA

COVER, R. BELT *NH190M* (VINTAGE GRAY METALLIC)

$

$

Not available

5

Honda 76156-751-700ZA

COVER, L. BELT *NH190M* (VINTAGE GRAY METALLIC) (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 76171-751-010

SEE PART DETAILS - PRI; LINK, FR. DECK

$69.99

$

Usually ships in 3-6 days

0

7

Honda 76172-751-000

LINK, RR. DECK

$

$

Currently unavailable

8

Honda 76185-751-700

PIN, FR. LINK ADJUSTING

$18.99

$

Usually ships in 3-6 days

0

9

Honda 76231-751-701

SEE PART DETAILS - PRI; ROLLER, ANTI-SCALP

$26.99

$

In Stock, only 2 left!

0

10

Honda 76241-751-700

SEE PART DETAILS - SUP; ROLLER, RR. ANTI-SCALP
(Superseded to 76241-751-701)

$30.99

$

In Stock, only 1 left!

0

10

Honda 76241-751-701

SEE PART DETAILS - PRI; ROLLER, RR. ANTI-SCALP

$30.99

$

In Stock, only 1 left!

0

11

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

12

Honda 90105-751-000

BOLT, ANTI-SCALP ROLLER

$14.99

$

In Stock, only 1 left!

0

13

Honda 90108-751-701

SHAFT, ANTI-SCALP ROLLER

$24.99

$

Usually ships in 3-6 days

0

14

Honda 90306-KF0-003

NUT, FLANGE (12MM)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 90403-751-701

WASHER, SPECIAL (12MM) (NOT AVAILABLE)

$

$

Not available

16

Honda 90702-750-000

PIN, LOCK (2.3MM)

$4.49

$

Usually ships in 3-6 days

0

17

Honda 93406-08012-08

BOLT-WASHER (8X12)

Note: Use up to Frame SN 5005484.

$2.49

$

In Stock, only 2 left!

0

17

Honda 93406-08016-08

BOLT-WASHER (8X16)

Note: Use from Frame SN 5005485.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

19

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 19

0

20

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

21

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.49

$

In Stock, only 2 left!

0

22

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

23

Honda 94201-40250

PIN, COTTER (4X25)

$1.49

$

In Stock, Qty 9

0

24

Honda 94252-14000

PIN, LOCK (14MM)

$2.99

$

In Stock, only 2 left!

0

25

Honda 95701-08014-08

BOLT, FLANGE (8X14)

$2.49

$

Usually ships in 3-6 days

0
