HT-R3811 SA (MABT) - Honda Riding Mower, Made in Japan (SN: MABT-5000001 - MABT-9999999) CYLINDER Parts Diagram

Riding Mower, Made in Japan

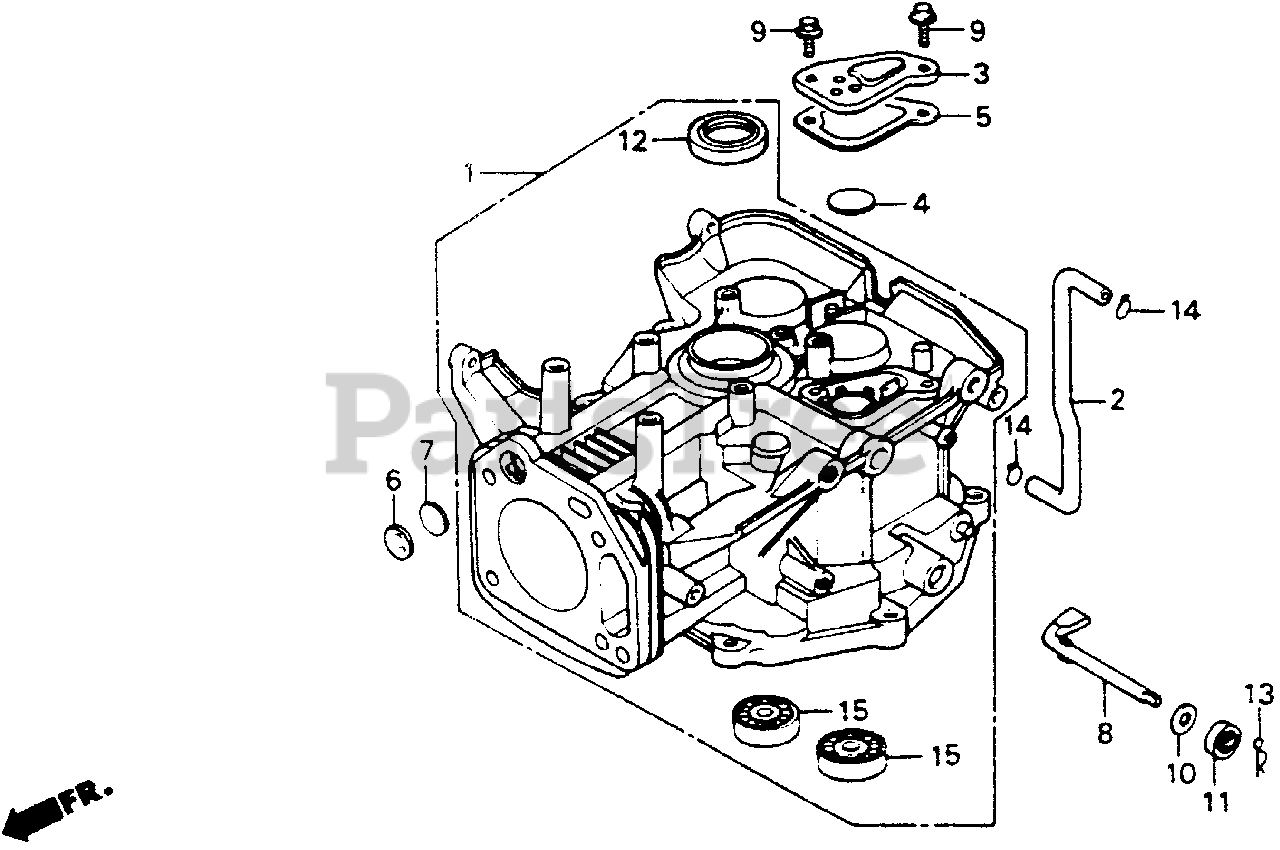

CYLINDER Parts Diagram

  • Title

1

Honda 120A0-ZE9-000

CYLINDER ASSY.

$

$

Not available

2

Honda 12315-ZE9-000

TUBE, BREATHER

$

$

Not available

3

Honda 12370-ZE8-000

CAP, BREATHER CHAMBER

$

$

Not available

4

Honda 12372-ZE2-300

VALVE, BREATHER

$4.49

$

In Stock, Qty 5

0

5

Honda 12373-ZE8-000

GASKET, BREATHER CAP

$3.99

$

Usually ships in 3-6 days

0

6

Honda 12375-ZE9-010

PLATE, ONE-WAY VALVE

$5.49

$

Usually ships in 3-6 days

0

7

Honda 12376-ZE8-000

VALVE, ONE-WAY

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16541-ZE8-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR ARM

$16.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 20+

0

10

Honda 90406-VM6-000

WASHER, THRUST (8.1MM)

$3.99

$

Usually ships in 3-6 days

0

11

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.99

$

In Stock, Qty 10

0

12

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$11.99

$

In Stock, Qty 15

0

13

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 20+

0

14

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 20+

0

15

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$13.99

$

In Stock, Qty 6

0
