HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) STARTER MOTOR Parts Diagram

Riding Mower, Made in Japan

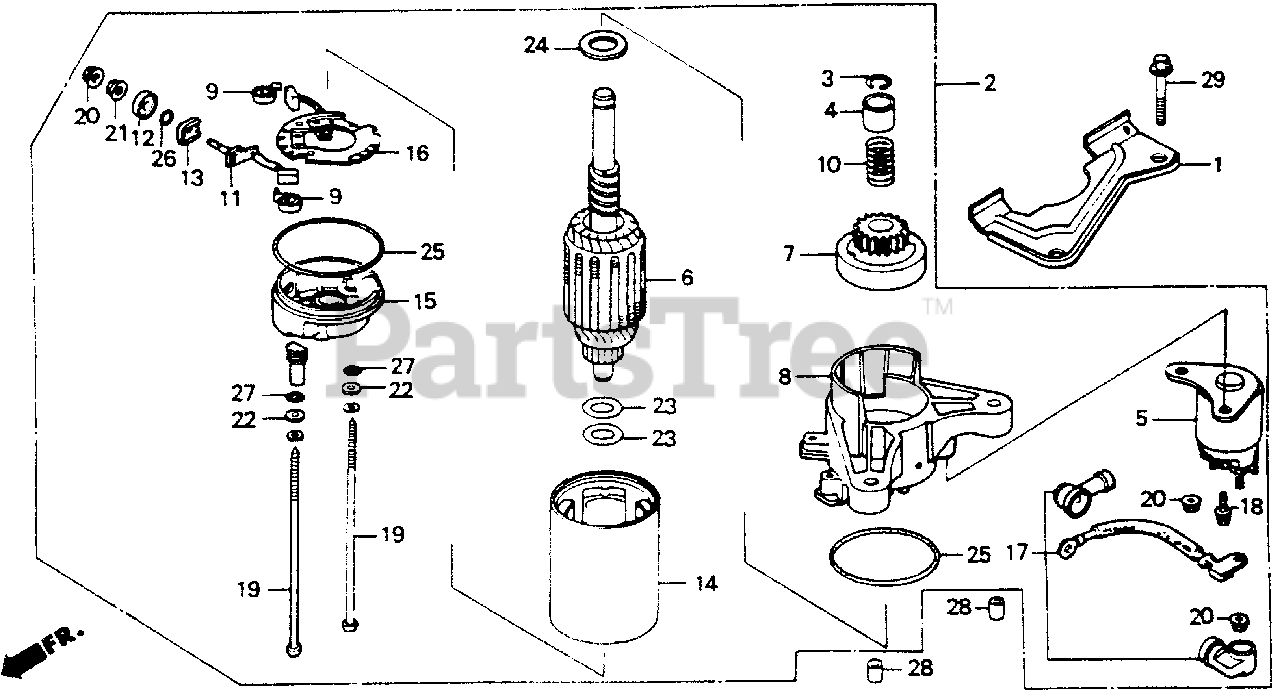

STARTER MOTOR Parts Diagram

  • Title
1

Honda 19611-ZE9-801

PLATE, SIDE

$

$

Not available

2

Honda 31200-ZE8-003

MOTOR ASSY., STARTER

$657.99

$

Usually ships in 3-6 days

0

3

Honda 31201-ZA1-003

RING, SNAP

$2.49

$

Usually ships in 3-6 days

0

4

Honda 31202-ZA1-003

COLLAR, CLUTCH STOP

$20.99

$

Usually ships in 3-6 days

0

5

Honda 31204-ZA0-003

SEE PART DETAILS - PRI; CONTACTOR ASSY.

$149.99

$

In Stock, only 1 left!

0

6

$220.99

$

Usually ships in 3-6 days

0

7

Honda 31207-ZA1-003

CLUTCH ASSY., OVERRUNNING

$190.99

$

Usually ships in 3-6 days

0

8

Honda 31208-ZE8-013

HOUSING, DRIVE SIDE

$145.99

$

Usually ships in 3-6 days

0

9

Honda 31212-ZA0-700

SPRING, BRUSH

$10.99

$

In Stock, only 1 left!

0

$5.49

$

Usually ships in 3-6 days

0

$13.99

$

In Stock, only 3 left!

0

12

Honda 31216-ZA1-013

BUSH, INSULATION

$8.99

$

Usually ships in 3-6 days

0

13

Honda 31217-ZA1-013

BUSH, INSULATION

$13.99

$

Usually ships in 3-6 days

0

$161.99

$

Usually ships in 3-6 days

0

15

Honda 31219-ZE8-003

FRAME, STARTER END

$58.99

$

Usually ships in 3-6 days

0

16

Honda 31206-HA0-004

SEE PART DETAILS - SUP; PLATE, BRUSH HOLDER
(Superseded to 31231-ZA1-003)

$34.99

$

Usually ships in 3-6 days

0

17

Honda 31232-ZE8-003

WIRE, WATER COVER

$14.99

$

Usually ships in 3-6 days

0

18

Honda 90101-ZA1-003

SEE PART DETAILS - SUP; BOLT

$

$

Not available

19

Honda 90102-ZA1-003

BOLT, THROUGH (NOT AVAILABLE)

$

$

Not available

$3.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

22

Honda 90401-ZA1-003

WASHER, STEEL PLATE

$

$

Currently unavailable

23

Honda 90402-ZA1-003

SEE PART DETAILS - SUP; WASHER

$

$

Currently unavailable

$3.49

$

Usually ships in 3-6 days

0

$

$

Not available

$2.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

28

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

29

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

In Stock, only 4 left!

0
