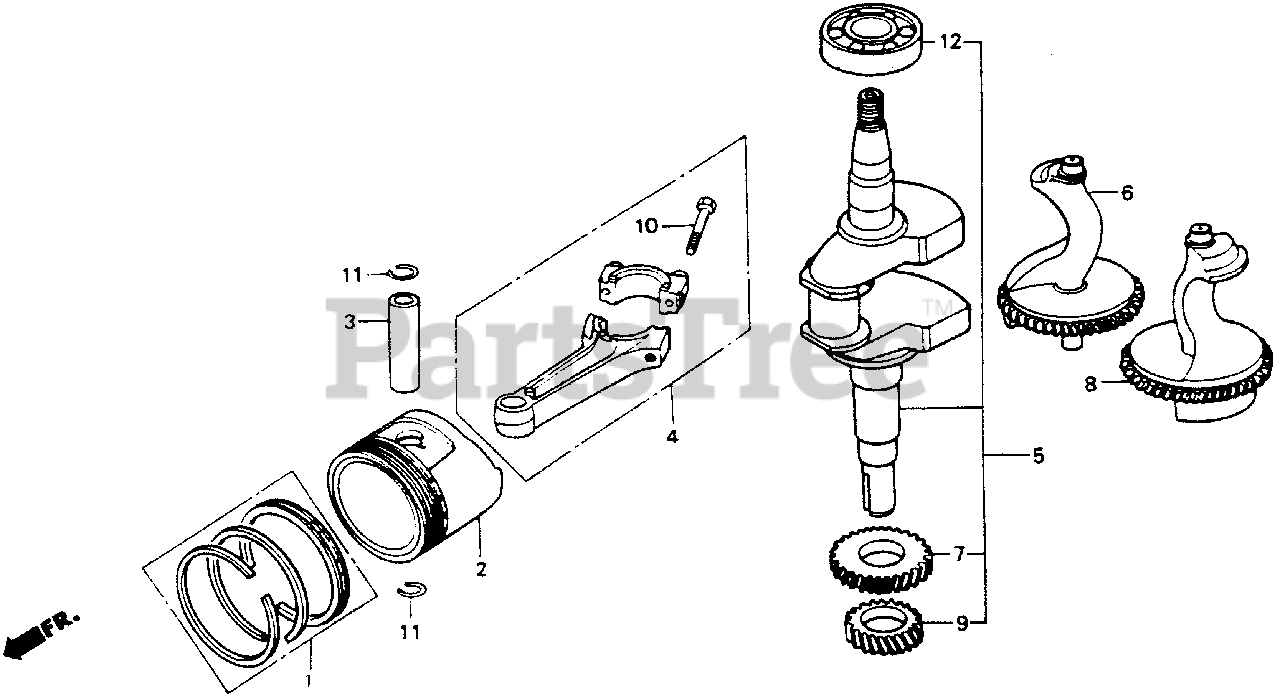

HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) PISTON Parts Diagram

Riding Mower, Made in Japan

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1065100.
(Superseded to 13011-ZE8-013)

$

$

Not available

1

Honda 13011-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1065100.
(Superseded to 13011-ZE8-013)

$

$

Not available

1

Honda 13011-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13012-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$

$

Currently unavailable

1

Honda 13013-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1065100.
(Superseded to 13013-ZE8-013)

$

$

Not available

1

Honda 13013-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1065100.
(Superseded to 13013-ZE8-013)

$

$

Not available

1

Honda 13013-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.75)

$

$

Not available

2

Honda 13101-ZE8-010

PISTON (STD)

$

$

Not available

2

Honda 13102-ZE8-000

SEE PART DETAILS - SUP; PISTON (OS 0.25) Use up to Engine SN 1065100.

$

$

Currently unavailable

2

Honda 13102-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.25)

$73.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.50)

$66.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE8-000

SEE PART DETAILS - SUP; PISTON (OS 0.75) Use up to Engine SN 1065100.

$

$

Currently unavailable

2

Honda 13104-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.75)

$73.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON

$13.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE8-010

ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-ZE8-305

ROD ASSY., CONNECTING (US)

$

$

Not available

5

Honda 13310-ZE8-700

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 13351-ZE8-010

SEE PART DETAILS - PRI; WEIGHT A, BALANCER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 13352-ZE2-300

GEAR, BALANCER DRIVE

$

$

Currently unavailable

8

Honda 13356-ZE8-010

SEE PART DETAILS - PRI; WEIGHT B, BALANCER

$

$

Currently unavailable

9

Honda 14311-ZE2-300

GEAR, TIMING (NOT AVAILABLE)

$29.99

$

Usually ships in 3-6 days

0

10

Honda 90001-ZE8-000

BOLT, CONNECTING ROD

$4.49

$

In Stock, only 1 left!

0

11

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM)

Note: Use from Engine SN 1060086.

$1.49

$

In Stock, Qty 20+

0

11

Honda 94601-18000

CLIP, PISTON PIN (18MM)

Note: Use up to Engine SN 1060085.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0
