HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) PARKING BRAKE LEVER Parts Diagram

Riding Mower, Made in Japan

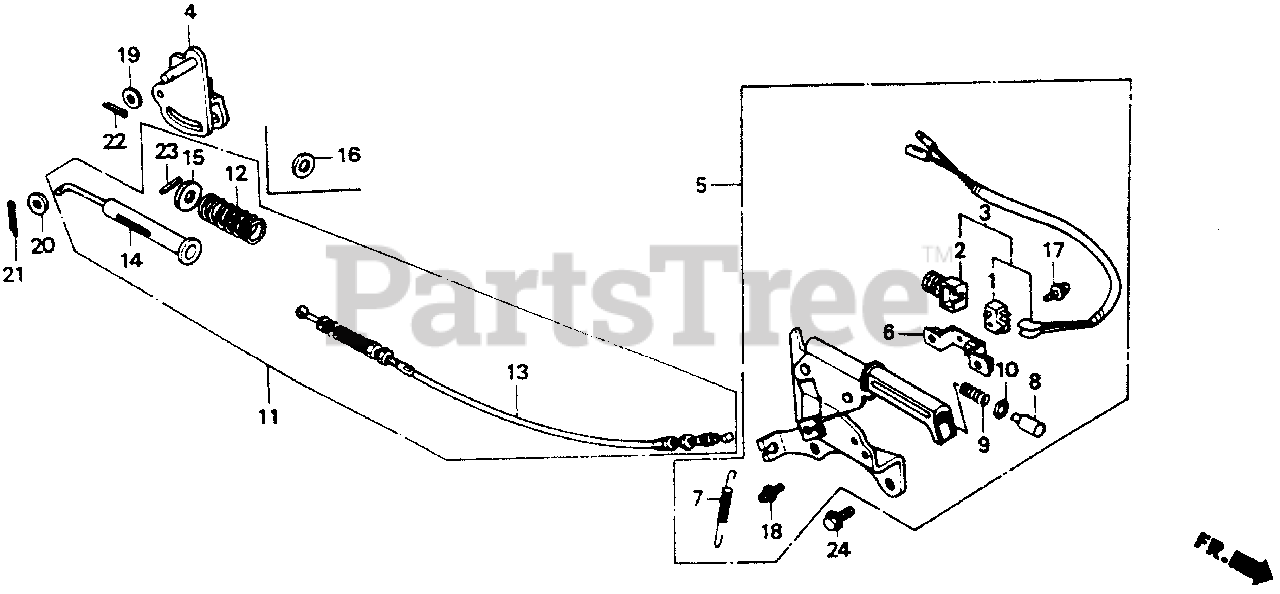

PARKING BRAKE LEVER Parts Diagram

  • Title

2

Honda 35336-750-003

COVER, SWITCH

Note: Use from Frame SN 5003190.

$5.49

$

In Stock, only 1 left!

0

3

Honda 35620-751-013

SEE PART DETAILS - PRI; SWITCH ASSY., PARKING BRAKE

Note: Use up to Frame SN 5003646.

$

$

Currently unavailable

3

Honda 35620-751-023

SWITCH ASSY., PARKING BRAKE

Note: Use from Frame SN 5003647.

$

$

Currently unavailable

4

Honda 46540-751-000

ARM, BRAKE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 47100-751-000

LEVER ASSY., PARKING BRAKE

Note: Use up to Frame SN 5003646.

$

$

Not available

5

Honda 47100-751-010

LEVER ASSY., PARKING BRAKE

Note: Use from Frame SN 5003647.

$

$

Not available

6

Honda 47132-751-000

STAY, PARKING BRAKE SWITCH

$

$

Not available

7

Honda 47135-751-000

SPRING, BRAKE LEVER RETURN

$

$

Currently unavailable

8

Honda 47142-659-310

KNOB, PARKING BRAKE PUSH ROD

$

$

Not available

9

Honda 47143-679-310

SPRING, PUSH ROD

$5.49

$

Usually ships in 3-6 days

0

10

Honda 47147-567-000

O-RING, PARKING BRAKE LEVER

$5.99

$

Usually ships in 3-6 days

0

12

Honda 47273-751-000

SPRING, PARKING BRAKE LOAD SETTING

$12.99

$

Usually ships in 3-6 days

0

13

Honda 47274-751-000

CABLE, PARKING BRAKE

$

$

Currently unavailable

14

Honda 47280-751-000

PIPE, RR. BRAKE

$

$

Currently unavailable

16

Honda 90532-750-000

WASHER, PLAIN (17.2MM)

$5.49

$

Usually ships in 3-6 days

0

17

Honda 93893-04014-08

SCREW-WASHER (4X14)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 93893-05012-08

SEE PART DETAILS - PRI; SCREW-WASHER (5X12)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 94102-10800

WASHER, PLAIN (10MM)

$4.99

$

In Stock, Qty 6

0

20

Honda 94103-05800

WASHER, PLAIN (5MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94201-20150

PIN, SPLIT (2.0X15)

$1.49

$

In Stock, only 2 left!

0

22

Honda 94201-25300

SEE PART DETAILS - PRI; PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94305-60251

PIN, SPRING (6X25)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
