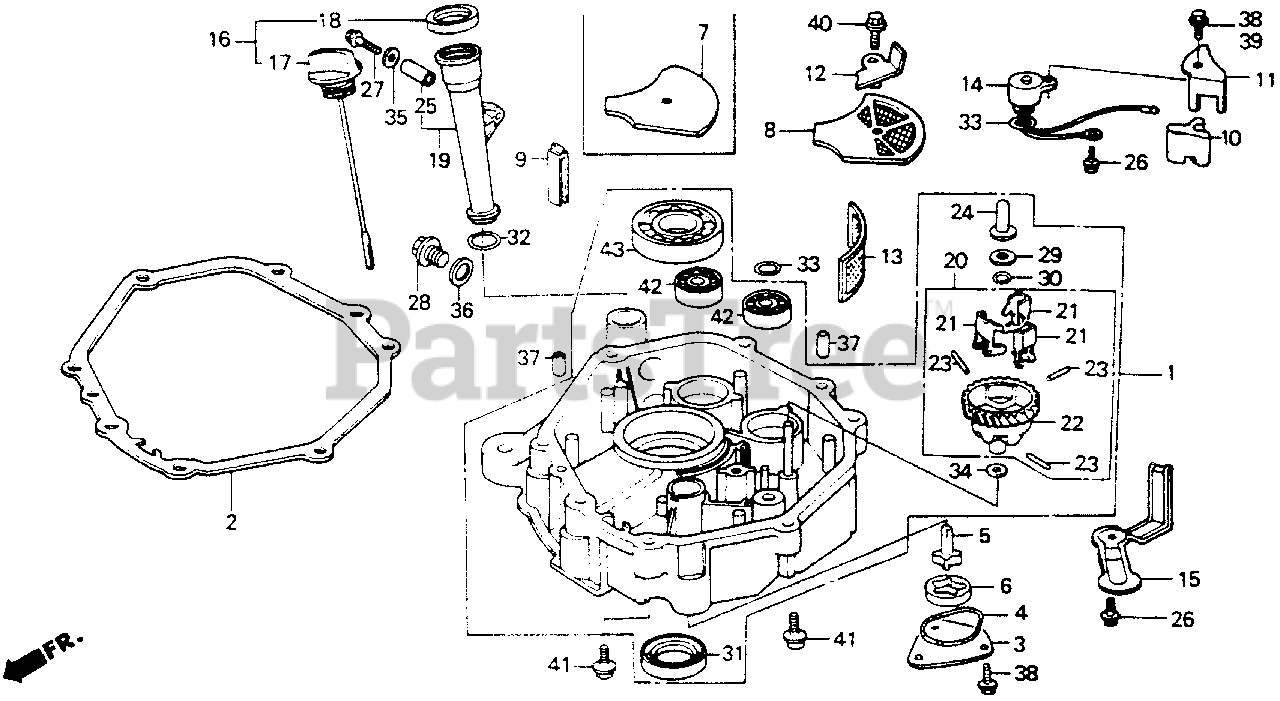

HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) OIL PAN Parts Diagram

Riding Mower, Made in Japan

OIL PAN Parts Diagram

  • Title

1

Honda 113A0-ZE8-000

PAN ASSY., OIL

Note: Use up to Engine SN 1035000.

$456.99

$

Usually ships in 3-6 days

0

1

Honda 11300-ZE8-010

PAN ASSY., OIL

Note: Use from Engine SN 1035001.

$426.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZE9-306

SEE PART DETAILS - SUP; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$17.99

$

In Stock, only 3 left!

0

2

Honda 11381-ZE9-800

SEE PART DETAILS - PRI; GASKET, OIL PAN
(Superseded to 11381-ZE9-801)

$17.99

$

In Stock, only 3 left!

0

2

Honda 11381-ZE9-801

SEE PART DETAILS - PRI; GASKET, OIL PAN

$17.99

$

In Stock, only 3 left!

0

3

Honda 15130-ZE8-000

COVER, OIL PUMP

$9.99

$

Usually ships in 3-6 days

0

4

Honda 15131-ZE9-003

SEE PART DETAILS - PRI; O-RING, PUMP COVER

$4.49

$

In Stock, only 3 left!

0

5

Honda 15330-ZE8-000

ROTOR (INNER)

$23.99

$

Usually ships in 3-6 days

0

6

Honda 15332-891-003

ROTOR, OIL PUMP (OUTER)

$18.99

$

Usually ships in 3-6 days

0

7

Honda 15334-ZE8-000

PLATE, OIL FILTER

Note: Use up to Engine SN 1035000.

$

$

Currently unavailable

7

Honda 15334-ZE8-010

PLATE, OIL FILTER

Note: Use from Engine SN 1035001.

$4.99

$

Usually ships in 3-6 days

0

9

Honda 15335-ZE9-000

RUBBER, OIL RETURN

$6.49

$

Usually ships in 3-6 days

0

12

Honda 15420-ZE8-000

PLATE, SUCTION

Note: Use from Engine SN 1035001.

$9.49

$

Usually ships in 3-6 days

0

13

Honda 15421-ZE8-000

SEE PART DETAILS - SUP; SCREEN, OIL FILTER

Note: Use up to Engine SN 1011327.

$

$

Currently unavailable

13

Honda 15421-ZE9-000

SEE PART DETAILS - PRI; SCREEN, OIL FILTER

Note: Use from Engine SN 1011328 to 1035000.

$

$

Not available

13

Honda 15421-ZE9-003

SCREEN, OIL FILTER

Note: Use from Engine SN 1044841.

$15.99

$

In Stock, only 1 left!

0

13

Honda 15421-ZE9-003

SCREEN, OIL FILTER

Note: Use from Engine SN 1035001 to 1044840.

$15.99

$

In Stock, only 1 left!

0

16

Honda 15600-ZE8-010

SEE PART DETAILS - PRI; CAP ASSY., OIL FILLER

$

$

Not available

17

Honda 15620-ZE8-010

DIPSTICK, OIL (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 15625-ZE8-000

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP

$5.49

$

In Stock, only 1 left!

0

19

Honda 15630-ZE8-000

EXTENSION, OIL FILLER
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, only 1 left!

0

21

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

22

Honda 16512-ZE8-000

HOLDER, GOVERNOR WEIGHT

$21.99

$

Usually ships in 3-6 days

0

23

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

24

Honda 16531-ZE2-000

SEE PART DETAILS - SUP; SLIDER, GOVERNOR
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, only 3 left!

0

24

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, only 3 left!

0

25

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

27

Honda 90017-883-000

BOLT, FLANGE (6X32)

$3.49

$

In Stock, only 2 left!

0

28

Honda 92800-20000

BOLT, DRAIN PLUG (20MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 90473-147-000

SEE PART DETAILS - PRI; WASHER (6X16)

$1.99

$

In Stock, only 1 left!

0

30

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

30

Honda 90602-896-000

SEE PART DETAILS - SUP; CLIP, GOVERNOR HOLDER

$1.99

$

Usually ships in 3-6 days

0

31

Honda 91201-890-003

OIL SEAL (30X46X8)

$11.99

$

In Stock, Qty 5

0

32

Honda 91301-ZE8-003

SEE PART DETAILS - SUP; O-RING (22.45X2.2)

Note: Use up to Engine SN 1011327.

$2.49

$

Usually ships in 3-6 days

0

32

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2)

$2.49

$

In Stock, Qty 12

0

33

Honda 91302-ZE9-003

SEE PART DETAILS - PRI; O-RING (11.8X2.4)

$3.49

$

Usually ships in 3-6 days

0

34

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

35

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

36

Honda 94109-20000

WASHER, DRAIN PLUG (20MM)

$1.99

$

In Stock, only 3 left!

0

37

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

38

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use up to Engine SN 1035000.

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Engine SN 1035001.

$2.49

$

In Stock, Qty 20+

0

40

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

Note: Use from Engine SN 1035001.

$2.49

$

In Stock, Qty 8

0

41

Honda 95701-08040-08

BOLT, FLANGE (8X40)

$2.99

$

Usually ships in 3-6 days

0

42

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 3 left!

0

43

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0
