HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) HT-R3009MUFFLER K-K1 Parts Diagram

Riding Mower, Made in Japan

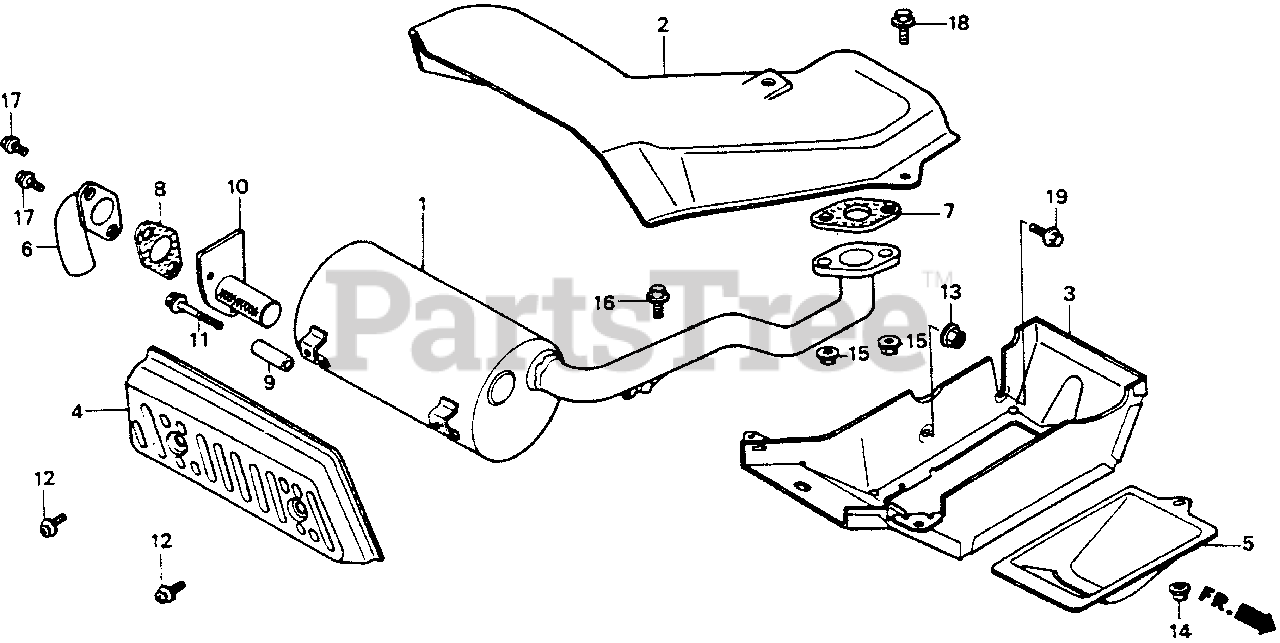

HT-R3009MUFFLER K-K1 Parts Diagram

  • Title

1

Honda 18310-751-010

SEE PART DETAILS - PRI; MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 18321-751-000

PROTECTOR, HEAT (UPPER)

$

$

Not available

3

Honda 18325-751-010

SEE PART DETAILS - PRI; PROTECTOR, HEAT (LOWER)

$

$

Not available

4

Honda 18326-751-010

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$

$

Not available

5

Honda 18327-751-010

SEE PART DETAILS - PRI; COVER, PROTECTOR (LOWER)

$

$

Not available

6

Honda 18331-751-000

SEE PART DETAILS - SUP; PIPE, TAIL
(Superseded to 18331-751-010)

$24.99

$

Usually ships in 3-6 days

0

6

Honda 18331-751-010

SEE PART DETAILS - PRI; PIPE, TAIL

$24.99

$

Usually ships in 3-6 days

0

6

Honda 18331-751-010

SEE PART DETAILS - PRI; PIPE, TAIL

$24.99

$

Usually ships in 3-6 days

0

7

Honda 18333-ZE3-800

SEE PART DETAILS - SUP; GASKET, EX. PIPE
(Superseded to 18333-ZK6-Y00)

$5.49

$

In Stock, Qty 20+

0

7

Honda 18333-ZK6-Y00

SEE PART DETAILS - PRI; GASKET, EX. PIPE

$5.49

$

In Stock, Qty 20+

0

8

Honda 18394-763-A40

GASKET, TAIL PIPE

$5.99

$

Usually ships in 3-6 days

0

9

Honda 18335-751-000

COLLAR, MUFFLER JOINT

$8.49

$

Usually ships in 3-6 days

0

10

Honda 18355-751-600

ARRESTER, SPARK

$

$

Currently unavailable

11

Honda 90180-MA3-660

BOLT, FLANGE (8X55)

$6.49

$

Usually ships in 3-6 days

0

12

Honda 93891-06010-07

SCREW-WASHER (6X10)

$

$

Not available

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

15

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 15

0

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 7

0

17

Honda 95700-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

18

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

18

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

19

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$1.99

$

In Stock, Qty 5

0
