HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) HT-R3009CUTTER PULLEY K-K1 Parts Diagram

Riding Mower, Made in Japan

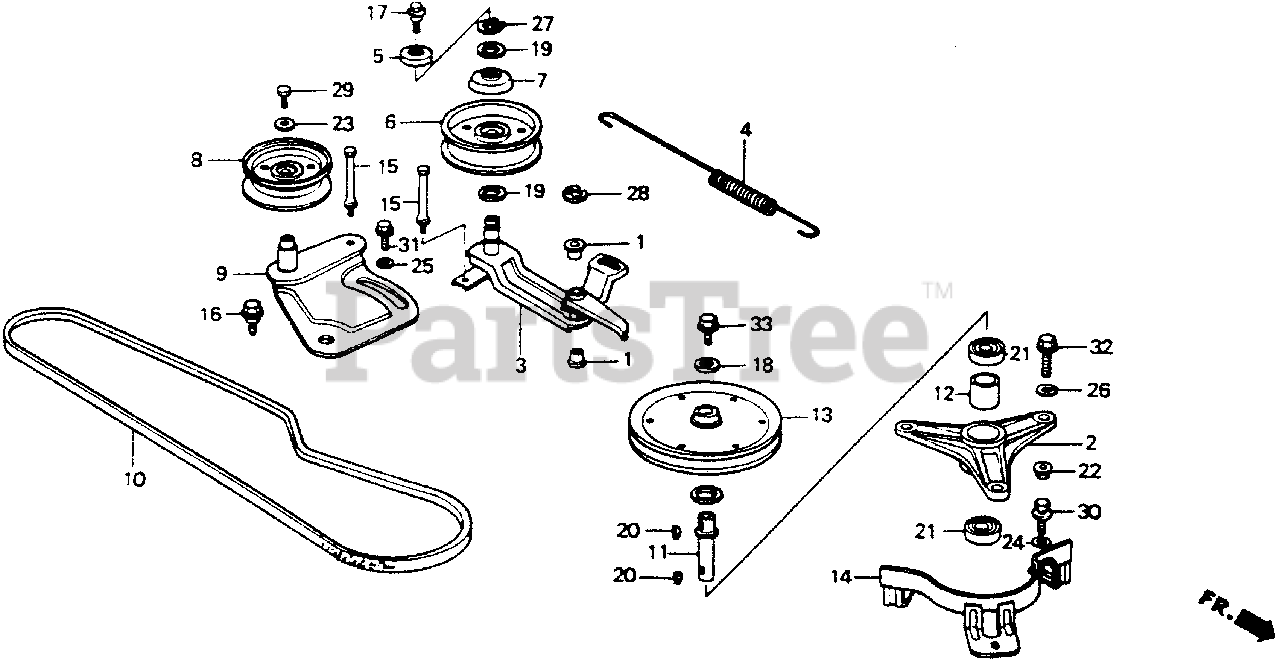

HT-R3009CUTTER PULLEY K-K1 Parts Diagram

  • Title

1

Honda 24132-750-000

BUSH (15X19X22)

$12.99

$

Usually ships in 3-6 days

0

2

Honda 72711-751-010

SEE PART DETAILS - PRI; HOUSING, BEARING (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76120-751-020

SEE PART DETAILS - PRI; ARM, TENSION (DECK) (NOT AVAILABLE)

$

$

Not available

4

Honda 76122-751-000

SPRING, TENSIONER ARM

$30.99

$

Usually ships in 3-6 days

0

5

Honda 76126-751-000

GRIP, TENSION ARM (NOT AVAILABLE)

$

$

Not available

6

Honda 76130-751-000

ROLLER, TENSIONER

$

$

Not available

7

Honda 76135-751-000

DUST COVER, TENSION PULLEY (NOT AVAILABLE)

$

$

Not available

8

Honda 76160-751-000

PULLEY, TENSIONER

$67.99

$

In Stock, only 2 left!

0

9

Honda 76180-751-000

ARM, BELT ADJUSTING

$

$

Not available

10

Honda 76181-751-003

V-BELT, BLADE (SB-70)

$73.99

$

Usually ships in 3-6 days

0

11

Honda 76212-751-000

SHAFT, BLADE (NOT AVAILABLE)

$

$

Not available

12

Honda 76213-751-000

COLLAR, BLADE SHAFT (NOT AVAILABLE)

$

$

Not available

13

Honda 76221-751-000

PULLEY, CUTTER DECK (NOT AVAILABLE)

$

$

Not available

14

Honda 76251-751-000

COVER, DECK PULLEY (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 90109-751-000

BOLT, BELT STOPPER

$6.49

$

Usually ships in 3-6 days

0

16

Honda 90110-751-000

BOLT, ADJUSTING ARM

$5.99

$

Usually ships in 3-6 days

0

17

Honda 90111-KE1-000

BOLT, FLANGE (6MM)

$

$

Not available

18

Honda 90401-371-000

WASHER (12.2X33X3.2)

$8.99

$

Usually ships in 3-6 days

0

19

Honda 90503-751-000

WASHER (17.3X25)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90751-750-000

KEY, SPECIAL WOODRUFF (16X15)

$

$

Not available

21

Honda 91001-751-003

BEARING, RADIAL BALL (62/22) (2RS)

$32.99

$

Usually ships in 3-6 days

0

22

Honda 94050-10080

NUT, FLANGE (10MM)

$3.99

$

In Stock, Qty 20+

0

23

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 16

0

24

Honda 94103-06700

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

25

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

26

Honda 94111-10800

SEE PART DETAILS - PRI; WASHER, SPRING (10MM)

$1.99

$

In Stock, only 1 left!

0

27

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

In Stock, Qty 7

0

28

Honda 94540-12018

E-RING (12MM)

$7.49

$

Usually ships in 3-6 days

0

29

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

30

Honda 95701-06016-07

BOLT, FLANGE (6X16)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

31

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

32

Honda 95701-10035-08

BOLT, FLANGE (10X35)

$5.49

$

In Stock, only 3 left!

0

33

Honda 95700-12025-08

SEE PART DETAILS - SUP; BOLT, FLANGE (12X25)

$

$

Currently unavailable

33

Honda 95701-12025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (12X25)

$4.99

$

Usually ships in 3-6 days

0
