HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) FRONT WHEEL Parts Diagram

Riding Mower, Made in Japan

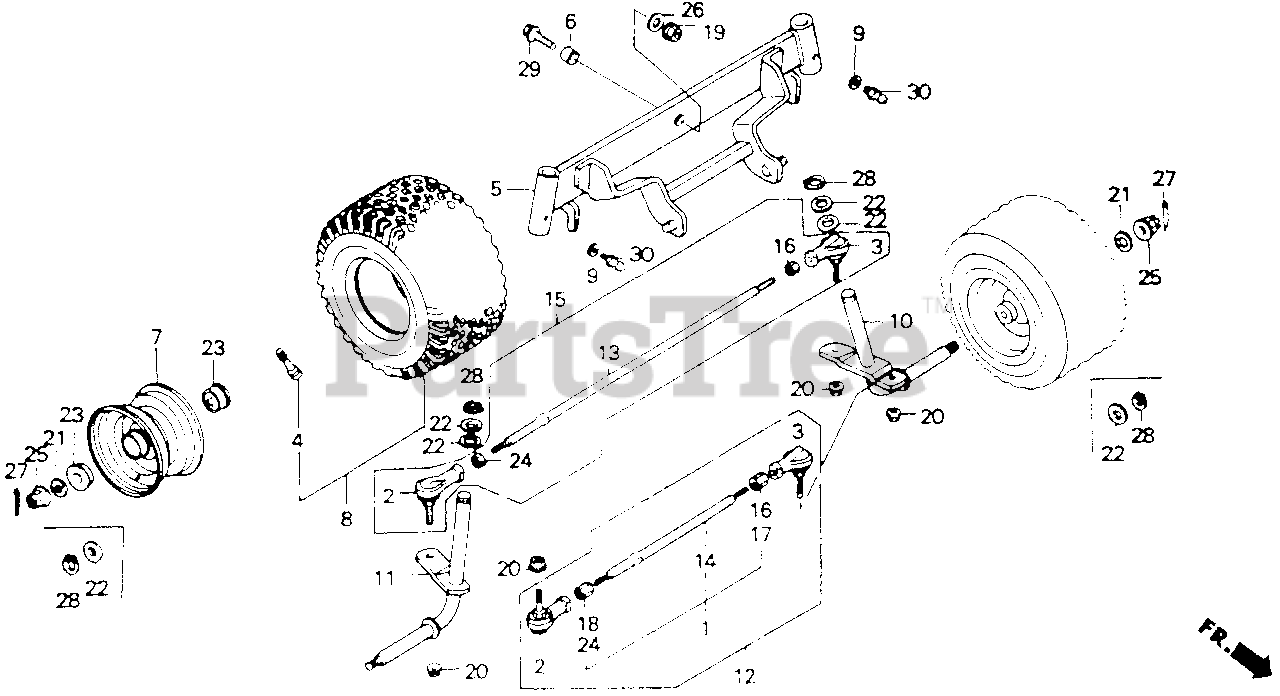

FRONT WHEEL Parts Diagram

  • Title

1

Honda 04401-751-000

TIE ROD SET B

$

$

Not available

2

Honda 24125-751-003

SEE PART DETAILS - SUP; JOINT, R. BALL
(Superseded to 24125-758-000)

$32.99

$

Usually ships in 3-6 days

0

3

Honda 24129-751-003

JOINT, L. BALL

$42.99

$

Usually ships in 3-6 days

0

4

Honda 42753-VM0-003

VALVE, RIM

$14.99

$

Usually ships in 3-6 days

0

5

Honda 44110-751-010

AXLE, FR. (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 44121-751-000

COLLAR, FR. AXLE

$7.49

$

Usually ships in 3-6 days

0

7

Honda 44710-751-000ZA

WHEEL, FR.

$

$

Not available

8

Honda 44751-772-000

TIRE, TURF (11X4.00-5)

$

$

Not available

9

Honda 50618-KE8-000

COLLAR (6.5X11X3)

$3.99

$

Usually ships in 3-6 days

0

10

Honda 51210-751-000

KNUCKLE, L. (NOT AVAILABLE)

$

$

Not available

11

Honda 51220-751-000

KNUCKLE, R. (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 53521-751-000

TIE ROD A (NOT AVAILABLE)

$

$

Not available

16

Honda 90201-750-000

NUT, HEX. (8MM)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 90201-751-305

NUT, L. SLEEVE (8MM)

$

$

Not available

18

Honda 90202-751-305

NUT, R. SLEEVE (8MM)

$

$

Not available

19

Honda 90304-GA6-003

NUT, AXLE (10MM)

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 20+

0

22

Honda 90452-751-000

WASHER, THRUST (17MM)

$5.49

$

In Stock, only 2 left!

0

23

Honda 91052-751-003

BEARING, RADIAL BALL

$18.99

$

Usually ships in 3-6 days

0

24

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, only 4 left!

0

26

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

28

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

$1.49

$

In Stock, Qty 7

0

29

Honda 95801-10035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X35)

$3.49

$

Usually ships in 3-6 days

0

30

Honda 96201-10000

NIPPLE, GREASE (A.T6) (M6X1.0)

$3.49

$

Usually ships in 3-6 days

0
