HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) FRAME Parts Diagram

Riding Mower, Made in Japan

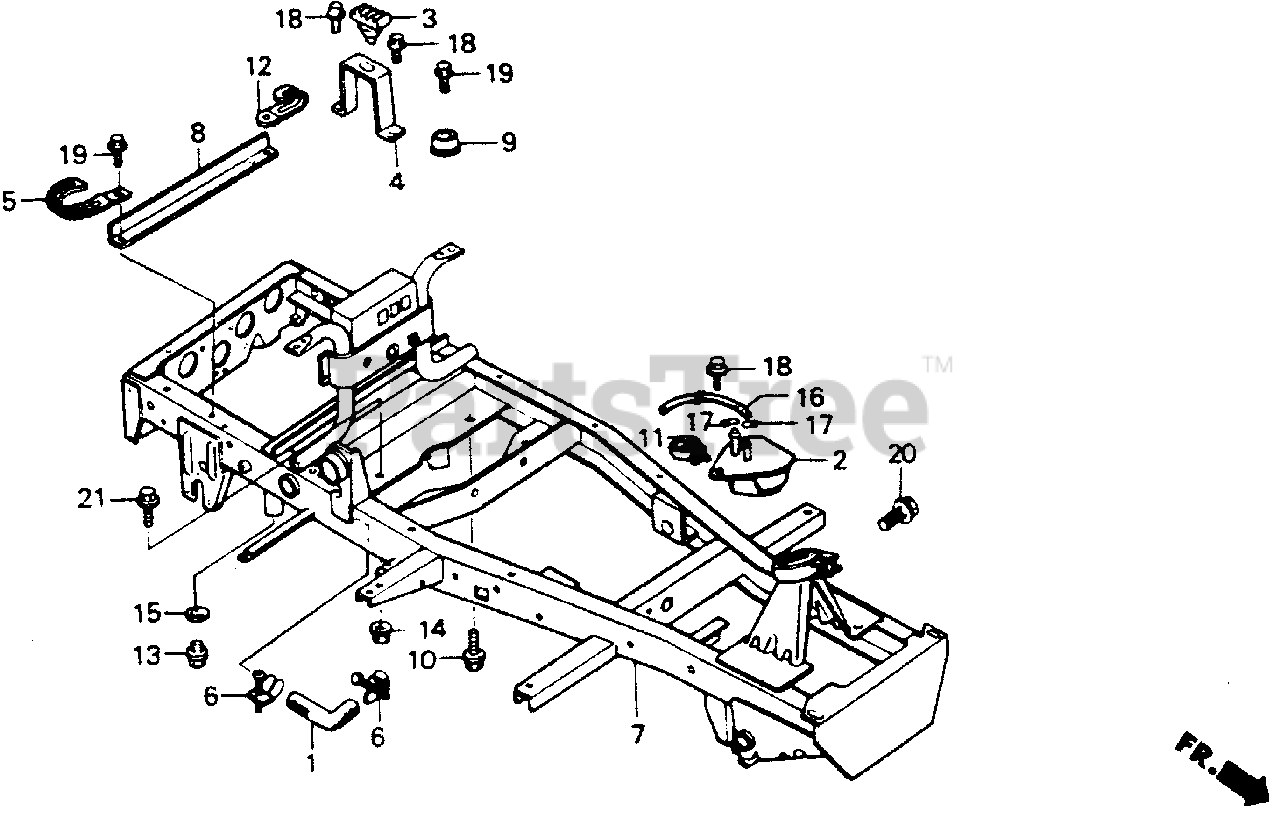

FRAME Parts Diagram

  • Title
1

Honda 15552-751-000

TUBE, OIL DRAIN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 17351-751-010

TANK, FUEL CATCH (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17507-751-000

RUBBER, TANK CUSHION

$

$

Currently unavailable

4

Honda 17508-751-000

STAY, TANK RUBBER

$

$

Not available

5

Honda 32170-443-850

CLIP, WIRE HARNESS

$6.99

$

Usually ships in 3-6 days

0

6

Honda 43514-445-771

CLAMP, MASTER CYLINDER OIL HOSE

$15.99

$

Usually ships in 3-6 days

0

$

$

Not available

8

Honda 53211-751-000

HOLDER, BATTERY (B)

$

$

Not available

9

Honda 60407-ZA7-000

RUBBER (LOWER)

$17.99

$

In Stock, only 2 left!

0

10

Honda 90115-751-000

BOLT, FLANGE (5/16"X22)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

12

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

13

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

14

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 16

0

15

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

16

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X180)

$82.99

$

In Stock, only 1 left!

0

17

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

18

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

19

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-08025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X25)

$0.99

$

In Stock, Qty 12

0

21

Honda 95701-08035-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35)

$1.99

$

Usually ships in 3-6 days

0
