HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) ENGINE PULLEY Parts Diagram

Riding Mower, Made in Japan

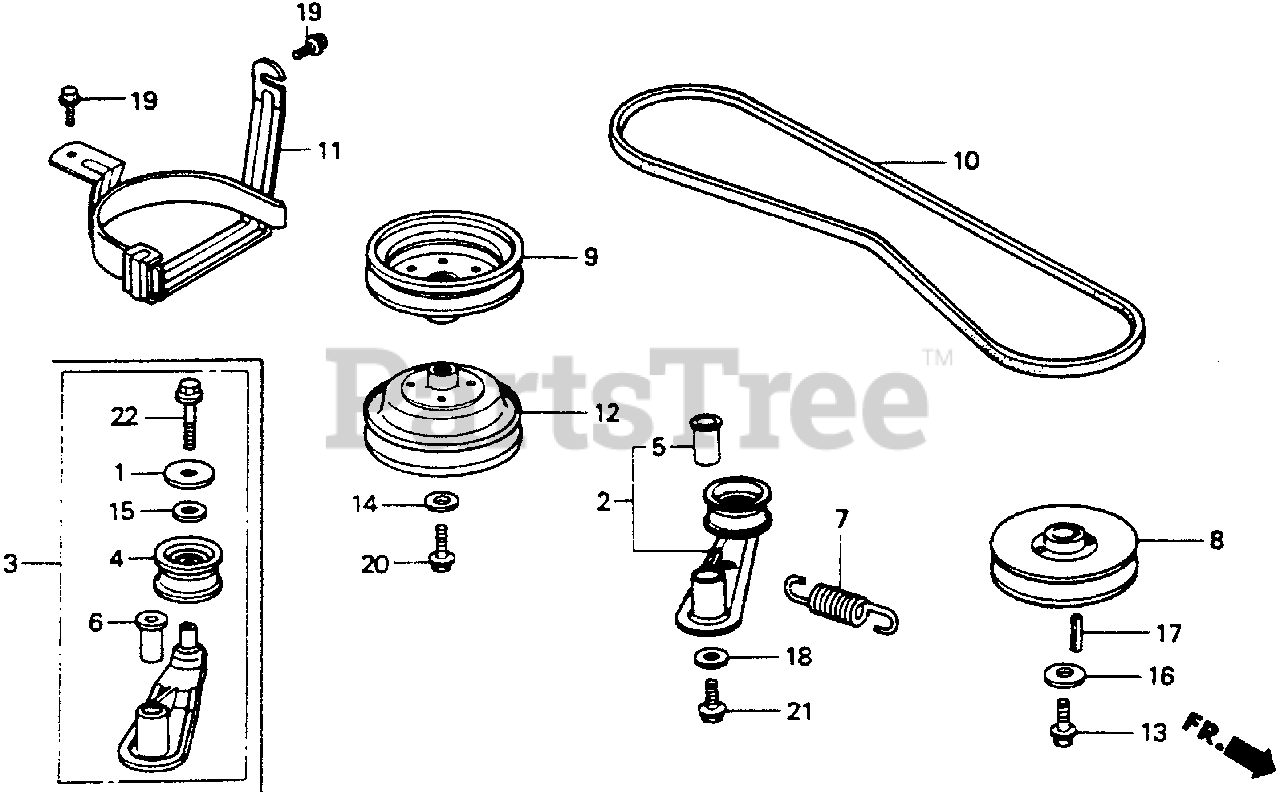

ENGINE PULLEY Parts Diagram

  • Title

2

Honda 22510-763-A00

SEE PART DETAILS - PRI; ARM ASSY., TENSIONER

$107.99

$

In Stock, only 1 left!

0

2

Honda 22520-751-010

SEE PART DETAILS - SUP; ARM, TENSION
(Superseded to 22510-763-A00)

$107.99

$

In Stock, only 1 left!

0

6

Honda 22525-751-300

BUSH (15X19X39.5)

$11.99

$

In Stock, only 3 left!

0

7

Honda 22531-719-000

SPRING, BELT TENSIONER

Note: Use up to Frame SN 5003646.

$11.99

$

Usually ships in 3-6 days

0

7

Honda 22531-751-000

SPRING, PRIMARY BELT TENSION

Note: Use from Frame SN 5003647.

$12.99

$

Usually ships in 3-6 days

0

8

Honda 75160-751-000

SEE PART DETAILS - SUP; PULLEY, ENGINE
(Superseded to 75170-763-A00)

$74.99

$

Usually ships in 3-6 days

0

8

Honda 75170-763-A00

SEE PART DETAILS - PRI; PULLEY, ENGINE (120MM)

$74.99

$

Usually ships in 3-6 days

0

9

Honda 76225-763-A00

PULLEY, TRANSMISSION (130MM)

$

$

Not available

10

Honda 76182-751-023

SEE PART DETAILS - PRI; V-BELT, PRIMARY (SB-51)

$65.99

$

In Stock, only 1 left!

0

11

Honda 76183-751-000

STOPPER, BELT

$

$

Not available

12

Honda 76240-763-A00

SEE PART DETAILS - PRI; PULLEY, TRANSMISSION (130MM)

$

$

Not available

13

Honda 90107-751-003

BOLT, FLANGE (7/16"X28)

$5.99

$

Usually ships in 3-6 days

0

14

Honda 90471-435-770

WASHER (8MM)

$

$

Not available

16

Honda 90501-751-000

WASHER, PLAIN (12MM)

$13.99

$

Usually ships in 3-6 days

0

17

Honda 90761-751-000

KEY (6.3X6.3X30)

$10.99

$

Usually ships in 3-6 days

0

18

Honda 94101-10800

WASHER, PLAIN (10.5X22X1.6)

$2.49

$

In Stock, only 2 left!

0

19

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 15

0

20

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 1 left!

0

20

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

21

Honda 95701-10020-08

BOLT, FLANGE (10X20)

$2.99

$

In Stock, only 2 left!

0
