HT-R3009 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5000001 - MA1T-9999999) AIR CLEANER Parts Diagram

Riding Mower, Made in Japan

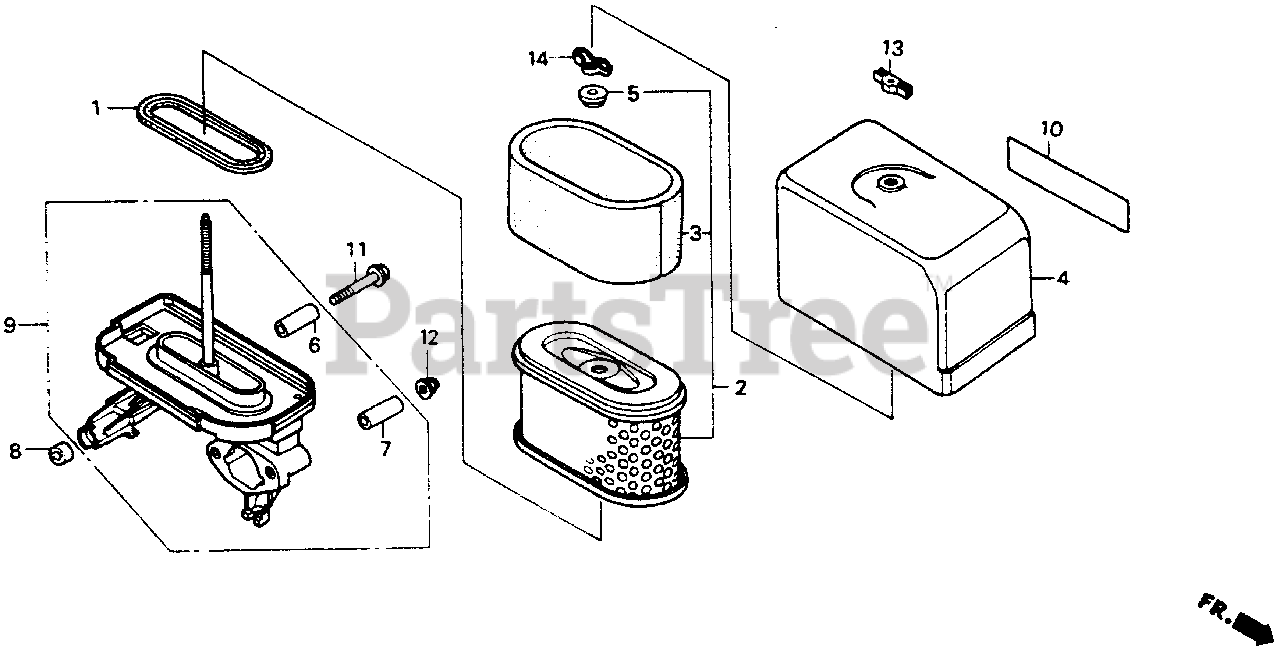

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE8-000

GASKET, ELBOW

$4.99

$

Usually ships in 3-6 days

0

2

Honda 17210-ZE8-013

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER

$

$

Not available

2

Honda 17210-ZF5-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER (METAL BASE)
(Superseded to 17210-ZF5-010)

$24.99

$

Usually ships in 3-6 days

0

3

Honda 17218-ZF5-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZF5-305)

$9.49

$

In Stock, only 1 left!

0

4

Honda 17230-ZE8-013

COVER, AIR CLEANER (DUAL)

$35.99

$

Usually ships in 3-6 days

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 5

0

6

Honda 17238-ZE1-000

COLLAR, AIR CLEANER

$5.49

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

COLLAR, AIR CLEANER

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE8-700

SPACER, AIR CLEANER ELBOW

$5.99

$

Usually ships in 3-6 days

0

9

Honda 04101-ZE8-000

ELBOW SET, AIR CLEANER

Note: Use up to Engine SN 1029064.

$51.99

$

Usually ships in 3-6 days

0

9

Honda 17410-ZE8-013

ELBOW, AIR CLEANER

Note: Use from Engine SN 1029065.

$44.99

$

In Stock, only 1 left!

0

10

Honda 87524-ZE8-000

MARK, AIR CLEANER CAUTION

Note: Use up to Engine SN 1035000.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90012-888-000

BOLT, FLANGE (6X40)

Note: Use up to Engine SN 1034999.

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90016-ZE8-000

BOLT, FLANGE (6X45) (CT200)

Note: Use from Engine SN 1035000.

$2.99

$

In Stock, only 2 left!

0

12

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 12

0

13

Honda 90203-ZA0-800

WINGNUT (6MM) (BLACK)

Note: Use from Engine SN 1027171.

$4.49

$

In Stock, only 1 left!

0

13

Honda 90301-ZV0-000

WINGNUT
(Superseded to 90301-ZVA-000)

Note: Use up to Engine SN 1027170.

$8.49

$

Usually ships in 3-6 days

0

14

Honda 90325-044-000

NUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0
