HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) SEAT Parts Diagram

Riding Mower, Made in Japan

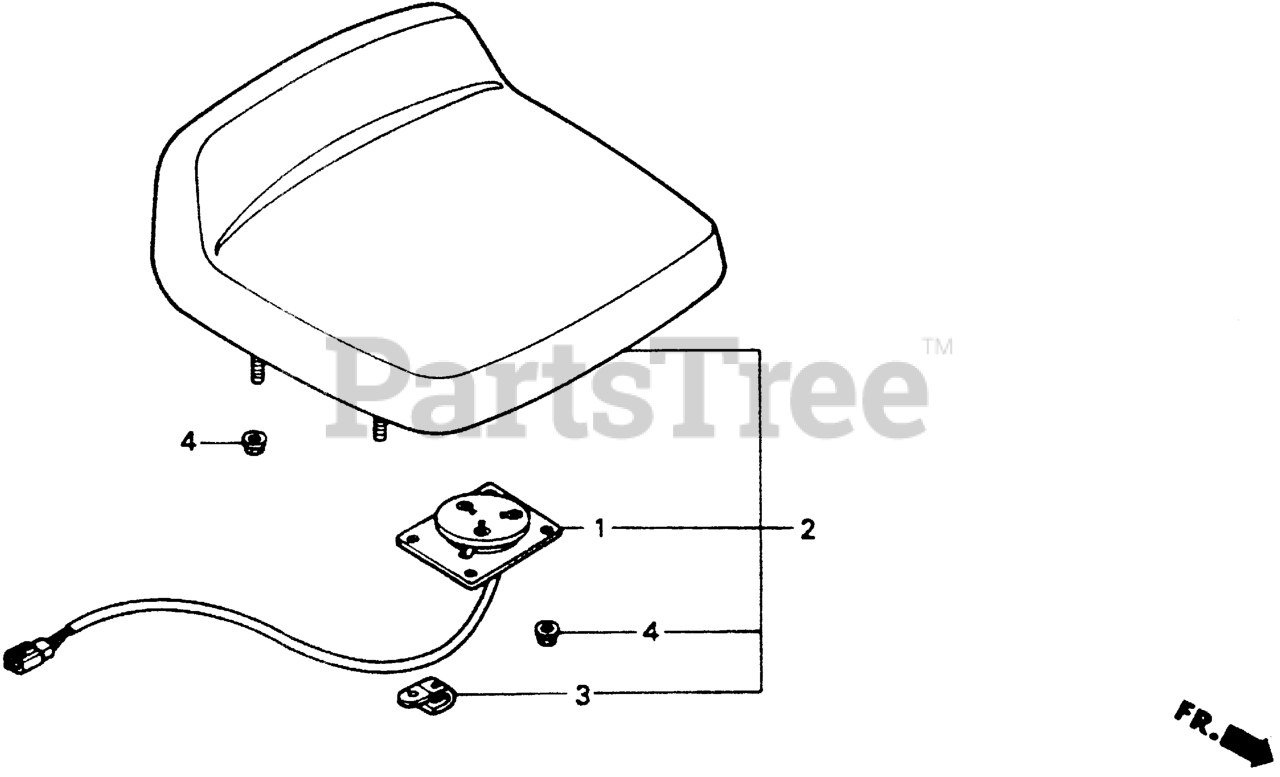

SEAT Parts Diagram

  • Title

1

Honda 35800-751-003

SWITCH ASSY., SEAT

Note: Use up to Frame SN 5102517.

$

$

Currently unavailable

1

Honda 35800-751-023

SWITCH ASSY., SEAT

Note: Use from Frame SN 5102518.

$

$

Not available

2

Honda 77200-751-003

SEAT ASSY.

Note: Use up to Frame SN 5110894.

$

$

Currently unavailable

2

Honda 77200-751-023

SEAT ASSY. (NOT AVAILABLE)

Note: Use from Frame SN 5110895.

$

$

Currently unavailable

3

Honda 91406-657-671

CLIP, WIRE HARNESS

$14.99

$

Usually ships in 3-6 days

0

4

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).

$0.99

$

In Stock, only 3 left!

0
