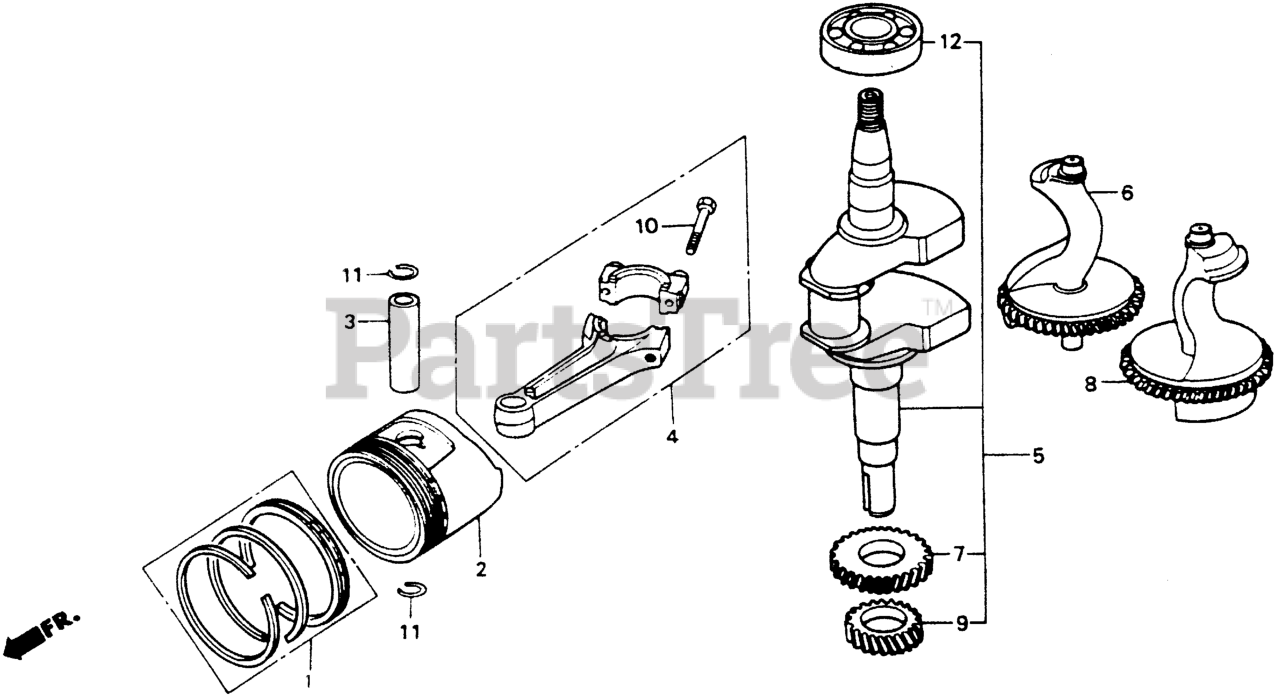

HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) PISTON Parts Diagram

Riding Mower, Made in Japan

PISTON Parts Diagram

  • Title

1

Honda 13010-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2379857).
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD) (Honda Code 2379865).
(Superseded to 13010-ZE8-013)

Note: Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13010-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (STD) (NIPPON) (NOT AVAILABLE)

Note: Use from Engine SN 1065101.

$

$

Not available

1

Honda 13010-ZE8-014

SEE PART DETAILS - SUP; RING SET, PISTON (STD)
(Superseded to 13010-ZE8-013)

Note: Use from Engine SN 1065101.

$

$

Not available

1

Honda 13011-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1065100.
(Superseded to 13011-ZE8-013)

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25) Use up to Engine SN 1065100.
(Superseded to 13011-ZE8-013)

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13011-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25) (Honda Code 3023553).

Note: (Optional) Use from Engine SN 1065101.

$

$

Not available

1

Honda 13011-ZE8-014

RING SET, PISTON (0.25)

Note: (Optional) Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13012-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1065100.

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50) Use up to Engine SN 1065100.

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13012-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50) (Honda Code 3017985).

Note: (Optional) Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13012-ZE8-014

RING SET, PISTON (0.50)

Note: (Optional) Use from Engine SN 1065101.

$

$

Currently unavailable

1

Honda 13013-ZE8-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1065100.
(Superseded to 13013-ZE8-013)

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.75) Use up to Engine SN 1065100.
(Superseded to 13013-ZE8-013)

Note: (Optional) Use up to Engine SN 1065100.

$

$

Not available

1

Honda 13013-ZE8-013

SEE PART DETAILS - PRI; RING SET, PISTON (0.75) (Honda Code 3018009).

Note: (Optional) Use from Engine SN 1065101.

$

$

Not available

1

Honda 13013-ZE8-014

SEE PART DETAILS - SUP; RING SET, PISTON (0.75) (Honda Code 3018017).

Note: (Optional) Use from Engine SN 1065101.

$

$

Currently unavailable

2

Honda 13101-ZE8-000

PISTON (STD)

Note: Use up to Engine SN 1065100.

$

$

Currently unavailable

2

Honda 13101-ZE8-010

PISTON (STD) (Honda Code 2962082).

Note: Use from Engine SN 1065101.

$

$

Not available

2

Honda 13102-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.25)

Note: (Optional)

$79.99

$

Usually ships in 3-6 days

0

2

Honda 13103-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.50)

Note: (Optional)

$72.99

$

Usually ships in 3-6 days

0

2

Honda 13104-ZE8-010

SEE PART DETAILS - PRI; PISTON (OS 0.75)

Note: (Optional)

$79.99

$

Usually ships in 3-6 days

0

3

Honda 13111-ZE2-000

PIN, PISTON (Honda Code 2025484).

$14.99

$

In Stock, only 1 left!

0

4

Honda 13200-ZE8-000

ROD ASSY., CONNECTING

$

$

Currently unavailable

4

Honda 13200-ZE8-305

ROD ASSY., CONNECTING (US) (Honda Code 2379964).

Note: (Optional)

$

$

Not available

5

Honda 13310-ZE8-700

CRANKSHAFT (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 13351-ZE8-010

SEE PART DETAILS - PRI; WEIGHT A, BALANCER (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 13352-ZE2-300

GEAR, BALANCER DRIVE (Honda Code 2028066).

$

$

Currently unavailable

8

Honda 13356-ZE8-010

SEE PART DETAILS - PRI; WEIGHT B, BALANCER (Honda Code 2546216).

$

$

Currently unavailable

9

Honda 14311-ZE2-300

GEAR, TIMING (Honda Code 2028090).

$32.99

$

Usually ships in 3-6 days

0

10

Honda 90001-ZE8-000

BOLT, CONNECTING ROD (Honda Code 2160489).

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90551-ZE1-000

CLIP, PISTON PIN (18MM) (Honda Code 2539120).

Note: Use from Engine SN 1060086.

$1.99

$

In Stock, Qty 20+

0

11

Honda 94601-18000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (18MM) (Honda Code 0317305).

Note: Use up to Engine SN 1060085.

$1.49

$

Usually ships in 3-6 days

0

12

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206) (Honda Code 0636118).

$33.99

$

In Stock, only 4 left!

0
