HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) MAINSHAFT Parts Diagram

Riding Mower, Made in Japan

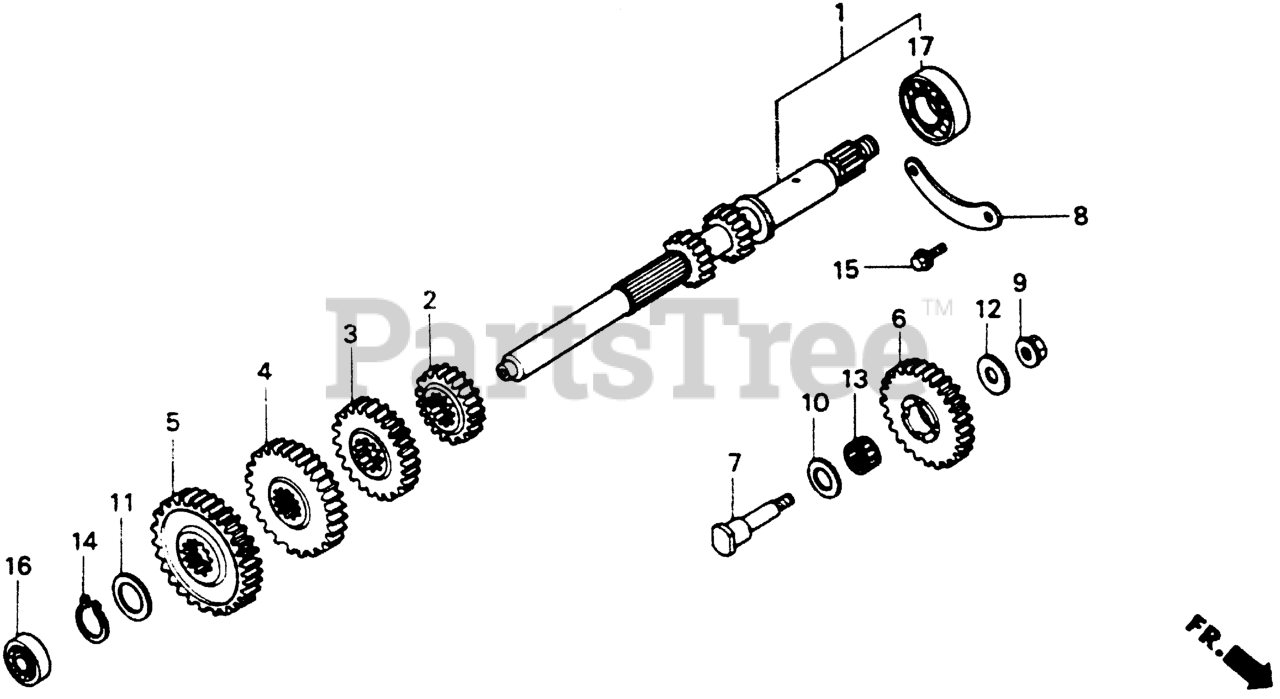

MAINSHAFT Parts Diagram

  • Title

1

Honda 23210-751-700

MAINSHAFT

$

$

Not available

2

Honda 23421-751-000

GEAR, MAINSHAFT SECOND (18T)

$

$

Not available

3

Honda 23431-751-000

GEAR, MAINSHAFT THIRD (24T)

$

$

Not available

4

Honda 23441-751-000

GEAR, MAINSHAFT FOURTH (27T)

$

$

Not available

5

Honda 23451-751-000

GEAR, MAINSHAFT FIFTH (29T)

$

$

Not available

6

Honda 23461-751-000

GEAR, REVERSE IDLE (27T)

$

$

Not available

7

Honda 23463-751-700

SHAFT, REVERSE IDLE

$14.99

$

Usually ships in 3-6 days

0

8

Honda 24551-751-000

HOLDER, BEARING

$

$

Not available

9

Honda 90002-SA7-000

NUT, SELF-LOCK (10MM)
(Superseded to 90212-671-005)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90412-187-000

WASHER, THRUST (15MM)

$2.99

$

Usually ships in 3-6 days

0

11

Honda 90453-235-000

WASHER, THRUST (16MM) (Honda Code 0147645).

$2.49

$

In Stock, only 4 left!

0

12

Honda 90509-751-000

WASHER, PLAIN (11MM)

$10.99

$

Usually ships in 3-6 days

0

13

Honda 91055-719-003

BEARING, NEEDLE (15X19X10)

$

$

Currently unavailable

14

Honda 94510-16000

SEE PART DETAILS - PRI; CIRCLIP (OUTER) (16MM) (Honda Code 0069344).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90102-751-700

BOLT, FLANGE (6X16)

$

$

Not available

16

Honda 96100-60010-00

BEARING, RADIAL BALL (6001)

$23.99

$

Usually ships in 3-6 days

0

17

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$21.99

$

In Stock, only 2 left!

0
