HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) HEIGHT ADJUSTING LEVER Parts Diagram

Riding Mower, Made in Japan

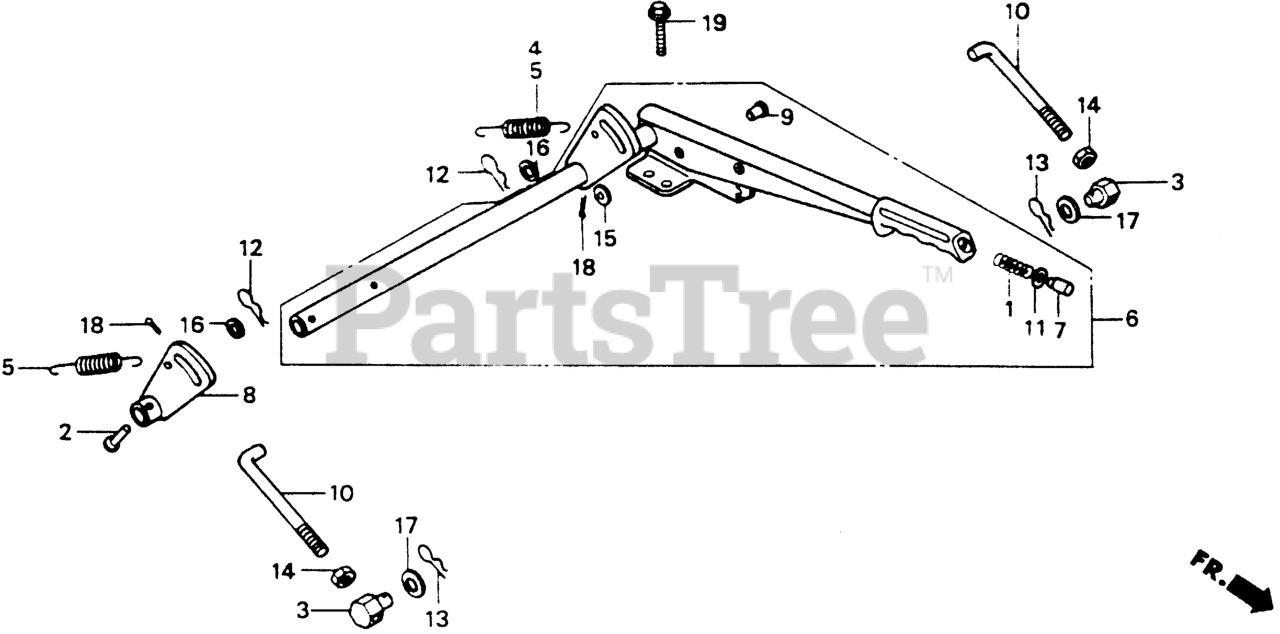

HEIGHT ADJUSTING LEVER Parts Diagram

  • Title

1

Honda 47143-671-310

SPRING, PUSH ROD

Note: Use up to Frame SN 5115034.

$

$

Not available

1

Honda 47143-750-300

SPRING, PUSH ROD

Note: Use from Frame SN 5115035.

$4.49

$

Usually ships in 3-6 days

0

2

Honda 76165-751-000

PIN (7X32.5)

$

$

Not available

3

Honda 76185-751-700

PIN, FR. LINK ADJUSTING

$20.99

$

Usually ships in 3-6 days

0

4

Honda 76193-751-000

SPRING, DECK LIFT

$

$

Not available

6

Honda 76310-751-000

SEE PART DETAILS - SUP; LEVER ASSY., HEIGHT ADJUSTING

Note: Use up to Frame SN 5114276.

$

$

Not available

6

Honda 76310-751-010

SEE PART DETAILS - SUP; LEVER ASSY., HEIGHT ADJUSTING

$

$

Not available

6

Honda 76310-751-020

LEVER ASSY., HEIGHT ADJUSTING

Note: Use up to Frame SN 5115034.

$

$

Currently unavailable

6

Honda 76310-751-030

SEE PART DETAILS - PRI; LEVER ASSY., HEIGHT ADJUSTING (NOT AVAILABLE)

Note: Use from Frame SN 5115035.

$

$

Currently unavailable

7

Honda 04405-750-020

SEE PART DETAILS - PRI; GRIP KIT, DECK ADJUST

$48.99

$

Usually ships in 3-6 days

0

7

Honda 76314-750-300

SEE PART DETAILS - SUP; KNOB, PUSH ROD
(Superseded to 04405-750-020)

$48.99

$

Usually ships in 3-6 days

0

8

Honda 76320-751-700

ARM, LIFT

$

$

Not available

9

Honda 76324-750-300

PIN, HEIGHT ADJUSTING LEVER STOPPER

$4.99

$

Usually ships in 3-6 days

0

10

Honda 76351-750-000

BAR, ADJUSTING

$

$

Not available

12

Honda 90701-750-000

PIN, LOCK (2.3MM)

$4.49

$

In Stock, only 3 left!

0

13

Honda 90703-751-000

PIN, LOCK (14MM)

$

$

Not available

14

Honda 94001-12000-0S

SEE PART DETAILS - PRI; NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

15

Honda 94102-10000

SEE PART DETAILS - PRI; WASHER, PLAIN (10MM) (Honda Code 0172551).

$0.99

$

In Stock, only 1 left!

0

16

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

17

Honda 94102-14800

WASHER, PLAIN (14MM)

$1.49

$

In Stock, only 2 left!

0

18

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

19

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0
