HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) FUEL TANK Parts Diagram

Riding Mower, Made in Japan

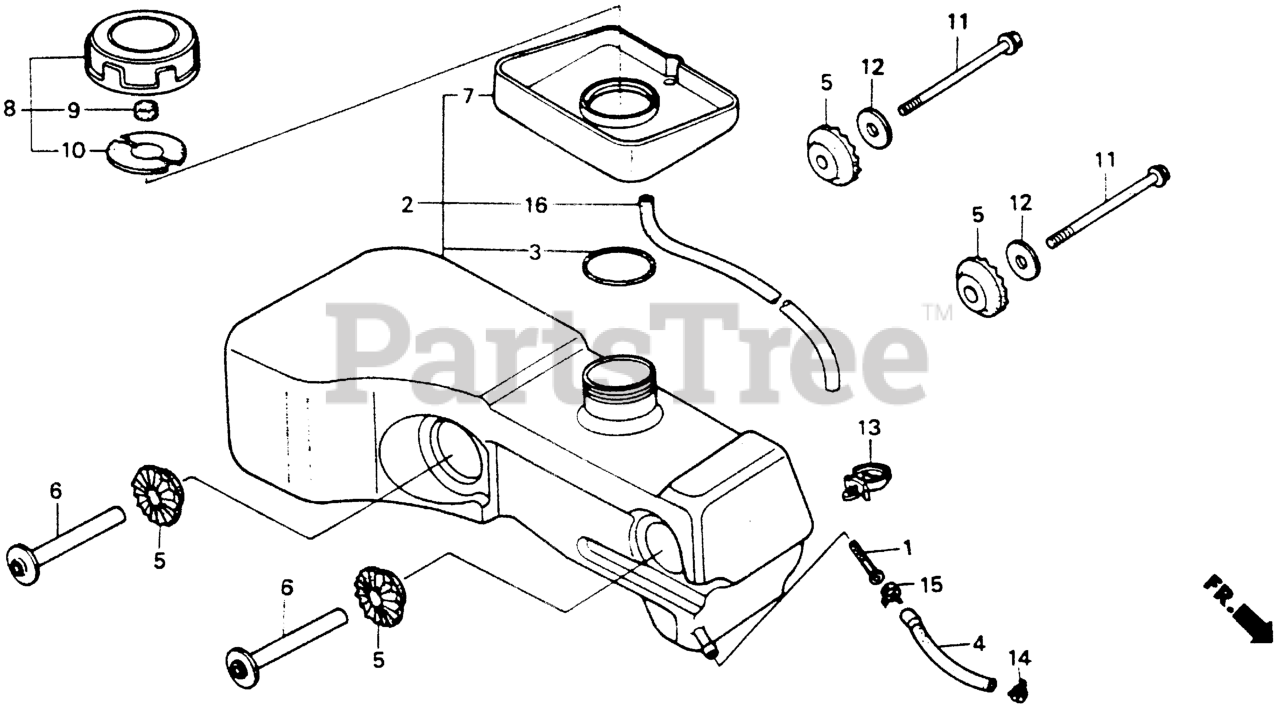

FUEL TANK Parts Diagram

  • Title
1

Honda 16952-ZE6-000

FILTER, FUEL (Honda Code 1452945).

$9.49

$

In Stock, only 2 left!

0

2

Honda 17500-751-010

SEE PART DETAILS - SUP; TANK, FUEL

Note: Use up to Frame SN 5050166.

$

$

Not available

2

Honda 17500-751-020

SEE PART DETAILS - PRI; TANK, FUEL (NOT AVAILABLE)

Note: Use from Frame SN 5050167.

$

$

Currently unavailable

3

Honda 17511-751-000

O-RING (49.5X3.1)

$4.99

$

Usually ships in 3-6 days

0

4

Honda 17512-ZE8-000

TUBE, FUEL (Honda Code 2090306).

$

$

Not available

5

Honda 17516-751-000

RUBBER, TANK MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17518-751-000

COLLAR, TANK SETTING

$

$

Currently unavailable

7

Honda 17519-751-000

SEE PART DETAILS - SUP; TRAY, FUEL
(Superseded to 17519-751-010)

Note: Use up to Frame SN 5050166.

$21.99

$

Usually ships in 3-6 days

0

7

Honda 17519-751-010

SEE PART DETAILS - PRI; TRAY, FUEL

$21.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 3307378).

$13.99

$

In Stock, only 1 left!

0

9

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90103-MB9-870

BOLT, FLANGE (8X110) (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 90456-751-000

WASHER, TANK COLLAR

$14.99

$

Usually ships in 3-6 days

0

13

Honda 90684-ZA0-601

SEE PART DETAILS - PRI; CLIP, WIRE HARNESS (Honda Code 2539138).

$4.99

$

Usually ships in 3-6 days

0

14

Honda 95002-40800-08

SEE PART DETAILS - PRI; CLIP, TUBE (D8) (Honda Code 0660811).

$2.99

$

In Stock, only 4 left!

0

15

Honda 95002-41000-08

CLAMP, TUBE (D10)

$3.49

$

Usually ships in 3-6 days

0

16

Honda 95005-91001-30M

BULK HOSE, VACUUM (12X1000) (12X340)

$24.99

$

Usually ships in 3-6 days

0
