HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) FOOT BRAKE PEDAL Parts Diagram

Riding Mower, Made in Japan

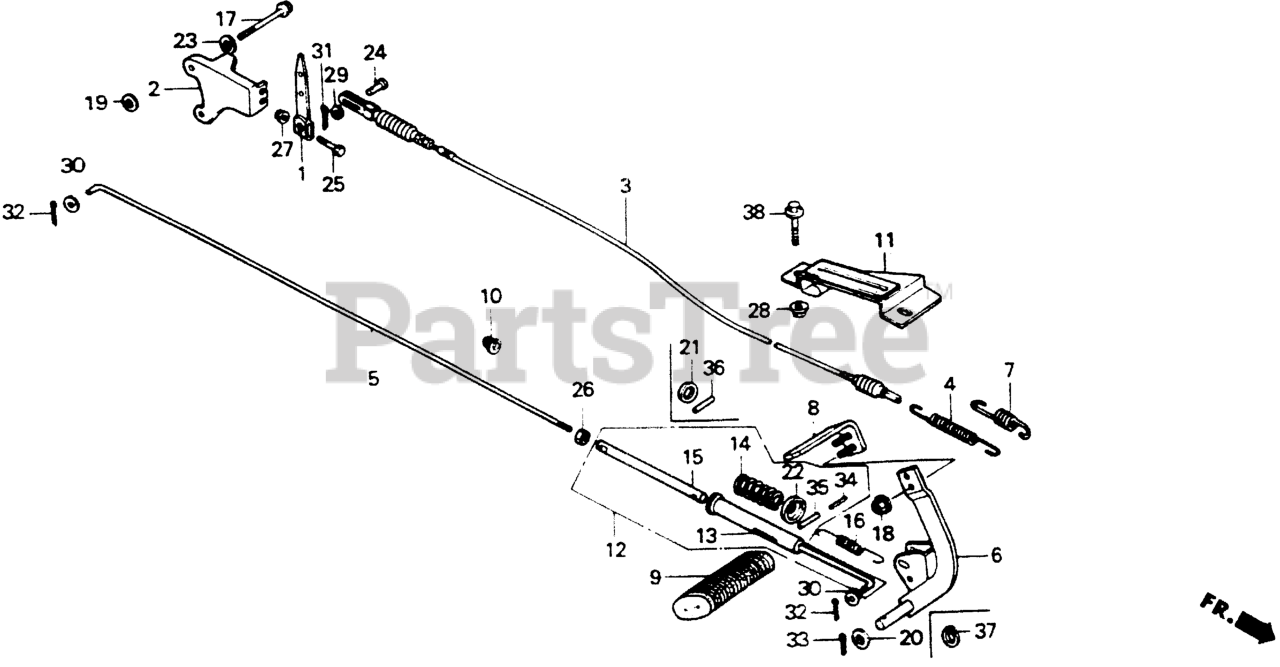

FOOT BRAKE PEDAL Parts Diagram

  • Title

1

Honda 22815-751-700

ARM, CLUTCH

$

$

Not available

2

Honda 22817-751-000

HOLDER, CLUTCH WIRE

$

$

Not available

3

Honda 24140-751-700

CABLE B, CLUTCH (BRAKE) (NOT AVAILABLE)

$34.99

$

Usually ships in 3-6 days

0

4

Honda 24147-751-000

SPRING, CLUTCH

$

$

Not available

5

Honda 46266-751-000

ROD A, FOOT BRAKE

$

$

Currently unavailable

6

Honda 46510-751-700

PEDAL, FOOT BRAKE

$

$

Not available

7

Honda 46514-750-000

SPRING, BRAKE PEDAL (NOT AVAILABLE)

$

$

Not available

8

Honda 46515-751-000

BRACKET, BRAKE PEDAL

Note: Use up to Frame SN 5100174.

$

$

Currently unavailable

8

Honda 46515-751-010

BRACKET, BRAKE PEDAL

Note: Use from Frame SN 5100175.

$

$

Not available

9

Honda 46545-751-700

RUBBER, BRAKE PEDAL

$

$

Not available

10

Honda 46547-751-000

BUSH, BRAKE ROD

$5.99

$

Usually ships in 3-6 days

0

12

Honda 47240-751-700

PIPE ASSY., FOOT BRAKE

$

$

Currently unavailable

13

Honda 47250-751-000

PIPE, FOOT BRAKE

$

$

Currently unavailable

14

Honda 47251-751-000

SPRING, BRAKE ROD SETTING

$

$

Not available

15

Honda 47253-751-000

SHAFT, SPRING SETTING

$

$

Not available

16

Honda 47255-751-000

SPRING, BRAKE DAMPER

$7.49

$

Usually ships in 3-6 days

0

17

Honda 90015-ZG0-801

BOLT, FLANGE (6X65)

$3.99

$

Usually ships in 3-6 days

0

18

Honda 90208-425-870

NUT, FLANGE (8MM) (NOT AVAILABLE)

$

$

Not available

19

Honda 90436-ME5-000

WASHER (6MM)

$

$

Not available

20

Honda 90452-751-000

WASHER, THRUST (17MM)

$4.99

$

In Stock, only 2 left!

0

22

Honda 90526-751-700

WASHER, BRAKE SPRING SETTING

$7.99

$

Usually ships in 3-6 days

0

23

Honda 90530-751-000

WASHER (6X15)

$

$

Not available

24

Honda 90755-751-010

PIN, CLUTCH JOINT

$4.49

$

Usually ships in 3-6 days

0

25

Honda 92101-05025-0A

BOLT, HEX. (5X25)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 94001-06080-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM) (Honda Code 0590455).

$1.99

$

In Stock, Qty 6

0

27

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

29

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

30

Honda 94103-05800

WASHER, PLAIN (5MM) (Honda Code 0795971).

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94201-16120

PIN, COTTER (1.6X12)

$1.49

$

In Stock, only 4 left!

0

32

Honda 94201-20150

PIN, COTTER (2.0X15)

$1.49

$

In Stock, only 2 left!

0

33

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

In Stock, Qty 20+

0

34

Honda 94305-30282

PIN, SPRING (3X28)

$1.99

$

Usually ships in 3-6 days

0

35

Honda 94305-50282

PIN, SPRING (5X28)

$2.49

$

Usually ships in 3-6 days

0
