HT-R3009 K1 SA (MA1T) - Honda Riding Mower, Made in Japan (SN: MA1T-5100001 - MA1T-9999999) FLYWHEEL Parts Diagram

Riding Mower, Made in Japan

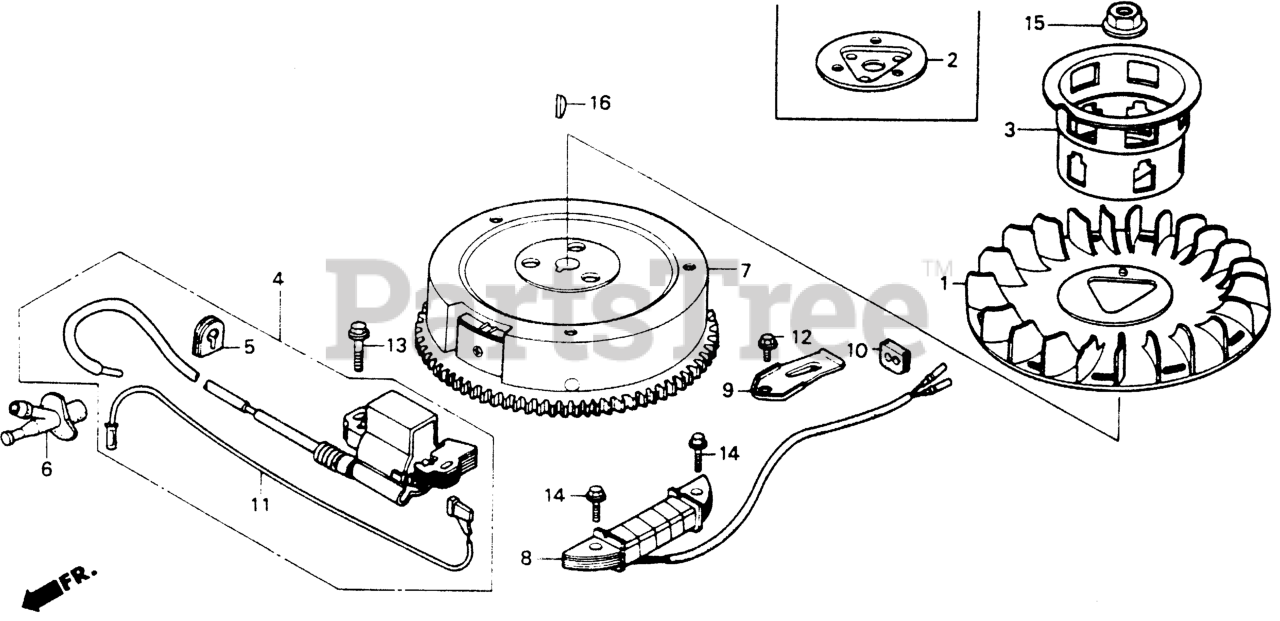

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-ZE8-000

FAN, COOLING (Honda Code 2090447).

$

$

Not available

2

Honda 19512-ZE2-000

PLATE, COOLING FAN SETTING (Honda Code 2297414).

$11.99

$

In Stock, only 1 left!

0

4

Honda 30500-ZE8-701

COIL ASSY., IGNITION (NA USE ALT:30500-ZE9-003)

$

$

Currently unavailable

5

Honda 30563-ZE8-000

GROMMET, IGNITION (Honda Code 2091205).

$6.49

$

Usually ships in 3-6 days

0

6

Honda 30700-ZE8-700

CAP ASSY., NOISE SUPPRESSOR (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31100-ZE8-804

FLYWHEEL (SEL-4POLE) (Honda Code 6048441).

$

$

Not available

8

Honda 31510-ZE8-701

COIL ASSY., CHARGE

$

$

Not available

9

Honda 31511-ZE8-000

CLAMP, WIRE

$

$

Not available

10

Honda 31512-ZE2-000

GROMMET, WIRE (Honda Code 2026557).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 36101-ZE9-L30

SEE PART DETAILS - PRI; WIRE, STOP SWITCH

$28.99

$

Usually ships in 3-6 days

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

13

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

$3.99

$

In Stock, Qty 8

0

14

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200) Use up to Engine SN 1530314.

Note: Use from Engine SN 1044841.

$3.99

$

In Stock, Qty 8

0

14

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

Note: Use up to Engine SN 1044840.

$2.99

$

In Stock, Qty 20+

0

15

Honda 90201-ZE3-790

SEE PART DETAILS - PRI; NUT, SPECIAL (16MM)

$11.99

$

Usually ships in 3-6 days

0

16

Honda 90741-ZE2-000

KEY, SPECIAL WOODRUFF (25X18) (Honda Code 2027159).

$3.99

$

In Stock, Qty 17

0
